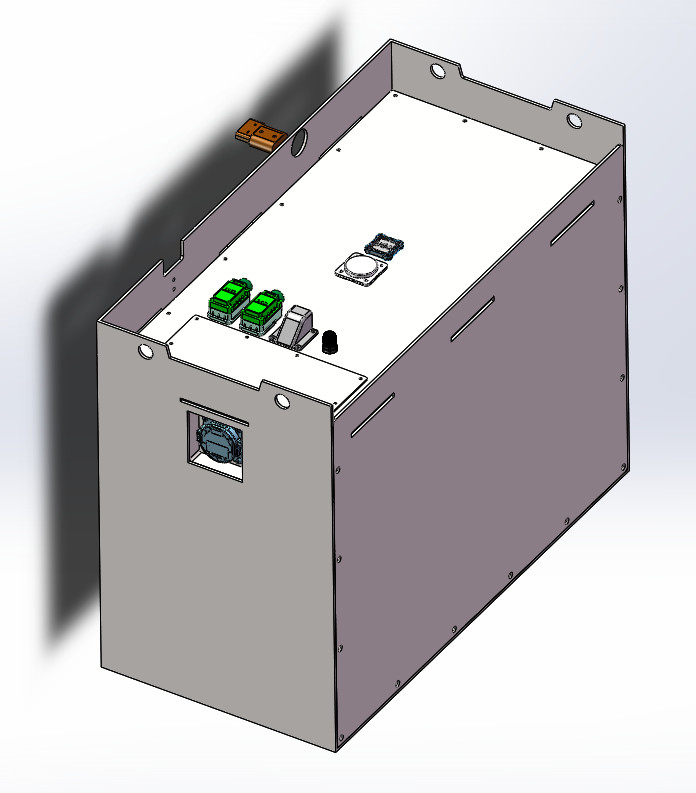

Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable

Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable

  • Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable
Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0313
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 450Ah Rated Voltage: 48V
Size Of Battery Pack: 1030mm*515mm*802mm Weight Of Battery Pack: 255kg
Combination Mode: 3P15S High Resistance: ≧50MΩ(DC500V)
Total Power Of Module: 21.6kwh Standard Cycle Life: ≥3000 Times 80%Capacity Retention
High Light:

volvo excavator battery 48V450Ah

,

Lithium Ion Battery Pack 48V

,

Excavator Battery 48V450Ah

Excavator lithium ion battery pack 48V450Ah, customizable.

Technical Parameters



NO. Item Specification Remark
1 Size 1030mm*515mm*802mm /
2 Combination mode 3P15S /
3 Rated capacity 450Ah 25±2℃,1.0C
4 Nominal voltage 48V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈255kg /
7 Total power of module 21.6kwh /
8 Maximum charging voltage 54V /
9 Maximum continuous charging current 0.5C 25±5℃
10 Discharge cut-off voltage 40.5V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥3000 times 80%Capacity retention 1C/1C 25℃




Product Description



1. This product is the standard module of EIKTO 8-core lithium iron phosphate battery, which is made of YJT40110413-150Ah lithium iron phosphate battery in series and parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. This product is the standard module of eikto 8-core lithium iron phosphate battery, which is made of yjt40110413-150ah lithium iron phosphate battery in series and parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Samples Show



Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable 1Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable 2Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
