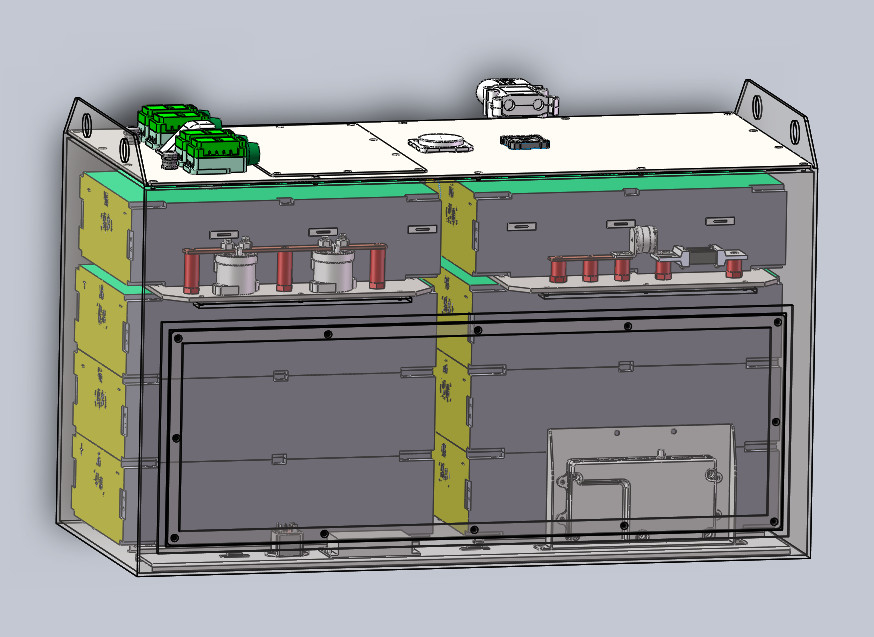

No Counterweight Lithium Power Pack Lithium Battery System 51.2v405ah

No Counterweight Lithium Power Pack Lithium Battery System 51.2v405ah

  • No Counterweight Lithium Power Pack Lithium Battery System 51.2v405ah
No Counterweight Lithium Power Pack Lithium Battery System 51.2v405ah
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CC-3068
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 405Ah Rated Voltage: 51.2V
Battery Pack Size: 950mm*430mm*600mm Weight Of Battery Pack: 275kg
Combination Mode: 3P16S High Resistance: ≧50MΩ(DC500V)
Total Power Of Module: 20.74kwh Standard Cycle Life: ≥3000 Times 80%Capacity Retention
High Light:

No Counterweight Lithium Power Pack

,

Lithium Battery System 51.2v405ah

,

Lithium Power Pack 20.74kwh

Technical Parameters



NO. Item Specification Remark
1 Size 950mm*430mm*600mm /
2 Combination mode 3P16S /
3 Rated capacity 405Ah 25±2℃,1.0C
4 Nominal voltage 51.2V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈275kg /
7 Total power of module 20.74kwh /
8 Maximum charging voltage 57.6V /
9 Maximum continuous charging current 0.75C 25±5℃
10 Discharge cut-off voltage 43.2V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥3000 times 80%Capacity retention 1C/1C 25℃




Product Description



1. Msdc11 non counterweight standard battery pack manufactured by EIKTO is the smallest size battery pack under the capacity of this specification for export.

2. This battery pack is independently developed by EIKTO. The internal battery pack is realized by our M6 aluminum module through internal series and parallel connection.

3. Battery system management and control is mainly through BMS and other related electrical components to meet the needs of customers on forklifts.

4. The battery pack is IP54 waterproof and can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the battery pack is made of many refractory materials, which greatly reduces the risk of battery use.

6. Our battery has the advantages of strong stability, high safety, long cycle life and multiple functions.



Product Advantages



1. Reliable structure: reasonable structural layout makes the overall structure of the battery pack firm and reliable;

2. Electrical reliability: reasonable electrical design layout makes the battery pack function balanced and stable;

3. Safety design: many fire-retardant and other safety layouts are arranged inside the system, and high safety lithium iron phosphate material system is adopted;

4. It can realize multiple functions: various functions can be customized according to customer needs.



Samples Show



No Counterweight Lithium Power Pack Lithium Battery System 51.2v405ah 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.No Counterweight Lithium Power Pack Lithium Battery System 51.2v405ah 1No Counterweight Lithium Power Pack Lithium Battery System 51.2v405ah 2No Counterweight Lithium Power Pack Lithium Battery System 51.2v405ah 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
