25Ah 3.2V Lithium Battery Square Aluminum Shell LFP

25Ah 3.2V Lithium Battery Square Aluminum Shell LFP

  • 25Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP
  • 25Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP
  • 25Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP
  • 25Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP
25Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT19124133-25Ah
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Less than 14 days within 10,000 pieces; more than 10,000 pieces requires negotiation.
Payment Terms: EFT;Letter of Credit
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT19124133-25Ah
Rated Capacity: 25Ah Rated Voltage: 3.2V
Battery Pack Size: 19mm*124mm*133mm Battery Pack Weight: 605g
High Light:

25Ah 3.2 v lithium battery

,

lithium iron phosphate cells

,

3.2 v lithium battery 25Ah

25Ah 3.2V Lithium Battery Square Aluminum Shell EIKTO LFP

Technical Parameters



NO. Item Specification Remark
1 Dimension 19mm*124mm*133mm Fig.1, 50%SOC,200kgf
2 Rated Capacity 25Ah 25±2℃,1.0C
3 Nominal Voltage 3.2V /
4 AC Initial Impedance ≤1.8mΩ

25±2℃

AC 1KHz measured

5 Cell Weight ≈605g /
6 Energy Density 134 /
7 Energy Density 248 /
8 Max Charging Voltage 3.6V /
9 Maximum Continuous Charging Current 1.5C 25±5℃
10 Discharge Cut-off Voltage 2.5V /
11 Max. Continuous Discharging Current 1.5C 25±5℃
12 Standard cycle life ≥3000 times 80%Capacity retention 1C/1C 25℃






Product Description



1.Winding process, terminal post heads on same side.

2.Square aluminum shell.

3.Lithium iron phosphate cathode material.

4.CE/UL certified.

5.High rate performance battery.



Product Advantages



1.3.2V25Ah square lithium iron phosphate battery with long cycle life, high safety and good stability.

2.Lithium iron phosphate battery, more stable and safer.

3.Aluminum shell material, lighter weight.

4.Laser welding, higher efficiency.

5.Winding process, high energy density.

6.The charging speed is fast with a special charger, the battery can be fully charged within 40 minutes.

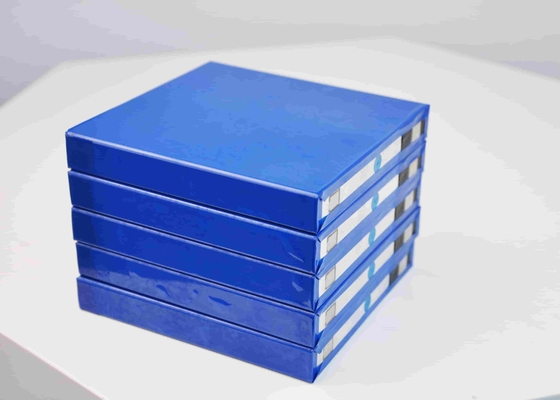

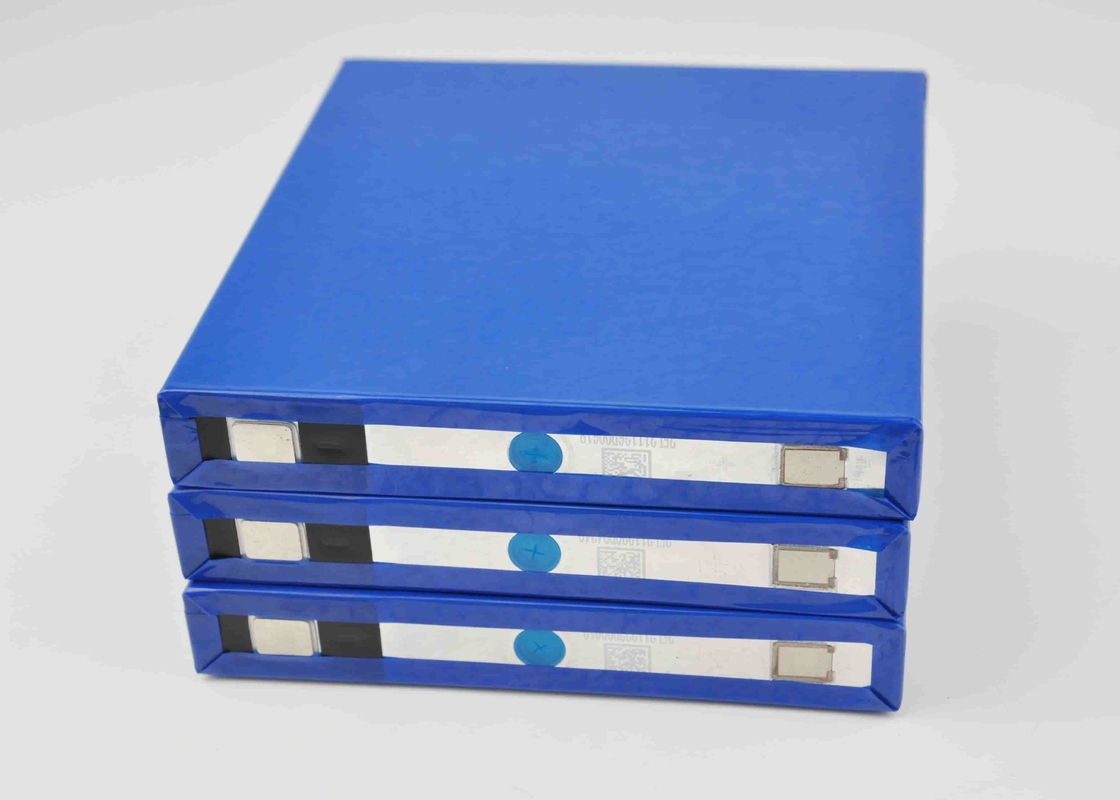

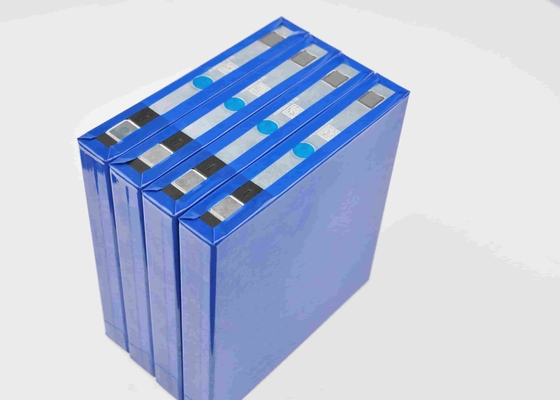

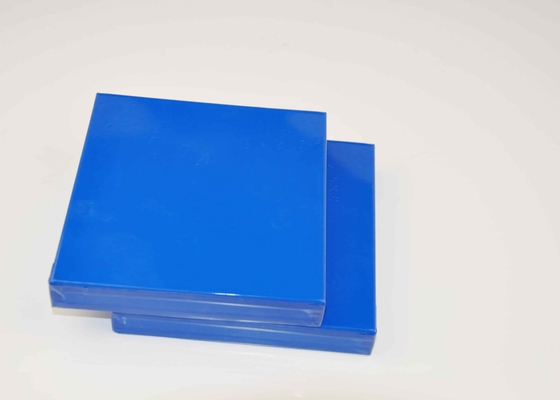

Samples Show





25Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP 025Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP 125Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP 2







Application



25Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP 325Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP 425Ah 3.2V Lithium Battery  Square Aluminum Shell  LFP 5



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Professional logistic agent.



Competitive Advantages



1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
