3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell

3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell

  • 3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell
  • 3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell
  • 3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell
  • 3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell
3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT52145405-270Ah
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Less than 14 days within 10,000 pieces; more than 10,000 pieces requires negotiation.
Payment Terms: EFT;Letter of Credit
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT52145405-270Ah
Rated Capacity: 270Ah Rated Voltage: 3.2V
Battery Pack Size: 52.8mm*145.5mm*405mm Battery Pack Weight: 5800g
High Light:

3.2V270Ah Lithium Battery Cell

,

EIKTO Lithium Battery

,

Lithium Battery Cell LFP

Battery Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Power Sored 3.2V270Ah



Technical Parameters



NO. Item Specification Remark
1 Dimension 52.8mm*145.5mm*405mm Fig.1, 50%SOC,200kgf
2 Rated Capacity 270Ah 25±2℃,1.0C
3 Nominal Voltage 3.2V /
4 AC Initial Impedance ≤0.6mΩ

25±2℃

AC 1KHz measured

5 Cell Weight ≈5800g /
6 Energy Density(Wh/kg) 150 /
7 Energy Density(Wh/L) 279 /
8 Max Charging Voltage 3.6V /
9 Maximum Continuous Charging Current 1C 25±5℃
10 Discharge Cut-off Voltage 2.5V /
11 Max. Continuous Discharging Current 1C 25±5℃
12 Standard cycle life ≥4000times 80%Capacity retention 1C/1C 25℃


Product Description



1.terminal post heads on both sides of the battery.

2.CE/UL certified.

3.Winding process of anode and cathode electrode slice.

4.3000 charge & discharge cycles.

5.Lithium iron phosphate is the cathode material.



Product Advantages



1.3.2V270Ah square lithium iron phosphate battery is designed with full electrode slice structure.

2.Terminal post on both sides, lower temperature rise and uniform temperature field.

3.More sufficient for current flow, making the battery safer.

4.Energy saving, environmental friendly, pollution-free, no mercury, cadmium and other heavy metal harmful substances.

5.Long cycle life, high safety and good stability.

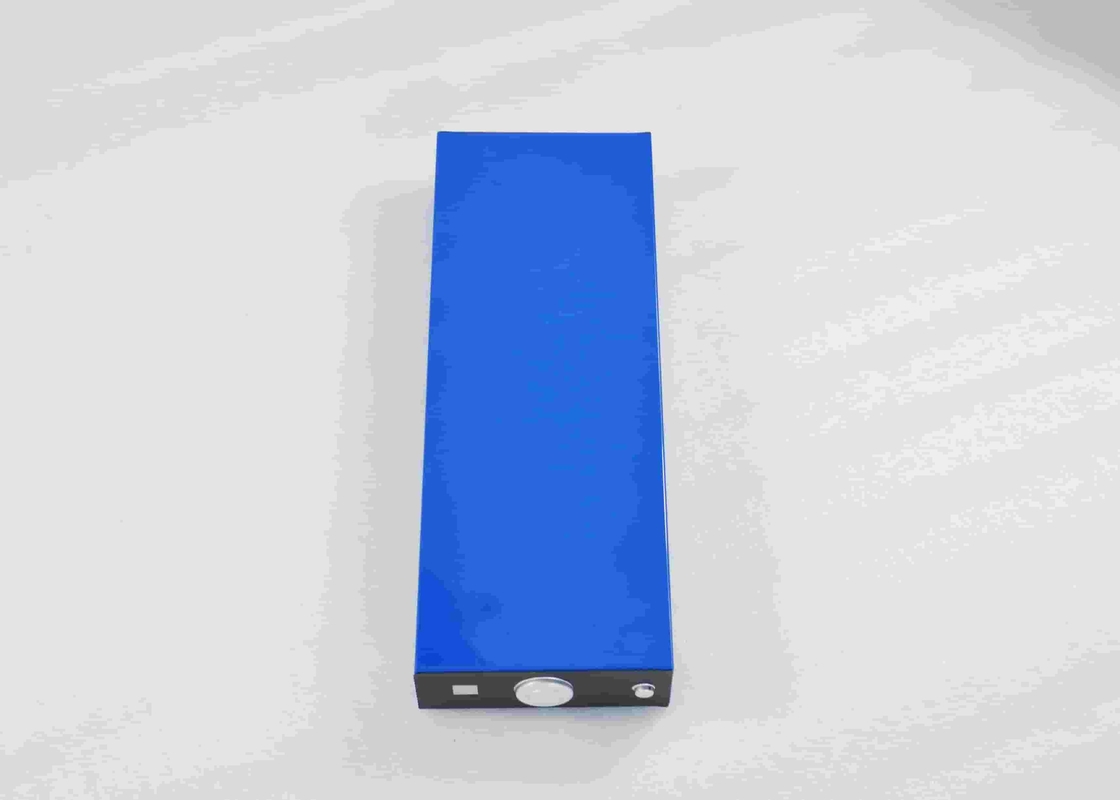

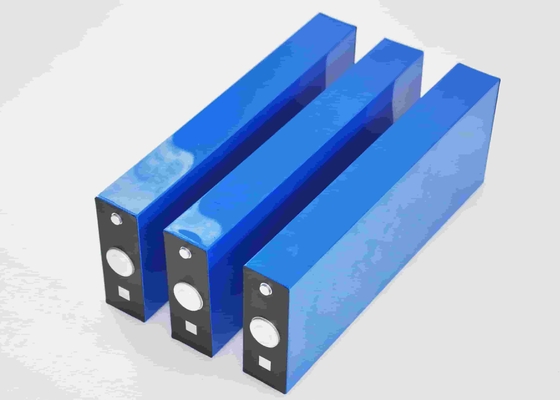

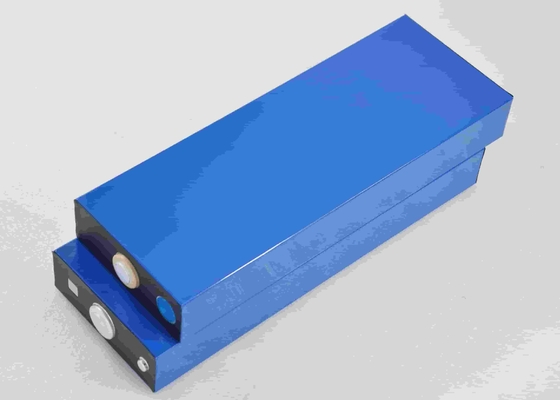

Samples Show



3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell 03.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell 13.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell 2



Application



3.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell 33.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell 43.2V270Ah Lithium Battery Cell LFP 52.8mmx145.5mmx405mm Square Aluminum Shell 5





Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
