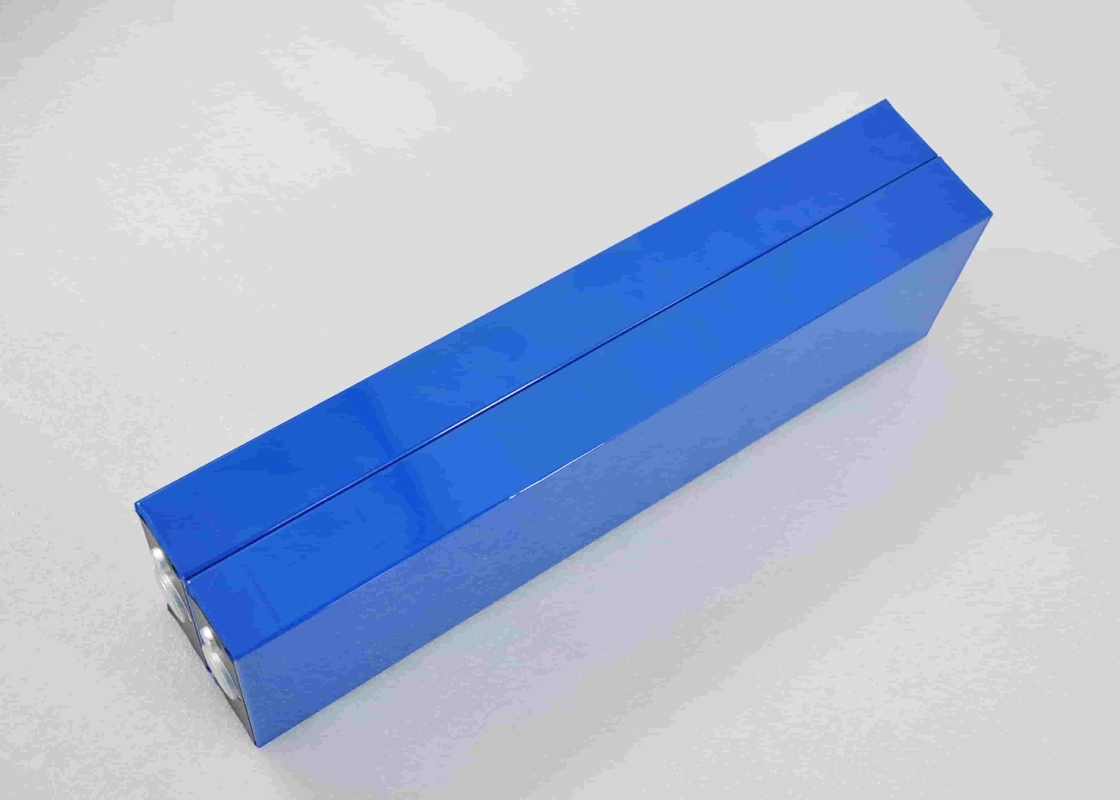

3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO Power Sored Energy

3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO Power Sored Energy

  • 3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy
  • 3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy
  • 3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy
  • 3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy
3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT40110413-135Ah
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Less than 14 days within 10,000 pieces; more than 10,000 pieces requires negotiation.
Payment Terms: EFT;Letter of Credit
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT40110413-135Ah
Rated Capacity: 135Ah Rated Voltage: 3.2V
Battery Pack Size: 40mm*110mm*401mm Battery Pack Weight: 3350g
High Light:

3.2V135Ah Lithium Battery Cell

,

EIKTO Power Sored Energy

,

3350g Lithium Battery Cell

Battery Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Power Sored energy 3.2V135Ah



Technical Parameters



NO. Item Specification Remark
1 Dimension 40mm*110mm*401mm Fig.1, 50%SOC,200kgf
2 Rated Capacity 135Ah 25±2℃,1.0C
3 Nominal Voltage 3.2V /
4 AC Initial Impedance ≤0.6mΩ

25±2℃

AC 1KHz measured

5 Cell Weight ≈3350g /
6 Energy Density 129 /
7 Energy Density 239 /
8 Max Charging Voltage 3.6V /
9 Maximum Continuous Charging Current 1.5C 25±5℃
10 Discharge Cut-off Voltage 2.5V /
11 Max. Continuous Discharging Current 1.5C 25±5℃
12 Standard cycle life ≥4000times 80%Capacity retention 1C/1C 25℃








Product Description

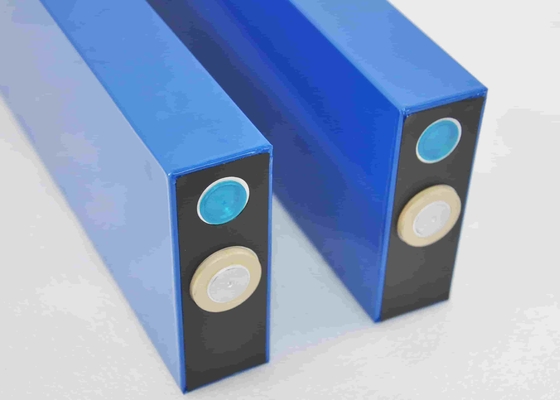

1.terminal post heads on both sides of the battery.

2.CE/UL certified.

3.Winding process of anode and cathode electrode slice.

4.3000 charge & discharge cycles.

5.Lithium iron phosphate is the cathode material.



Product Advantages



1.3.2V135Ah square lithium iron phosphate battery.

2.EIKTO Lithium iron phosphate battery, with the structure of terminal post on both sides, conducive to heat dissipation, lower temperature rise and more uniform.

3.The battery adopts winding process with high energy density.

4.Energy saving and environmental friendly, pollution-free, no mercury, cadmium and other heavy metal harmful substances.

5.Technology of slowing self discharge to reduce power loss.

6.The charging speed is fast with a special charger, the battery can be fully charged within 40 minutes.

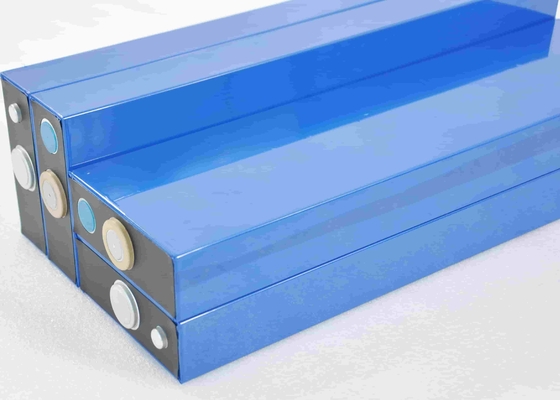

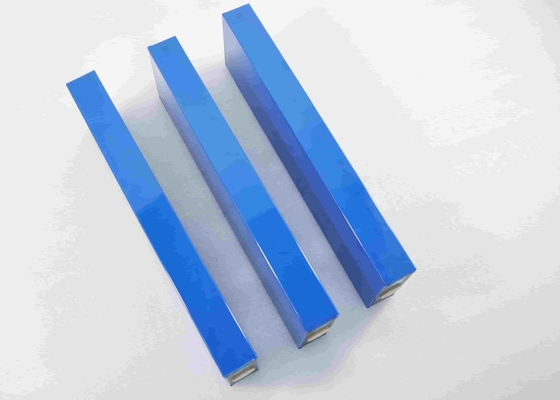

Samples Show



3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy 03.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy 13.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy 2



Application



3.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy 33.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy 43.2V135Ah Lithium Battery Cell Square Aluminum Shell EIKTO  Power Sored  Energy 5



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
