Lithium Iron Phosphate EIKTO Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm

Lithium Iron Phosphate EIKTO Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm

  • Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm
  • Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm
  • Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm
  • Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm
Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT52145405-280Ah
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Less than 14 days within 10,000 pieces; more than 10,000 pieces requires negotiation.
Payment Terms: EFT;Letter of Credit
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT52145405-280Ah
Rated Capacity: 280Ah Rated Voltage: 3.2V
Battery Pack Size: 52.8mm*145.5mm*405mm Battery Pack Weight: 5940g
High Light:

Lithium Battery 3.2V280Ah

,

Lithium Iron Phosphate 280Ah

,

UN38.3 Lithium Battery

Battery Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Power Sored 3.2V280Ah



Technical Parameters



NO. Item Specification Remark
1 Dimension 52.8mm*145.5mm*405mm Fig.1, 50%SOC,200kgf
2 Rated Capacity 280Ah 25±2℃,1.0C
3 Nominal Voltage 3.2V /
4 AC Initial Impedance ≤0.6mΩ

25±2℃

AC 1KHz measured

5 Cell Weight ≈5940g /
6 Energy Density(Wh/kg) 155 /
7 Energy Density(Wh/L) 290 /
8 Max Charging Voltage 3.6V /
9 Maximum Continuous Charging Current 1.5C 25±5℃
10 Discharge Cut-off Voltage 2.5V /
11 Max. Continuous Discharging Current 1.5C 25±5℃
12 Standard cycle life ≥4000times 80%Capacity retention 1C/1C 25℃



Product Description



1.terminal post heads on both sides of the battery.

2.CE/UL certified.

3.Winding process of anode and cathode electrode slice.

4.3000 charge & discharge cycles.

5.Lithium iron phosphate is the cathode material.



Product Advantages



1.3.2v280ah square lithium iron phosphate battery, with full electrode slice structure design, has more sufficient for current flow.

2.Long cycle life, high safety and good stability.

3.Aluminum shell material, lighter weight, more stable structure, conducive to heat dissipation.

4.No mercury, cadmium and other heavy metal harmful substances.

5.The battery is resistant to high temperature, and its thermal peak can reach 350 to 500 ℃.

6.The charging speed is fast with a special charger, the battery can be fully charged within 40 minutes.

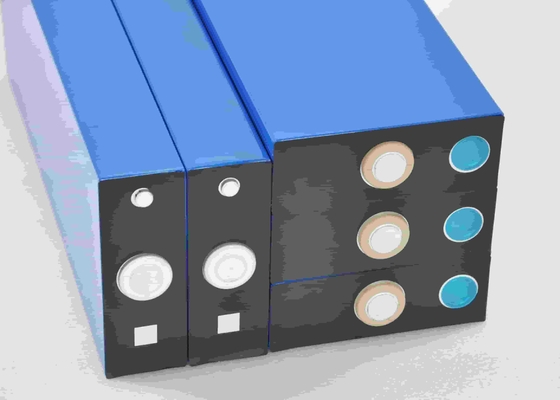

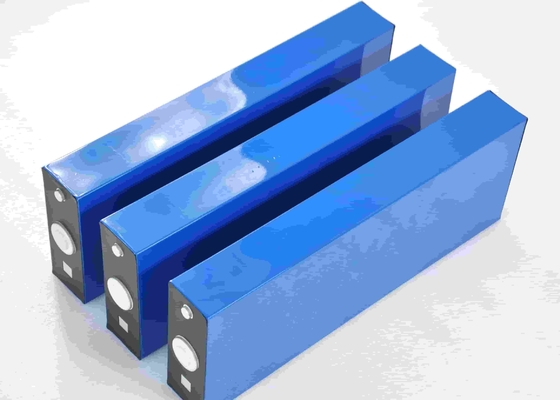

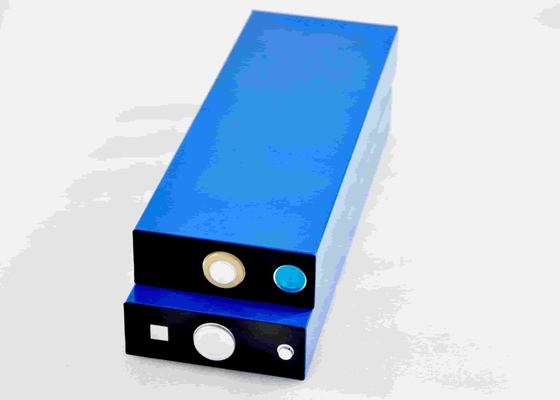

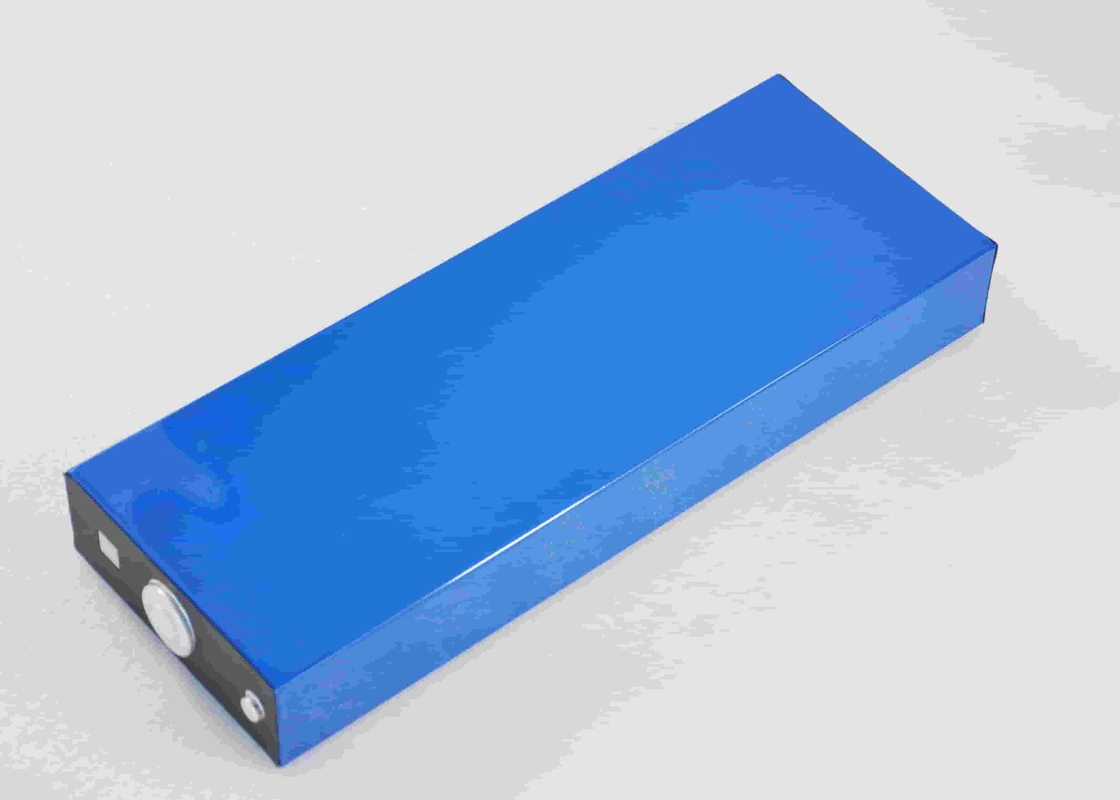

Samples Show



Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm 0Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm 1Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm 2



Application



Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm 3Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm 4Lithium Iron Phosphate EIKTO  Lithium Battery 3.2V280Ah 52.8mmx145.5mmx05mm 5



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
