EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm

EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm

  • EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm
  • EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm
  • EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm
  • EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm
EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT40110413-150Ah
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Less than 14 days within 10,000 pieces; more than 10,000 pieces requires negotiation.
Payment Terms: EFT;Letter of Credit
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT40110413-150Ah
Rated Capacity: 150Ah Rated Voltage: 3.2V
Battery Pack Size: 40mm*110mm*401mm Battery Pack Weight: 3500g
High Light:

LFP Lithium Battery Cell

,

lithium ion cell 150Ah

,

Lithium Battery Cell 3.2V150Ah

Battery Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Power Sored 3.2V150Ah



Technical Parameters



NO. Item Specification Remark
1 Dimension 40mm*110mm*401mm Fig.1, 50%SOC,200kgf
2 Rated Capacity 150Ah 25±2℃,1.0C
3 Nominal Voltage 3.2V /
4 AC Initial Impedance ≤0.6mΩ

25±2℃

AC 1KHz measured

5 Cell Weight ≈3500g /
6 Energy Density 137 /
7 Energy Density 266 /
8 Max Charging Voltage 3.6V /
9 Maximum Continuous Charging Current 1.5C 25±5℃
10 Discharge Cut-off Voltage 2.5V /
11 Max. Continuous Discharging Current 1.5C 25±5℃
12 Standard cycle life ≥4000times 80%Capacity retention 1C/1C 25℃


Product Description



1.terminal post heads on both sides of the battery.

2.CE/UL certified.

3.Winding process of anode and cathode electrode slice.

4.3000 charge & discharge cycles.

5.Lithium iron phosphate is the cathode material.



Product Advantages



1.3.2V150Ah square lithium iron phosphate battery, more stable and safer

2.The charging speed is fast with a special charger, the battery can be fully charged within 40 minutes.

3.Aluminum shell material, lighter weight

4.Laser welding, higher efficiency

5.Winding process, high energy density

6.Long cycle life, high safety and good stability

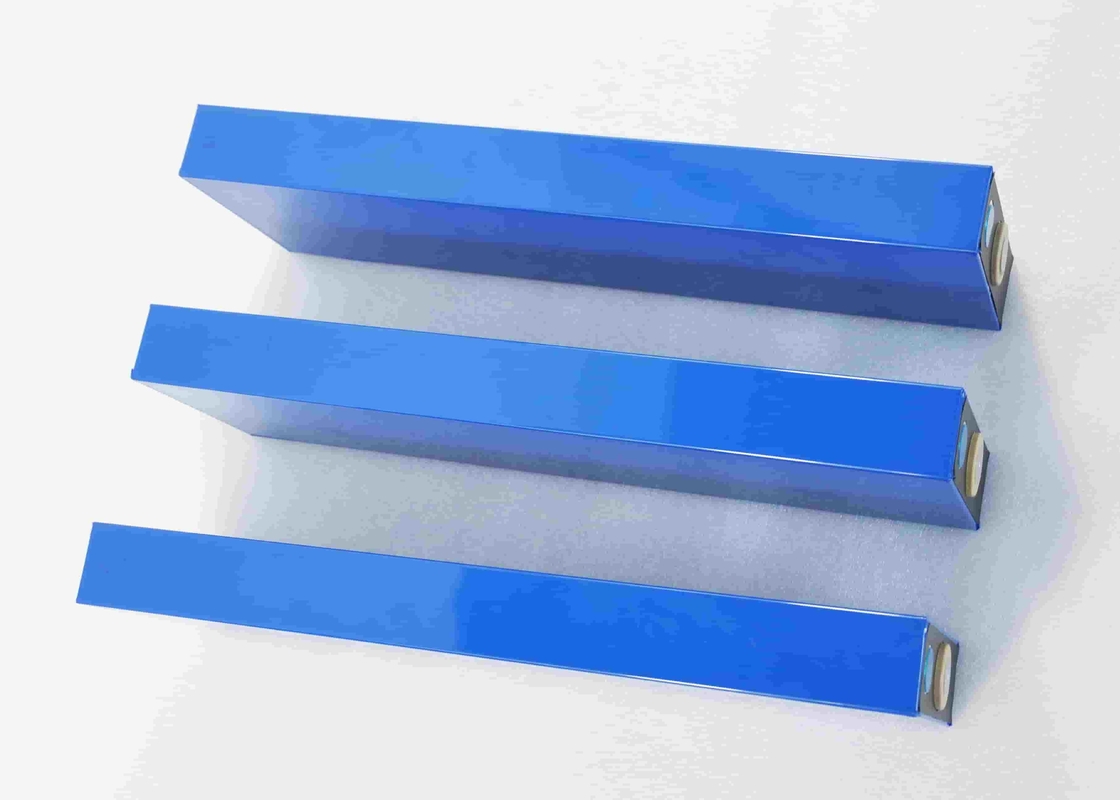

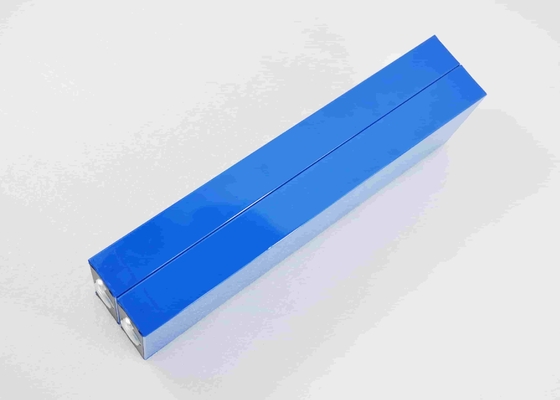

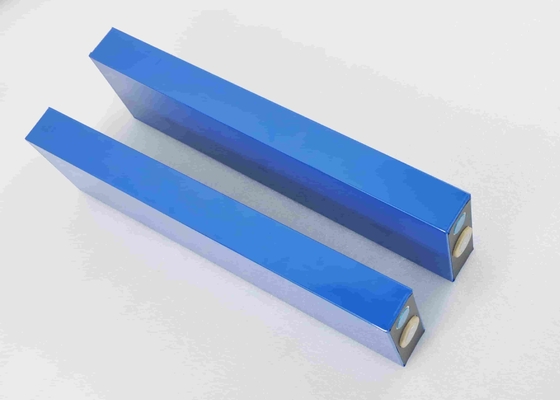

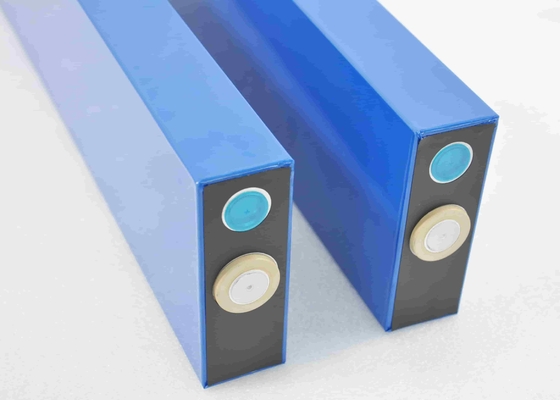

Samples Show



EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm 0EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm 1EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm 2



Application



EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm 3EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm 4EIKTO LFP Lithium Battery Cell 3.2V150Ah Aluminum Shell 40mmx110mmx401mm 5





Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
