3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah EIKTO Power 3.6Kg

3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah EIKTO Power 3.6Kg

  • 3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg
  • 3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg
  • 3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg
  • 3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg
3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT40110413-175Ah
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Less than 14 days within 10,000 pieces; more than 10,000 pieces requires negotiation.
Payment Terms: EFT;Letter of Credit
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT40110413-175Ah
Rated Capacity: 175Ah Rated Voltage: 3.2V
Battery Pack Size: 40mm*110mm*401mm Battery Pack Weight: 3600g
High Light:

3.2V175Ah li ion battery cell

,

lithium phosphate cell 3.6Kg

,

li ion battery cell 175Ah

Battery Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Power Sored 3.2V175Ah



Technical Parameters



NO. Item Specification Remark
1 Dimension 40mm*110mm*401mm Fig.1, 50%SOC,200kgf
2 Rated Capacity 175Ah 25±2℃,1.0C
3 Nominal Voltage 3.2V /
4 AC Initial Impedance ≤0.6mΩ

25±2℃

AC 1KHz measured

5 Cell Weight ≈3600g /
6 Energy Density 155 /
7 Energy Density 310 /
8 Max Charging Voltage 3.6V /
9 Maximum Continuous Charging Current 1.5C 25±5℃
10 Discharge Cut-off Voltage 2.5V /
11 Max. Continuous Discharging Current 1.5C 25±5℃
12 Standard cycle life ≥4000times 80%Capacity retention 1C/1C 25℃



Product Description



1.terminal post heads on both sides of the battery.

2.CE/UL certified.

3.Winding process of anode and cathode electrode slice.

4.3000 charge & discharge cycles.

5.Lithium iron phosphate is the cathode material.



Product Advantages



1.3.2V175Ah square lithium iron phosphate battery.

2.Aluminum alloy shell design, high mechanical strength, conductive to heat dissipation.

3.Structure of terminal post on both sides is conducive to heat dissipation, lower temperature rise and more uniform.

4.The battery adopts winding process with high energy density.

5.Long cycle life, high safety and good stability.

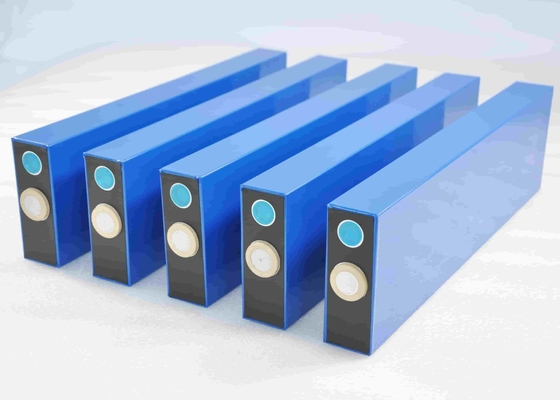

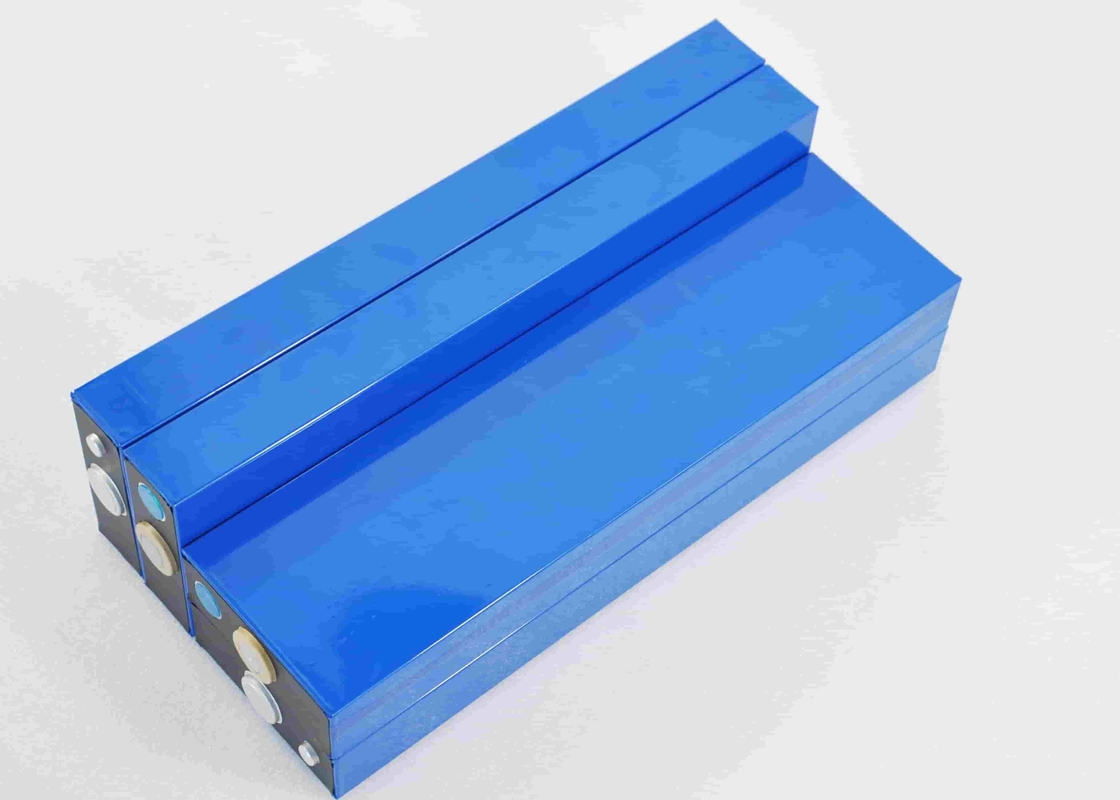

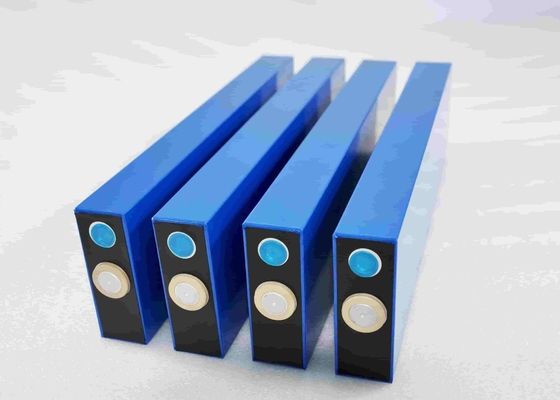

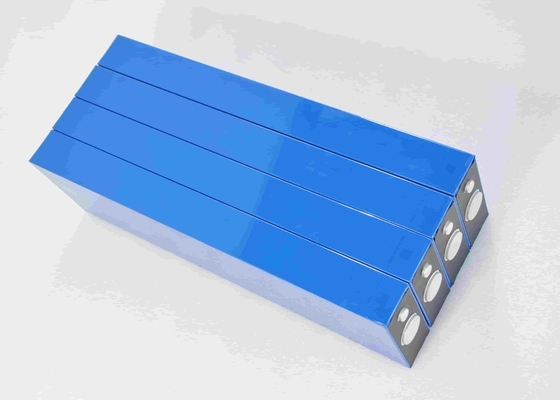

Samples Show



3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg 03.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg 13.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg 2



Application



3.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg 33.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg 43.2V175Ah Li Ion Battery Cell Stored Energy 175Ah  EIKTO Power 3.6Kg 5





Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages

1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
