80v300ah Lithium Iron Phosphate Battery Pack Excavator Lithium Battery

80v300ah Lithium Iron Phosphate Battery Pack Excavator Lithium Battery

  • 80v300ah Lithium Iron Phosphate Battery Pack Excavator Lithium Battery
80v300ah Lithium Iron Phosphate Battery Pack Excavator Lithium Battery
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-BZ-P075
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 300Ah Rated Voltage: 80V
Product Size: 1030mm*550mm*750mm Product Weight: 900kg
Combination Mode: 2P15S+2P10S High Resistance: ≧50MΩ(DC500V)
Total Power Of Module: 24kwh Standard Cycle Life: ≥3000 Times 80%Capacity Retention
High Light:

Lithium Iron Phosphate Battery Pack

,

excavator lithium battery

,

80v300ah Lithium Iron Phosphate Battery

Technical Parameters



NO. Item Specification Remark
1 Size 1030mm*550mm*750mm /
2 Combination mode 2P15S+2P10S /
3 Rated capacity 300Ah 25±2℃,1.0C
4 Nominal voltage 80V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight 900kg /
7 Total power of module 24kwh /
8 Maximum charging voltage 90V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 57.5V /
11 Maximum continuous discharge current 2C 25±5℃
12 Standard cycle life ≥3000 times 80%Capacity retention 1C/1C 25℃



Product Description



1. This product is a plastic shell standard module of EIKTO 10 core three-layer + two-layer lithium iron phosphate battery, which is made of YJT40110413-150Ah lithium iron phosphate battery in series and parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. High safety performance: the P-O bond in lithium iron phosphate crystal is stable and difficult to decompose. Even at high temperature or overcharge, it will not collapse and heat like lithium cobalt oxide or form strong oxidizing substances, so it has good safety;

2. Long service life: lithium iron phosphate battery refers to a lithium-ion battery using lithium iron phosphate as the cathode material. The cycle life of long-life lead-acid battery is about 300 times, up to 500 times, while the cycle life of lithium iron phosphate power battery is more than 2000 times, and the standard charging (5-hour rate) can be used for 2000 times;

3. Good high temperature performance: the peak electric heating value of lithium iron phosphate can reach 350 ℃ -500 ℃, while that of lithium manganate and lithium cobalt oxide is only about 200 ℃. The working temperature range is wide (-20c--75c) and has high temperature resistance. The peak value of lithium iron phosphate electric heating can reach 350 ℃ -500 ℃, while lithium manganate and lithium cobalt oxide are only about 200 ℃;

4. Large capacity: when the battery works under the condition of full charge, the capacity will quickly fall below the rated capacity. This phenomenon is called memory effect. For example, nickel hydrogen and nickel cadmium batteries have memory, while lithium iron phosphate batteries do not. No matter what state the battery is in, it can be used as soon as it is charged, and there is no need to discharge it before charging;

5. Environmental protection: lithium iron phosphate batteries are generally considered to be free of any heavy metals and rare metals (nickel metal hydride batteries need rare metals), non-toxic (SGS certified), pollution-free, and in line with European ROHS regulations.

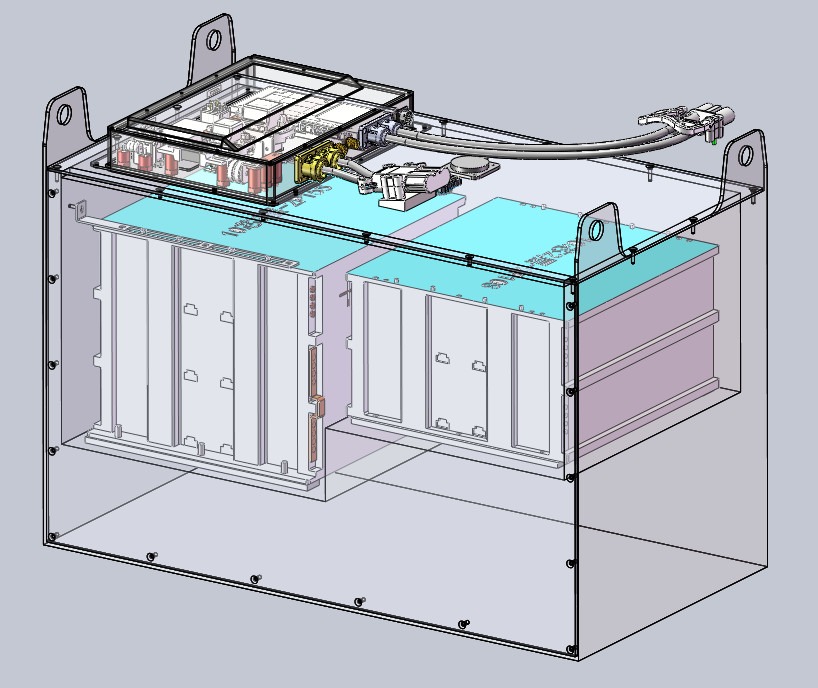

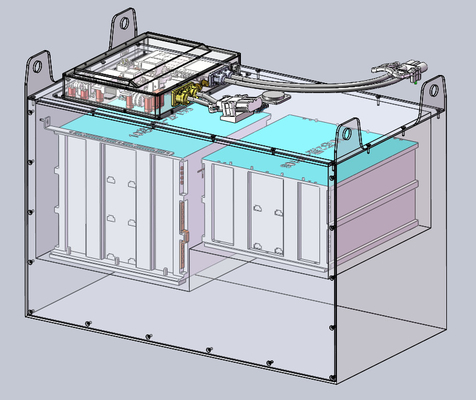

Samples Show



80v300ah Lithium Iron Phosphate Battery Pack Excavator Lithium Battery 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.80v300ah Lithium Iron Phosphate Battery Pack Excavator Lithium Battery 180v300ah Lithium Iron Phosphate Battery Pack Excavator Lithium Battery 280v300ah Lithium Iron Phosphate Battery Pack Excavator Lithium Battery 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
