25.6V 210Ah Excavator Battery Lithium Battery 700mmx170mmx564mm

25.6V 210Ah Excavator Battery Lithium Battery 700mmx170mmx564mm

  • 25.6V 210Ah Excavator Battery Lithium Battery 700mmx170mmx564mm
25.6V 210Ah Excavator Battery Lithium Battery 700mmx170mmx564mm
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CC-3230
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 210Ah Rated Voltage: 25.6V
Size Of Battery Pack: 700mm*170mm*564mm Weight Of Battery Pack: 85kg
Combination Mode: 7P8S High Resistance: ≧50MΩ(DC500V)
Total Power Of Module: 5.376kwh Standard Cycle Life: ≥4000 Times 80%Capacity Retention
High Light:

210Ah Excavator Battery

,

210Ah lithium phosphate battery

,

25.6V Excavator Battery

25.6V 210Ah Excavator Lithium Battery

Technical Parameters



NO. Item Specification Remark
1 Size 700mm*170mm*564mm /
2 Combination mode 7P8S /
3 Rated capacity 210Ah 25±2℃,1.0C
4 Nominal voltage 25.6V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈85kg /
7 Total power of module 5.376kwh /
8 Maximum charging voltage 28.8V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 21.6V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥4000 times

80%Capacity retention

1C/1C 25℃



Product Description



1. This product is the standard module of EIKTO 7P8S lithium iron phosphate battery, which is made of 30Ah lithium iron phosphate battery in series and parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength, waterproof and dustproof grade IP54;

2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;

3. Safety design: high safety lithium iron phosphate material system is adopted, which makes charging fast and safe;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.

6. It has remote monitoring, real-time viewing of battery information, and remote upgrading of battery



Samples Show

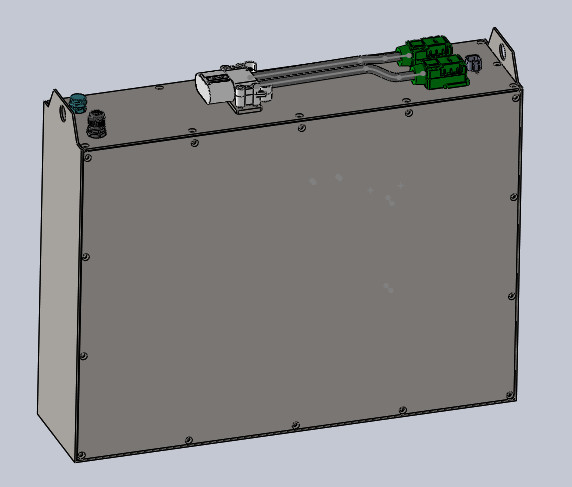

25.6V 210Ah Excavator Battery Lithium Battery 700mmx170mmx564mm 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.25.6V 210Ah Excavator Battery Lithium Battery 700mmx170mmx564mm 125.6V 210Ah Excavator Battery Lithium Battery 700mmx170mmx564mm 225.6V 210Ah Excavator Battery Lithium Battery 700mmx170mmx564mm 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
