25.6v200ah Excavator Battery Diesel Replacement Lithium Battery

25.6v200ah Excavator Battery Diesel Replacement Lithium Battery

  • 25.6v200ah Excavator Battery Diesel Replacement Lithium Battery
25.6v200ah Excavator Battery Diesel Replacement Lithium Battery
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0920
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 200Ah Rated Voltage: 25.6V
Model Size: 777mm*245mm*650mm Model Weight: 260kg
Combination Mode: 7P8S High Resistance: ≧50MΩ(DC500V)
Total Power Of Module: 5.12kwh Standard Cycle Life: ≥4000 Times 80%Capacity Retention
High Light:

200ah Excavator Battery

,

200Ah Lithium Battery

,

25.6v Excavator Battery

25.6v200ah excavator lithium battery, diesel replacement lithium battery scheme.

Technical Parameters



NO. Item Specification Remark
1 Size 777mm*245mm*650mm /
2 Combination mode 7P8S /
3 Rated capacity 200Ah 25±2℃,1.0C
4 Nominal voltage 25.6V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈260kg /
7 Total power of module 5.12kwh /
8 Maximum charging voltage 28.8V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 21.6V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃





Product Description



1.This product is a battery pack for EIKTO 43000-25pa01 25.6V200Ah common models, which is made of YJT40110413-28Ah lithium iron phosphate battery in series and parallel.

2.The module uses iron connectors for laser welding between batteries.

3.The iron material is used as the shell to stabilize the module, which has high structural strength, and the module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

4.The structure of the battery module inside the vehicle is made of refractory materials, which greatly reduces the risk caused by heating,

5.The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength;

2. Controllable process: no over welding, false welding, cracks, to ensure the perfect appearance of the battery pack;

3. Safety design: the module adopts high safety lithium iron phosphate material system;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.

6. Environmental protection: the battery is green and environmentally friendly. It does not contain or appear any toxic and harmful heavy metal elements and substances such as lead, mercury, cadmium, etc. regardless of production, use and scrap.

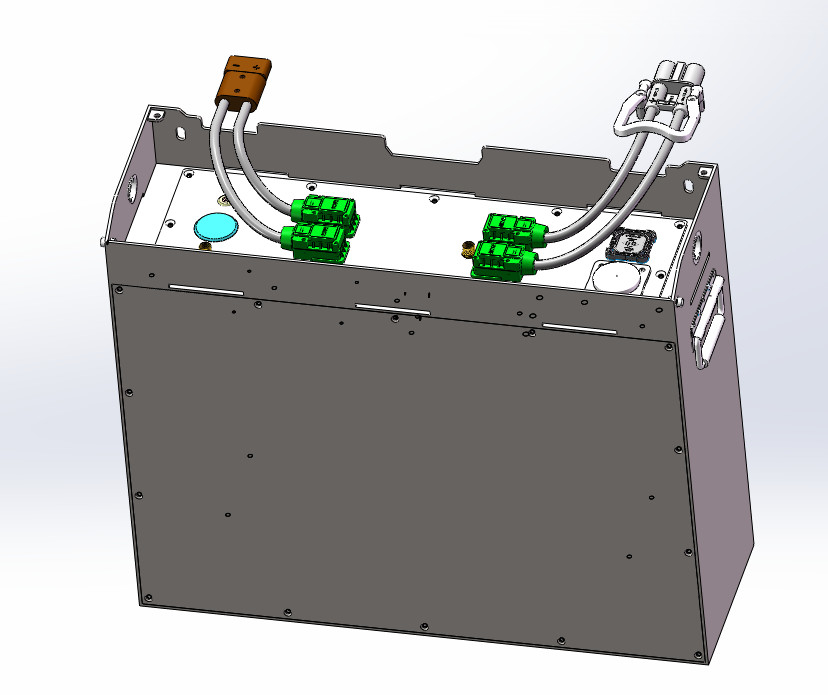

Samples Show



25.6v200ah Excavator Battery Diesel Replacement Lithium Battery 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.25.6v200ah Excavator Battery Diesel Replacement Lithium Battery 125.6v200ah Excavator Battery Diesel Replacement Lithium Battery 225.6v200ah Excavator Battery Diesel Replacement Lithium Battery 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
