48V 300AH Golf Cart Lithium Battery Lithium Iron Phosphate Battery

48V 300AH Golf Cart Lithium Battery Lithium Iron Phosphate Battery

  • 48V 300AH Golf Cart Lithium Battery Lithium Iron Phosphate Battery
48V 300AH Golf Cart Lithium Battery Lithium Iron Phosphate Battery
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0553
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 300Ah Rated Voltage: 48V
Battery Pack Size: 970mm*520mm*550mm Weight Of Battery Pack: 270kg
Combination Mode: 2P15S High Resistance: ≧50MΩ(DC1000V)
Total Power Of Module: 14.4kwh Standard Cycle Life: ≥4000 Times 80%Capacity Retention
High Light:

300AH Golf Cart Lithium Battery

,

48 volt lithium battery

,

48V Golf Cart Lithium Battery

48V 300AH Golf Cart Lithium Battery lithium iron phosphate battery, high rate lithium battery.

Technical Parameters



NO. Item Specification Remark
1 Size

970mm*520mm*550mm



/
2 Combination mode 2P15S /
3 Rated capacity 300Ah 25±2℃,1.0C
4 Nominal voltage 48V /
5 High resistance ≧50MΩ(DC1000V) 25±2℃
6 Weight ≈270kg /
7 Total power of module 14.4kwh /
8 Maximum charging voltage 54V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 40.5V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃









Product Description



1. This product is the standard module of EIKTO 10 core lithium iron phosphate battery, which is made of 3.2v450Ah lithium iron phosphate battery in series and parallel.

2. Laser welding is performed between batteries using iron connectors. Use iron material as the shell to stabilize the module.

3. The module has high structural strength. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

4. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

5. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength;

2. Controllable process: no over welding, false welding, cracks, to ensure the perfect appearance of the battery pack;

3. Safety design: the module adopts high safety lithium iron phosphate material system;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.

6. Environmental protection: the battery is green and environmentally friendly. It does not contain or appear any toxic and harmful heavy metal elements and substances such as lead, mercury, cadmium, etc. regardless of production, use and scrap.

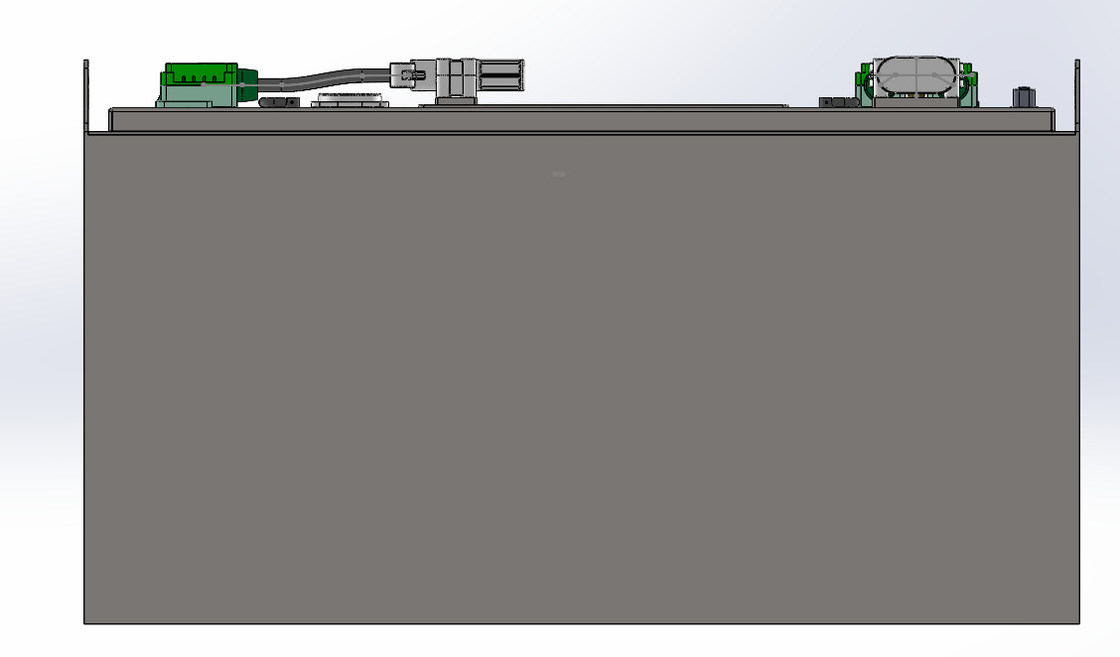

Samples Show



48V 300AH Golf Cart Lithium Battery Lithium Iron Phosphate Battery 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.48V 300AH Golf Cart Lithium Battery Lithium Iron Phosphate Battery 148V 300AH Golf Cart Lithium Battery Lithium Iron Phosphate Battery 248V 300AH Golf Cart Lithium Battery Lithium Iron Phosphate Battery 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
