51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh

51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh

  • 51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh
  • 51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh
  • 51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh
  • 51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh
51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 51.2V150Ah-DT-0004
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: It can be customized according to user needs, and the delivery time is determined according to the product
Payment Terms: EFT
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery System For Golf Cart Product Model: DT0004
Rated Capacity: 150Ah Rated Voltage: 51.2V
Rated Power: 7.68KWh Battery Pack Size: 575*310*340mm
Battery Pack Weight: 83Kg
High Light:

150Ah Lithium Ion Battery

,

lithium iron phosphate battery 7.68KWh

,

Lithium Ion Battery For Golf Cart

Technical Parameters



Product name

Lithium battery system for tractor

Product combination mode

5P16S

(Rated capacity)

150Ah

(Rated voltage)

51.2V

(Rated power)

7680Wh

System charging termination voltage

57.6V

System discharge termination voltage

40V

Monomer charging termination voltage

3.6V

Monomer discharge termination voltage

2.5V

Maximum sustainable charging current

50A

Maximum sustainable discharge current

150A

Charging temperature range

Charging temperature: 0~55℃

Discharge temperature range

Discharge temperature: - 20 ~55℃

Storage temperature

-20~60℃

Working humidity

10%RH~90%RH

Battery pack weight

≈83kg

Size

575*310*340mm

Degree of protection

IP54

Heat dissipation mode

Natural heat dissipation



Product Description





51.2V150Ah 7.68KWh Lithium iron phosphate battery system for golf cart

1. This product is Lithium iron phosphate battery system for golf cart, with good safety performance, high energy density, long cycle life, high reliability characteristics. The product is composed of YJT19124133-30Ahbattery in series and parallel, rated voltage is 51.2V, capacity 150Ah.The product is applied to golf cart.

2. The battery management system matched with this product is an integrated battery management system (BMS) for lithium ion batteries of tractors. The product has battery state acquisition, battery state estimation, fault analysis and diagnosis, energy management, information management and other functions. It has strong applicability and expansibility, with high integration, high security,great value,and other characteristics.



Product Advantages





1 The battery system can match the power display function, the battery can be equipped with a display screen, to display the battery related parameters, including the battery voltage, power and other related parameters. The specific display mode can be customized according to customer requirements.

2. Battery system CAN provide two CAN communication, one 485 communication; Therefore, the external communication of the product can be realized, such as charging machine, motor controller or vehicle controller and other equipment. Specific communication mode can be customized according to vehicle system requirements.

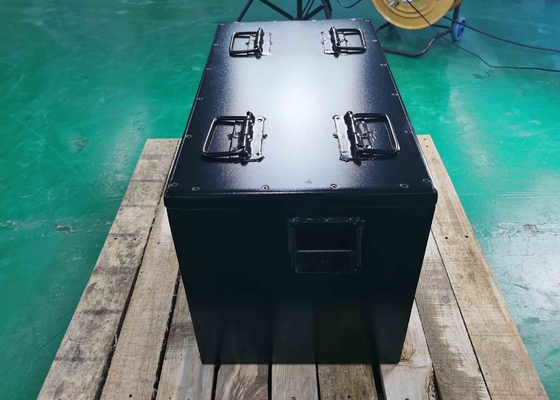

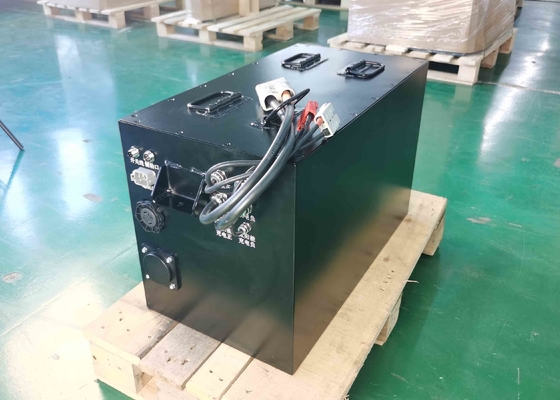

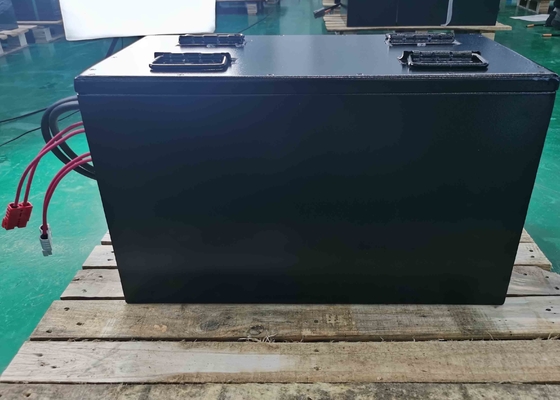

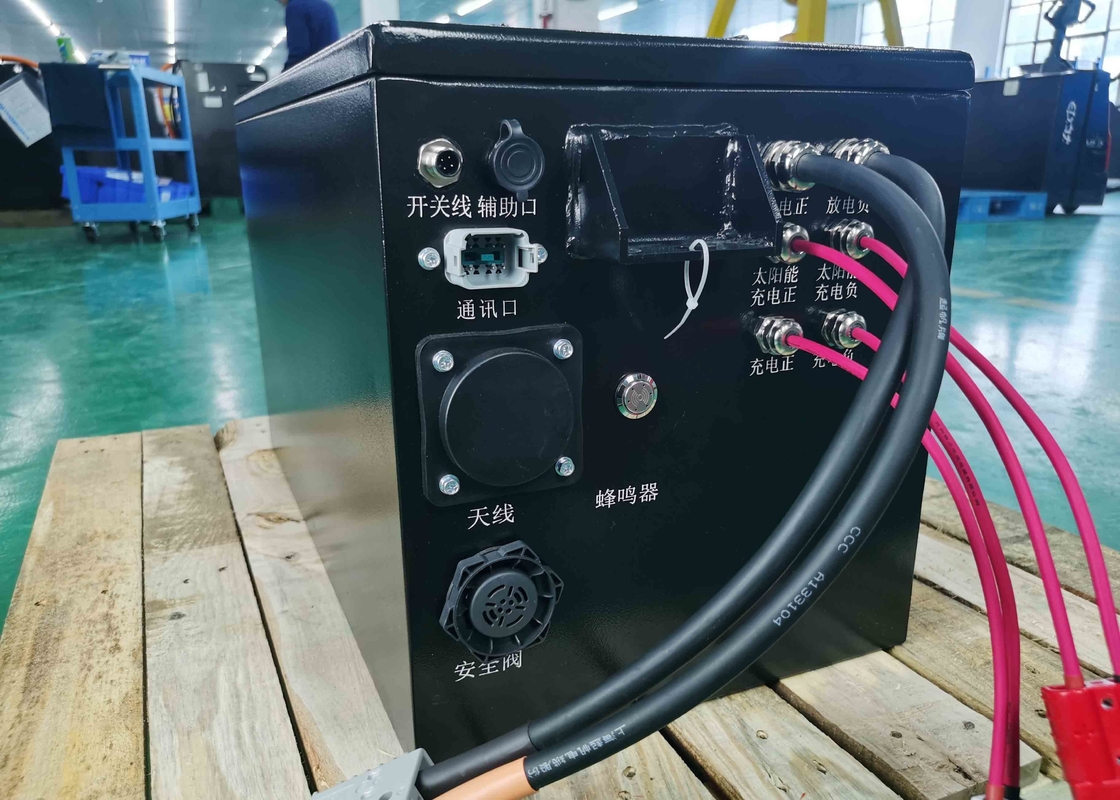

Samples Show



51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 051.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 151.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 251.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 351.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 451.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 5



Application



Applied to golf carts and other sightseeing vehicles



51.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 651.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 751.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 851.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 951.2V 150Ah Lithium Ion Battery For Golf Cart 7.68KWh 10



Packaging & Delivery





1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages



1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
