Golf Cart Lithium Ion Battery Pack 25.6v200ah Lifepo4 Deep Cycle Battery

Golf Cart Lithium Ion Battery Pack 25.6v200ah Lifepo4 Deep Cycle Battery

  • Golf Cart Lithium Ion Battery Pack 25.6v200ah Lifepo4 Deep Cycle Battery
Golf Cart Lithium Ion Battery Pack 25.6v200ah Lifepo4 Deep Cycle Battery
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0920
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 200Ah Rated Voltage: 25.6V
Size Of Battery Pack: 762mm*245mm*645mm Weight Of Battery Pack: 720kg
Combination Mode: 7P8S High Resistance: ≧50MΩ(DC500V)
Total Power Of Module: 5.12kwh Standard Cycle Life: ≥3000 Times 80%Capacity Retention
High Light:

lithium ion battery pack 25.6v

,

25.6v200ah lifepo4 deep cycle battery

,

golf cart lithium ion battery pack

Technical Parameters



NO. Item Specification Remark
1 Size 762mm*245mm*645mm /
2 Combination mode 7P8S /
3 Rated capacity 200Ah 25±2℃,1.0C
4 Nominal voltage 25.6V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈260kg /
7 Total power of module 5.12kwh /
8 Maximum charging voltage 28.8 /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 19.2 /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥3000 times 80%Capacity retention 1C/1C 25℃







Product Description



1. This product is the standard module of EIKTO 28 core lithium iron phosphate battery, which is made of YJT40110413-28Ah lithium iron phosphate battery in series and parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. The box is waterproof IP54, and the structure is firm

2. Reliable electrical performance to meet long-time work

3. Fast charging, safe and reliable;

4. It has remote monitoring and real-time viewing of battery information

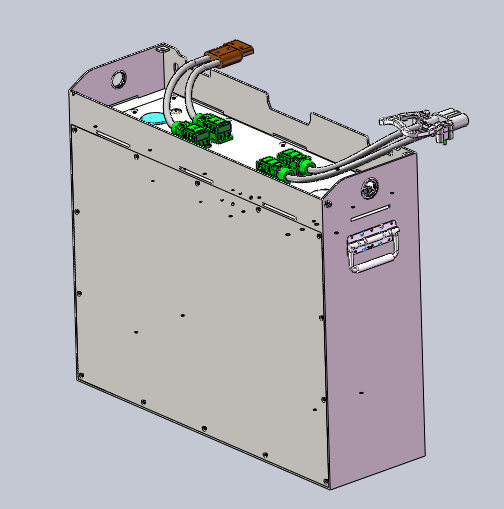

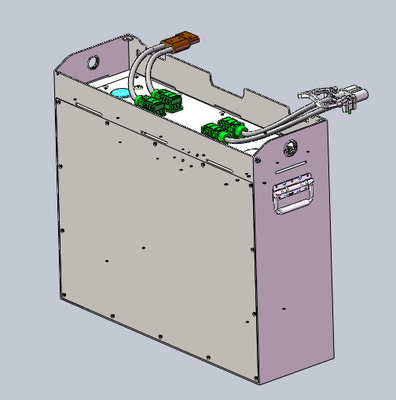

Samples Show



Golf Cart Lithium Ion Battery Pack 25.6v200ah Lifepo4 Deep Cycle Battery 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.



Golf Cart Lithium Ion Battery Pack 25.6v200ah Lifepo4 Deep Cycle Battery 1Golf Cart Lithium Ion Battery Pack 25.6v200ah Lifepo4 Deep Cycle Battery 2Golf Cart Lithium Ion Battery Pack 25.6v200ah Lifepo4 Deep Cycle Battery 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
