8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage

8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage

  • 8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage
  • 8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage
  • 8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage
  • 8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage
8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT40110413-135Ah-M20
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: within 10 days if order under 1000 pieces; negotiation if over
Payment Terms: EFT
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT40110413-135Ah-M20
Rated Capacity: 135Ah Rated Voltage: 51.2/25.6/12.8V
Battery Pack Size: 366.2mm*427.6mm*241.22mm Battery Pack Weight: 91kg
High Light:

8.640kwh Lithium Iron Phosphate

,

lithium phosphate battery 12v

,

Lithium Iron Phosphate EIKTO

Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Powerful Energy Storage Iron Module



Technical Parameters



NO. Item Specification Remark
1 Dimension 366.2mm*427.6mm*241.22mm /
2 Combination mode 1P20S 2P10S 4P5S /
3 Rated Capacity 135Ah/270Ah/540Ah 25±2℃,1.0C
4 Nominal Voltage 64/32/16V /
5 insulation resistance ≧50MΩ(DC1000V) 25±2℃
6 Module Weight ≈91kg /
7 Module energy 8.640kwh /
8 Max Charging Voltage 72/36/18V /
9 Maximum Continuous Charging Current 1C 25±5℃
10 Discharge Cut-off Voltage 50/25/12.5V /
11 Max. Continuous Discharging Current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃




Product Description



Lithium battery Lithium iron phosphate Iron Module 3.2V135AH square aluminum shell Heating system



This product is the standard module of EIKTO 20-core lithium iron phosphate battery, which is formed by series and parallel connection of YJT40110413-135AH lithium iron phosphate battery. Laser welding is carried out between the cells using Iron connecting pieces. The Iron material is used as envelop to stabilize the module, which has high structural strength. The module can be equipped with a battery heating system, so that the battery can work normally in low temperature environment. The internal structure of the module is made of flame resistant material, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti-vibration structure strength;

2. Controllable process: no over welding and false welding to ensure 100% no damage to the cell;

3. Safety design: high safety lithium iron phosphate material system is adopted;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with heating system to make the battery work normally in low temperature environment.

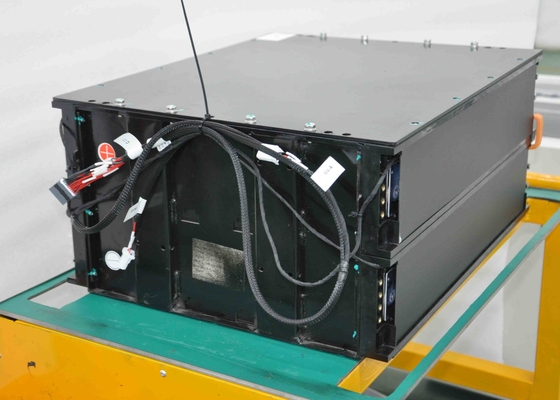

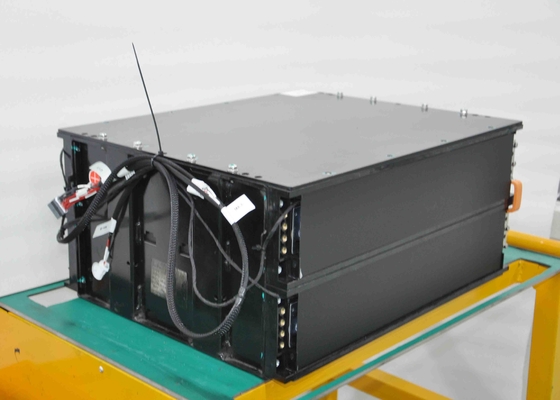

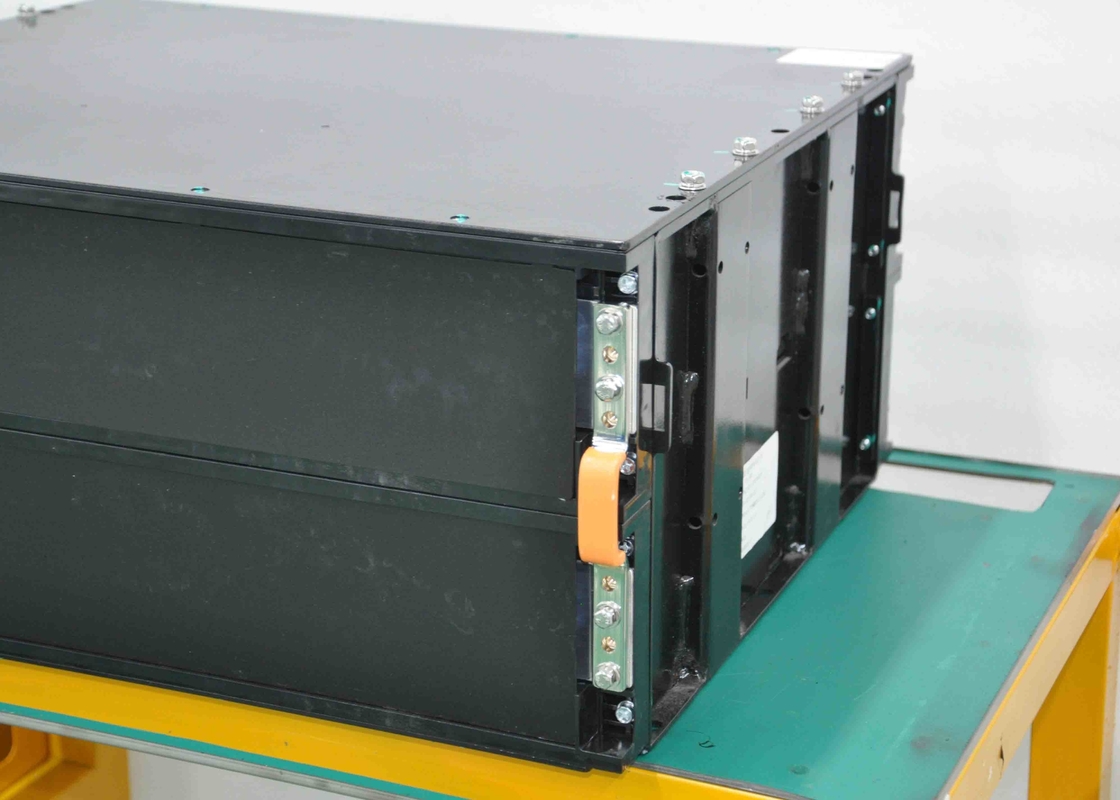

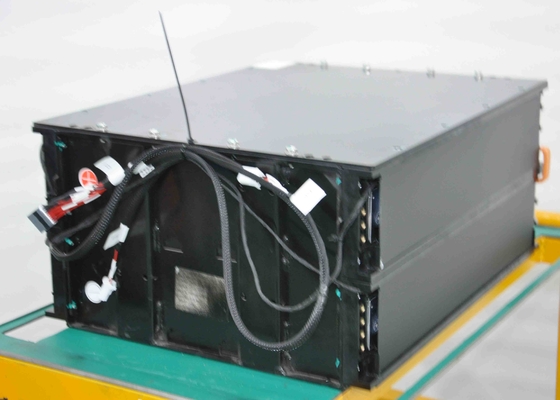

Samples Show



8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage 08.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage 18.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage 28.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage 3





Application



8.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage 48.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage 58.640kwh Lithium Iron Phosphate EIKTO Powerful Energy Storage 6



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
