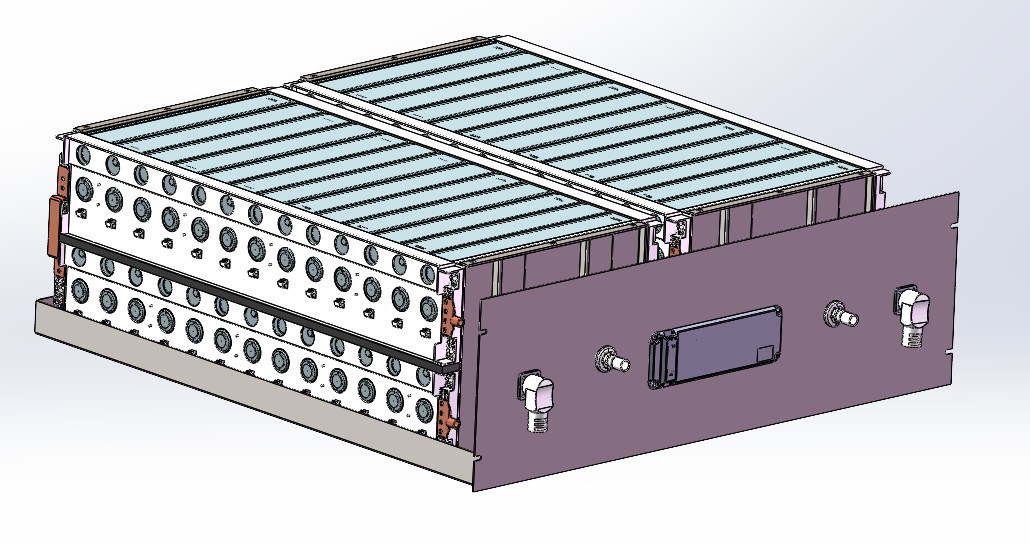

Energy Storage System Lithium Battery Pack 166.4V 280Ah 46.592KWh

Energy Storage System Lithium Battery Pack 166.4V 280Ah 46.592KWh

  • Energy Storage System Lithium Battery Pack 166.4V 280Ah 46.592KWh
Energy Storage System Lithium Battery Pack 166.4V 280Ah 46.592KWh
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT52145405-280Ah-52S1P
Payment & Shipping Terms:
Minimum Order Quantity: A minimum
Price: negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Can be customized according to user requirements, delivery time according to the product
Payment Terms: EFT
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT52145405-280Ah-52S1P
Rated Capacity: 280Ah Rated Voltage: 166.4V
Rated Power: 46.592KWh Battery Pack Size: 890mm*866mm*311mm
Battery Pack Weight: 350Kg
High Light:

Lithium Battery Pack 166.4V

,

46.592KWh lithium power pack

,

Lithium Battery Pack 280Ah

Technical Parameters





NO. Item Specification Remark
1 Dimension 890mm*866mm*311mm /
2 Combination mode 1P52S /
3 Rated Capacity 280Ah 25±2℃,1.0C
4 Nominal Voltage 166.4V /
5 insulation resistance ≧50MΩ(DC1000V) 25±2℃
6 Module Weight ≈350kg /
7 Module energy 46.592KWh /
8 Max Charging Voltage 187.2V /
9 Maximum Continuous Charging Current 0.5C 25±5℃
10 Discharge Cut-off Voltage 145.6V /
11 Max. Continuous Discharging Current 0.5C 25±5℃
12 Extended function External series connection (max 1500V) /



Rack Technical Parameters



Product name ESS Lithium Iron Phosphate Battery Rack
Product combination mode 1P 416S
Rated capacity 280 Ah
Rated voltage 1331.2 V
Rated power 372.736 KWh
Module charging termination voltage 1497.6 V
Module discharge termination voltage 1164.8 V
Monomer charging termination voltage 3.6 V
Monomer discharge termination voltage 2.8 V
Maximum sustainable charging current 0.5 P
Maximum sustainable discharge current 0.5 P
Charging temperature range Charging temperature: 0~55℃
Discharge temperature range Discharge temperature: - 20 ~55℃
Storage temperature -20~45℃
Working humidity 10%RH~70%RH
Battery pack weight ≈3000kg
size 990mm*966mm*2500mm
Heat dissipation mode Liquid cooling
Extended function External series connection (max 1500V)



Product Description

The product is a Lithium iron phosphate ESS battery module which has the characteristics of good safety performance, liquid cooling function, long cycle life and high reliability.The product is composed of YJT52145405 -280Ah single battery in series composition, with rated voltage of 166.4V and capacity of 280Ah.The product is applied to commercial energy storage system . The module can support continuous operation at full power and supports series function, and the maximum series voltage is DC1500V.

The battery management system matched with this product is an integrated battery management system (BMS) for marine lithium-ion batteries. It has the functions of battery state acquisition, battery state estimation, energy management, information management, and so on. It has strong applicability and expansibility, and has the characteristics of high integration, high safty and high cost performance.







Product Advantages



1, Apply with 280Ah high capacity cell The module adopts the 280Ah high-capacity prismatic lithium iron phosphate battery independently developed by our company.

a. The positive and negative terminal are distributed on both sides of the cell to avoid heat concentration;

b. The battery roll foil is designed with all-pole lugs to increase the ability of over current;

c. The battery shell adopts aluminum shell, which has high mechanical strength and good heat dissipation performance;

d. Long cycle life, can reach more than 6000 times;

e. Adopt high-capacity cells to reduce the number of parallel cells;

2.The module features intelligent thermal management. The module itself has a fan. When the sensor detects that the battery temperature exceeds T1°C, the BMS will activate the fan to force the battery to cool down to ensure that the battery works at a comfortable temperature. When the battery temperature drops to T2°C, the BMS will turn off the fan and stop cooling. Intelligent thermal management strategies can avoid battery overheating with high efficiency and low power consumption.

3.16S1P is a standard air-cooled energy storage module developed by our company. The module is installed in the battery rack and connected in series to form a battery cluster. The battery clusters can be flexibly composed of different energy and sizes by connecting them in parallel. It can cover the power demand of 100kwh-4000kwh. The module supports energy storage systems with a maximum voltage of 1500V.

4.Safety Design

4.1 using high safety material lithium iron phosphate material system, through thermal runaway experiment;

4.2 strict Cell march conditions, to ensure the consistency of the battery cluster;

4.3 high precision BMS, to ensure that the battery will not overcharge and discharge;

4.4 reasonable DOD charging and discharging depth ensures the cycle life of the battery;

4.5 The battery cluster has a high voltage control box, which can cut off the circuit immediately in extreme cases and reduce the occurrence of disasters



Samples Show



Energy Storage System Lithium Battery Pack 166.4V 280Ah 46.592KWh 0Energy Storage System Lithium Battery Pack 166.4V 280Ah 46.592KWh 1



Application



Application: energy storage



Energy Storage System Lithium Battery Pack 166.4V 280Ah 46.592KWh 2Energy Storage System Lithium Battery Pack 166.4V 280Ah 46.592KWh 3



Packaging & Delivery

1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
