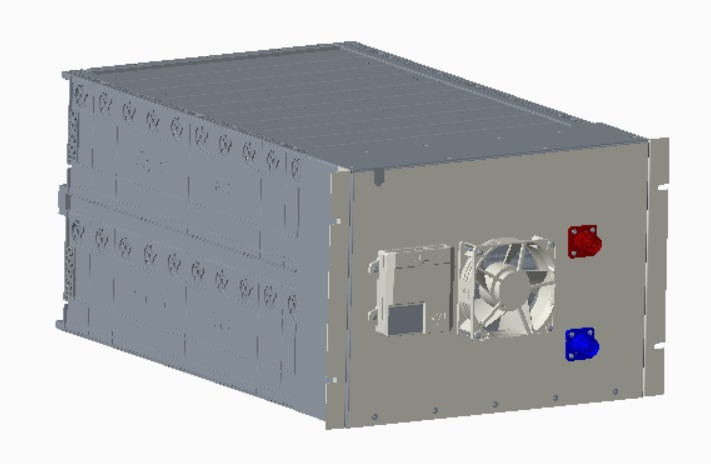

20S1P Energy Storage Lithium Battery 64V 280Ah 17.920KWh Lithium Battery

20S1P Energy Storage Lithium Battery 64V 280Ah 17.920KWh Lithium Battery

  • 20S1P Energy Storage Lithium Battery 64V 280Ah 17.920KWh Lithium Battery
20S1P Energy Storage Lithium Battery 64V 280Ah 17.920KWh Lithium Battery
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT52145405-280Ah-20S1P
Payment & Shipping Terms:
Minimum Order Quantity: A minimum
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Can be customized according to user requirements, delivery time according to the product
Payment Terms: Transfer accounts
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT52145405-280Ah-20S1P
Rated Capacity: 280Ah Rated Voltage: 64V
Rated Power: 17.920KWh Battery Pack Size: 715mm*430mm*322mm
Battery Pack Weight: 134Kg
High Light:

20S1P Energy Storage Lithium Battery

,

17.920KWh energy storage battery

,

Energy Storage Lithium Battery 64V

20S1P 64V/280Ah 17.920KWh Battery Module Of Energy Storage System Lithium Battery



Technical Parameters





NO.

Item

Specification

Remark

1

Dimension

715mm*430mm*322mm

/

2

Combination mode

1P20S

/

3

Rated Capacity

280Ah

25±2℃,1.0C

4

Nominal Voltage

64V

/

5

insulation resistance

≧50MΩ(DC1000V)

25±2℃

6

Module Weight

≈134kg

/

7

Module energy

17.920KWh

/

8

Max Charging Voltage

72V

/

9

Maximum Continuous Charging Current

0.5C

25±5℃

10

Discharge Cut-off Voltage

56V

/

11

Max. Continuous Discharging Current

0.5C

25±5℃

12

Extended function

External series connection (max 1500V)

/





Product Description

64V280Ah 17.920KWh battery module of energy storage system



The product is a Lithium iron phosphate ESS battery module which has the characteristics of good safety performance, air cooling function, long cycle life and high reliability.The product is composed of YJT52145405 -280Ah single battery in series composition, with rated voltage of 64V and capacity of 280Ah.The product is applied to commercial energy storage system . The module can support continuous operation at full power and supports series function, and the maximum series voltage is DC1500V.

The battery management system matched with this product is an integrated battery management system (BMS slave) for marine lithium-ion batteries. It has the functions of battery state acquisition, battery state estimation, energy management, information management, and so on. It has strong applicability and expansibility, and has the characteristics of high integration, high security and high cost performance.



Product Advantages



1, Apply with 280Ah high capacity cell The module adopts the 280Ah high-capacity prismatic lithium iron phosphate battery independently developed by our company.

a. The positive and negative terminal are distributed on both sides of the cell to avoid heat concentration;

b. The battery roll foil is designed with all-pole lugs to increase the ability of over current;

c. The battery shell adopts aluminum shell, which has high mechanical strength and good heat dissipation performance;

d. Long cycle life, can reach more than 6000 times;

e. Adopt high-capacity cells to reduce the number of parallel cells;

2.The module features intelligent thermal management. The module itself has a fan. When the sensor detects that the battery temperature exceeds T1°C, the BMS will activate the fan to force the battery to cool down to ensure that the battery works at a comfortable temperature. When the battery temperature drops to T2°C, the BMS will turn off the fan and stop cooling. Intelligent thermal management strategies can avoid battery overheating with high efficiency and low power consumption.

3.20S1P is a standard air-cooled energy storage module developed by our company. The module is installed in the battery rack and connected in series to form a battery cluster. The battery clusters can be flexibly composed of different energy and sizes by connecting them in parallel. It can cover the power demand of 100kwh-4000kwh. The module supports energy storage systems with a maximum voltage of 1500V.

4.Safety Design

4.1 using high safety material lithium iron phosphate material system, through thermal runaway experiment;

4.2 strict Cell march conditions, to ensure the consistency of the battery cluster;

4.3 high precision BMS, to ensure that the battery will not overcharge and discharge;

4.4 reasonable DOD charging and discharging depth ensures the cycle life of the battery;

4.5 The battery cluster has a high voltage control box, which can cut off the circuit immediately in extreme cases and reduce the occurrence of disasters



Samples Show



20S1P Energy Storage Lithium Battery 64V 280Ah 17.920KWh Lithium Battery 0

20S1P Energy Storage Lithium Battery 64V 280Ah 17.920KWh Lithium Battery 1

20S1P Energy Storage Lithium Battery 64V 280Ah 17.920KWh Lithium Battery 2



Application



Application: energy storage
