51.2V100Ah Yacht Lithium Battery IP67 600mmx530mmx200mm

51.2V100Ah Yacht Lithium Battery IP67 600mmx530mmx200mm

  • 51.2V100Ah Yacht Lithium Battery IP67 600mmx530mmx200mm
51.2V100Ah Yacht Lithium Battery IP67 600mmx530mmx200mm
Product Details:
Place of Origin: China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: Y100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: Negotiable
Contact Now
Detailed Product Description
Product Name: Yacht Lithium Iron Phosphate Battery Product Model: Y100
Rated Capacity: 100Ah Rated Voltage: 51.2V
Battery Pack Compound Mode: 4P16S Battery Pack Weight: 54Kg
Battery Pack Size: 600mm*530mm*200mm IP Degree: IP67
High Light:

acht Lithium Battery IP67

,

51.2V 100ah lithium battery

,

Yacht Lithium Battery 600mmx530mmx200mm

51.2V100Ah Yacht Lithium Iron Phosphate Battery IP67 600mm*530mm*200mm

Product Description



The product is a Lithium iron phosphate power battery system which has the characteristics of good safety performance, high energy density, long cycle life and high reliability.The product is composed of YJT19124133-25Ah single battery in series-parallel composition, with rated voltage of 51.2V and capacity of 100Ah.The battery can support continuous operation at full power and supports parallel function, and the maximum parallel support is 16.





Technical Parameters



Product name Yacht Lithium Iron Phosphate Battery
Rated capacity 100Ah
Rated voltage 51.2V
Rated power 5120Wh
System charging termination voltage 57.6V
System discharge termination voltage 41.6V
Monomer charging termination voltage 3.6V
Monomer discharge termination voltage 2.6V
Maximum sustainable charging current 50A
Maximum sustainable discharge current 75A
(Charging temperature range) Charging temperature: 0~55℃
Discharge temperature range Discharge temperature: - 20 ~55℃
Storage temperature -20~60℃
Working humidity 10%RH~90%RH
Heat dissipation mode Natural heat dissipation
Extended function External parallel connection (max 16 parallel)



Application



Application areas: The products are mainly used in yachts and household energy storage

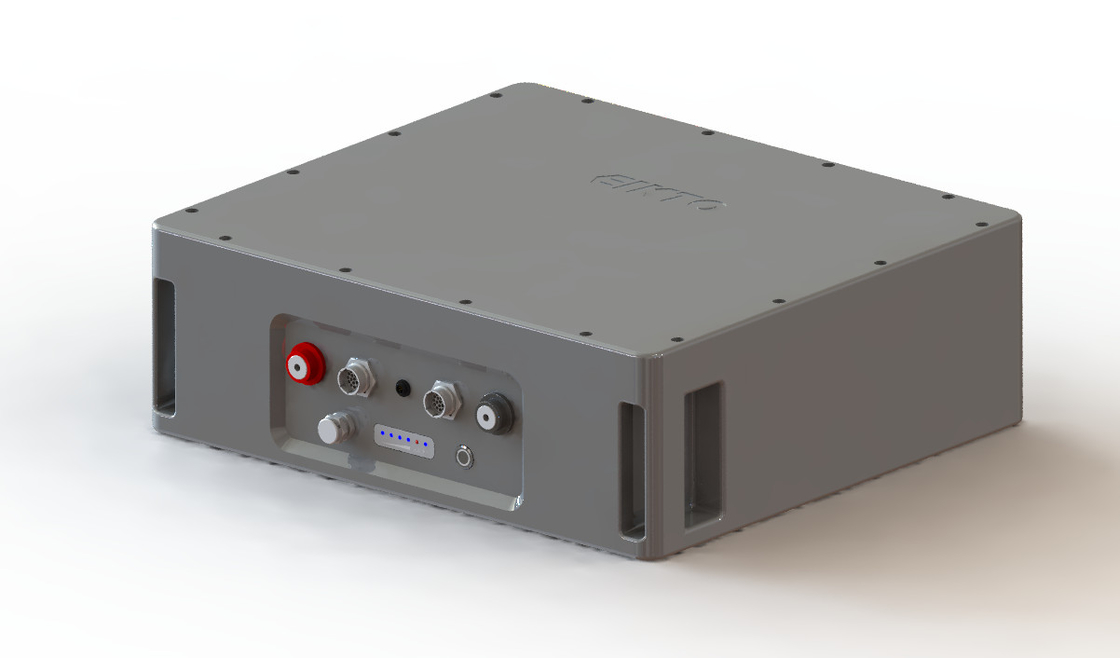

Samples Show



51.2V100Ah Yacht Lithium Battery IP67 600mmx530mmx200mm 0





Features

Minimal dimensions:Adopt integrated development design, optimize PCB layout, ensure high product integration, greatly reduce product size and weight, facilitate PACK layout, and improve PACK energy density.

Fast and convenient way toupgrade:Support high-speed CAN interface for program upgrade, combined with the host computer with optimized download strategy, can achieve rapid software upgrade.
