Place of Origin: | China |
Brand Name: | EIKTO |
Certification: | CE/UL/UN38.3/SDS |
Model Number: | Y100 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Negotiable |
Delivery Time: | Negotiable |
Payment Terms: | Negotiable |
Supply Ability: | Negotiable |

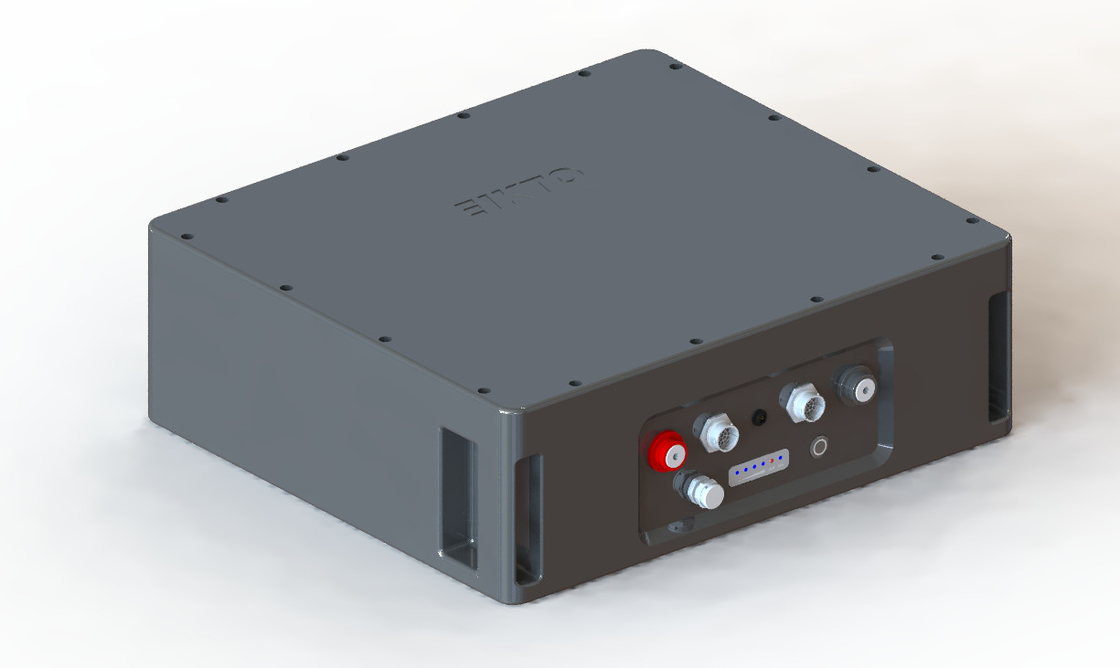

Product Name: | Yacht Lithium Iron Phosphate Battery | Product Model: | Y100 |
---|---|---|---|
Rated Capacity: | 100Ah | Rated Voltage: | 51.2V |
Charging Temperature Range: | 0~55℃ | Discharge Temperature Range: | -20~55℃ |
Storage Temperature: | -20~60℃ | Working Humidity: | 10%RH~90%RH |
High Light: | 51.2V100Ah Yacht Lithium Battery,lithium iron phosphate battery,5.12 KWh Yacht Lithium Battery |
Product name | Yacht Lithium Iron Phosphate Battery |
Product combination mode | 4P16S |
Rated capacity | 100Ah |
Rated voltage | 51.2V |
Rated power | 5120Wh |
System charging termination voltage | 57.6V |
System discharge termination voltage | 41.6V |
Monomer charging termination voltage | 3.6V |
Monomer discharge termination voltage | 2.6V |
Maximum sustainable charging current | 50A |
Maximum sustainable discharge current | 75A |
Battery pack weight | ≈54kg |
size | 420mm*480mm*190mm |
Degree of protection | IP67 |
Heat dissipation mode | Natural heat dissipation |
Extended function | External parallel connection (max 16 parallel) |
Efficient and stable balance:The stable and reliable passive equalization technology is adopted, and the design and thermal management are optimized to support a large and continuous equalizing current, which ensures the consistency of battery voltage and can effectively extend the cruising range and battery cycle life.
High-precision and high-speed acquisition scheme:The use of advanced acquisition chips ensures that the system has a fast sampling period and accurate sampling accuracy, and further improves the stability and reliability of the hardware.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
