IP67 51.2V50Ah Yacht Lithium Battery 420mmx480mmx190mm

IP67 51.2V50Ah Yacht Lithium Battery 420mmx480mmx190mm

  • IP67 51.2V50Ah Yacht Lithium Battery 420mmx480mmx190mm
IP67 51.2V50Ah Yacht Lithium Battery 420mmx480mmx190mm
Product Details:
Place of Origin: China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: Y50
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: Negotiable
Contact Now
Detailed Product Description
Product Name: Yacht Lithium Iron Phosphate Battery Product Model: Y50
Rated Capacity: 50Ah Rated Voltage: 51.2V
System Charging Termination Voltage: 57.6V System Discharge Termination Voltage: 41.6V
Storage Temperature: -20~60℃ Working Humidity: 10%RH~90%RH
High Light:

51.2V50Ah Yacht Lithium Battery

,

UN38.3 li iron phosphate batteries

,

Yacht Lithium Battery 420mmx480mmx190mm

51.2V50Ah IP67 Yacht Lithium Iron Phosphate Battery CE 420mm*480mm*190mm



Product Description



The product is a Lithium iron phosphate power battery system which has the characteristics of good safety performance, high energy density, long cycle life and high reliability.The product is composed of YJT19124133-25Ah single battery in series-parallel composition, with rated voltage of 51.2V and capacity of 50Ah.The product is applied to small yachts. The back-end equipment is a 2/4 kW motor. The battery can support continuous operation at full power and supports parallel function, and the maximum parallel support is 16.



Product Advantages



The battery management system matched with this product is an integrated battery management system (BMS) for yacht lithium-ion batteries. It has the functions of battery state acquisition, battery state estimation, fault analysis and diagnosis, energy management, information management, collision signal detection, high voltage interlock detection and so on. It has strong applicability and expansibility, and has the characteristics of high integration, high security and high cost performance.



Technical Parameters





Product name Yacht Lithium Iron Phosphate Battery
Product combination mode 2P16S
Rated capacity 50Ah
Rated voltage 51.2V
Rated power 2560Wh
System charging termination voltage 57.6V
System discharge termination voltage 41.6V
Monomer charging termination voltage 3.6V
Monomer discharge termination voltage 2.6V
Maximum sustainable charging current 25A
Maximum sustainable discharge current 50A
Battery pack weight ≈30kg
size 420mm*480mm*190mm
Degree of protection IP67
Heat dissipation mode Natural heat dissipation
Extended function External parallel connection (max 16 parallel)






Samples Show

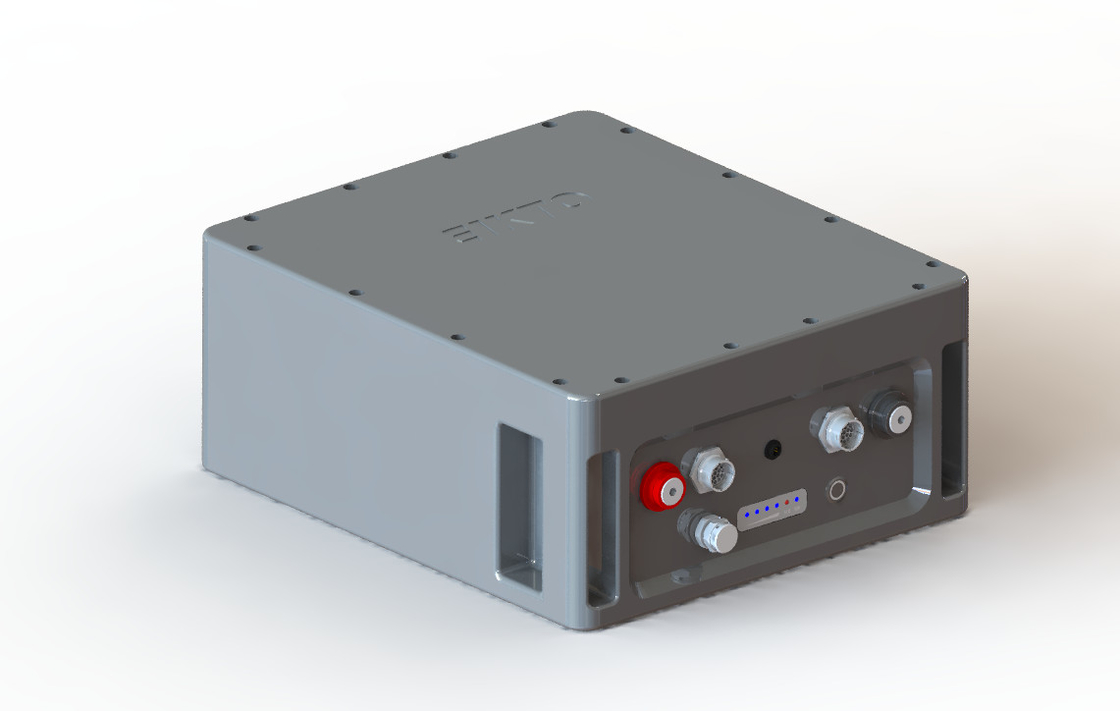

IP67 51.2V50Ah Yacht Lithium Battery 420mmx480mmx190mm 0



Application



Application areas: The products are mainly used in yachts and household energy storage
