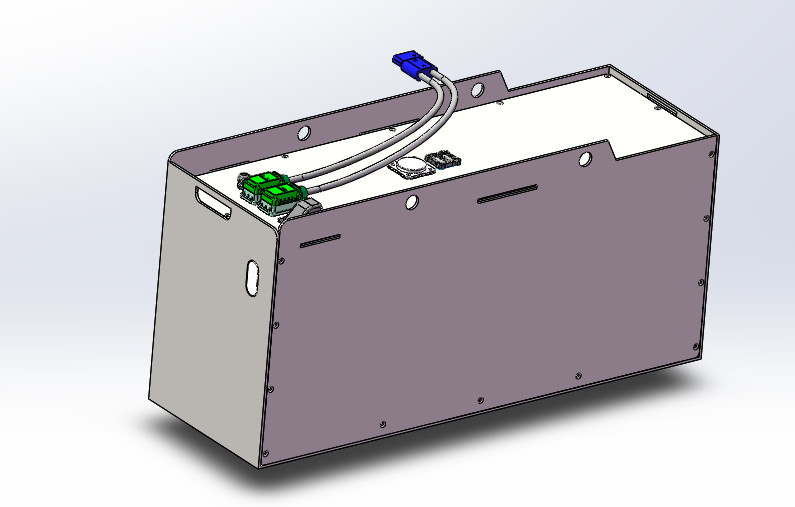

Forklift Lithium Ion Battery System Stability Safety 48V270Ah

Forklift Lithium Ion Battery System Stability Safety 48V270Ah

  • Forklift Lithium Ion Battery System Stability Safety 48V270Ah
Forklift Lithium Ion Battery System Stability Safety 48V270Ah
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0757
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: EK-CP-0757
Rated Capacity: 270Ah Rated Voltage: 48V
Size Of Battery Pack: 1124mm*375mm*555mm Weight Of Battery Pack: 1130kg
High Light:

48V270Ah Lithium Ion Battery System

,

EIKTO Lithium Ion Battery System

,

48V270Ah Forklift Lithium Battery

Lithium Ion Battery System Forklift Lithium Battery Stability Safety 48V270Ah

Forklift Lithium Battery Stability And Safety Lithium Ion Battery System 48V270Ah

Technical Parameters



NO. Item Specification Remark
1 Size 1124mm*375mm*555mm /
2 Combination mode 1P15S /
3 Rated capacity 270Ah 25±2℃,1.0C
4 Nominal voltage 48V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈1130kg /
7 Total power of module 12.96kwh /
8 Maximum charging voltage 54V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 36V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥4000 times

80%Capacity retention

1C/1C 25℃



Product Description



1. This product is made of YJT40110413-270ah lithium iron phosphate battery in series and parallel. It is the standard module of EIKTO 5-cell lithium iron phosphate battery.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure and high anti vibration structural strength; Waterproof and dustproof grade IP54

2. Reliable electrical performance to meet long-time work

3. It has remote monitoring, real-time view of battery information, and can realize remote system upgrade

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.



Samples Show



Forklift Lithium Ion Battery System Stability Safety 48V270Ah 0



Application





The products are widely used in industrial vehicles, engineering vehicles and other fields

Forklift Lithium Ion Battery System Stability Safety 48V270Ah 1Forklift Lithium Ion Battery System Stability Safety 48V270Ah 2Forklift Lithium Ion Battery System Stability Safety 48V270Ah 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
