Lithium Ion Electric Forklift Battery Pack 76.8Volt 405Ah 31.104kwh

Lithium Ion Electric Forklift Battery Pack 76.8Volt 405Ah 31.104kwh

  • Lithium Ion Electric Forklift Battery Pack 76.8Volt 405Ah 31.104kwh
Lithium Ion Electric Forklift Battery Pack 76.8Volt 405Ah 31.104kwh
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/IEC
Model Number: EK-CP-0261
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Forklift Lithium Battery Product Model: EK-CP-0261
Rated Capacity: 405Ah Rated Voltage: 76.8V
Battery Pack Size: 1090mm * 978mm * 470mm Battery Pack Weight: 560kg
High Light:

electric forklift battery pack

,

76.8Volt lithium power pack

,

electric forklift battery pack 31.104kwh

Technical Parameters



NO. Item Specification Remark
1 Size 1090mm*978mm*470mm /
2 Combination mode 3P24S /
3 Rated capacity 405Ah 25±2℃,1.0C
4 Nominal voltage 76.8V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈560kg /
7 Total power of module 31.104kwh /
8 Maximum charging voltage 86.4 /
9 Maximum continuous charging current 0.5C 25±5℃
10 Discharge cut-off voltage 64.8 /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥4000 times

80%Capacity retention

1C/1C 25℃





Product Description



1. This product is an EIKTO lithium iron phosphate battery FCTP module, which is made of 135Ah lithium iron phosphate batteries in series and parallel.

2. Laser welding is performed between the batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory material, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: reasonable structure layout makes the overall structure of the battery pack firm and reliable;

2. Electrical reliability: reasonable electrical design and layout make the battery pack function balanced and stable;

3. Safety design: many fire-retardant and other safety layouts are arranged inside the system, and high safety lithium iron phosphate material system is adopted;

4. Remote monitoring and real-time viewing of battery information

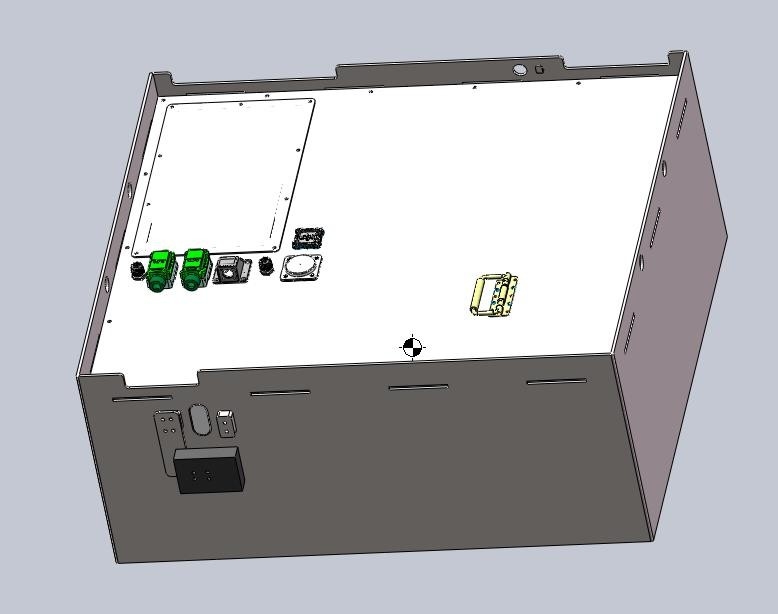

Samples Show



Lithium Ion Electric Forklift Battery Pack 76.8Volt 405Ah 31.104kwh 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.Lithium Ion Electric Forklift Battery Pack 76.8Volt 405Ah 31.104kwh 1Lithium Ion Electric Forklift Battery Pack 76.8Volt 405Ah 31.104kwh 2Lithium Ion Electric Forklift Battery Pack 76.8Volt 405Ah 31.104kwh 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
