Place of Origin: | Anhui China |
Brand Name: | EIKTO |
Certification: | CE/UL/UN38.3/SDS |
Model Number: | EK-TK-0016 |
Minimum Order Quantity: | One piece |
---|---|
Price: | Negotiable |
Packaging Details: | Standard safety industrial packaging |
Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated. |
Payment Terms: | EFT |
Supply Ability: | +9999 |
Product Name: | Export Msde2 Standard Lithium Iron Phosphate Battery Pack Without Counterweight | Product Model: | EK-TK-0016 |
---|---|---|---|
Rated Capacity: | 300Ah | Rated Voltage: | 83.2V |
Battery Pack Size: | 883mm*580mm*450mm | Weight Of Battery Pack: | 305kg |
High Light: | Forklift Battery Pack Without Counterweight,Forklift Lithium Battery Without Counterweight,EIKTO Forklift Battery Pack |
NO. | Item | Specification | Remark |
1 | Size | 883mm*580mm*450mm | / |
2 | Combination mode | 2P26S | / |
3 | Rated capacity | 300Ah | 25±2℃,1.0C |
4 | Nominal voltage | 83.2V | / |
5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
6 | Weight | ≈305kg | / |
7 | Total power of module | 24.96kwh | / |
8 | Maximum charging voltage | 93.6V | / |
9 | Maximum continuous charging current | 0.75C | 25±5℃ |
10 | Discharge cut-off voltage | 70.2V | / |
11 | Maximum continuous discharge current | 1C | 25±5℃ |
12 | Standard cycle life | ≥3000 times 80%Capacity retention | 1C/1C 25℃ |
1. The msde2 non counterweight standard battery pack exported by EIKTO is the smallest battery pack under the capacity of this specification.

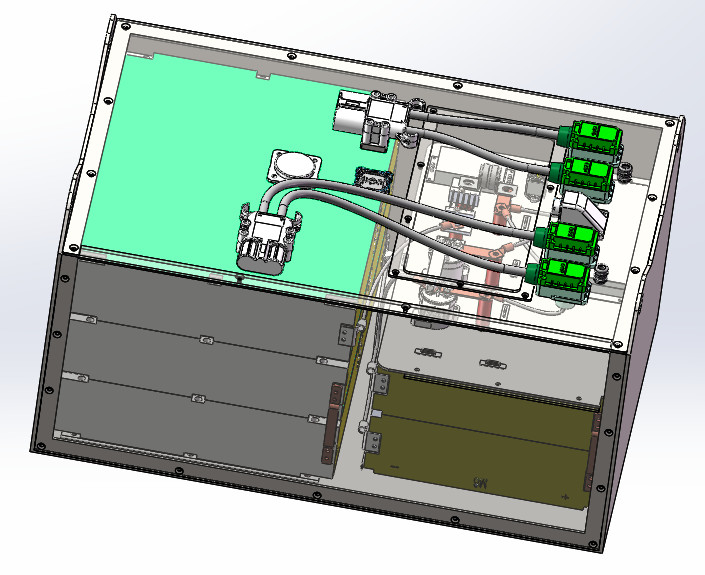

2. This battery pack is independently developed by EIKTO. The internal battery pack is realized by M12 aluminum module and M8 aluminum module through internal series and parallel connection.
3. Battery system management and control is mainly through BMS and other related electrical components to meet the needs of customers on forklifts.
4. The battery pack is IP54 waterproof and can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the battery pack is made of many refractory materials, which greatly reduces the risk of battery use.
6. Our battery has the advantages of strong stability, high safety, long cycle life and multiple functions.
1. Reliable structure: reasonable structural layout makes the overall structure of the battery pack firm and reliable;
2. Electrical reliability: reasonable electrical design layout makes the battery pack function balanced and stable;
3. Safety design: many fire-retardant and other safety layouts are arranged inside the system, and high safety lithium iron phosphate material system is adopted;
4. It can realize multiple functions: various functions can be customized according to customer needs.
The products are widely used in industrial vehicles, engineering vehicles and other fields.
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
