Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864

Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864

  • Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864
Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0864
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: Zhuoyi 16VDA
Rated Capacity: 300Ah Rated Voltage: 48V
Product Size: 985mm*462mm*650mm Product Weight: 730kg
High Light:

Forklift 48V 300Ah Lithium Ion Battery

,

48V 300Ah Forklift Lithium Battery

Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864

Technical Parameters



NO. Item Specification Remark
1 Size 985mm*462mm*650mm /
2 Combination mode 2P15S /
3 Rated capacity 300Ah 25±2℃,1.0C
4 Nominal voltage 48V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈730kg /
7 Total power of module 14.4kwh /
8 Maximum charging voltage 54 /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 36 /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥3000 times

80%Capacity retention

1C/1C 25℃



Product Description



1. This product is made of YJT40110413-150Ah lithium iron phosphate battery in series and parallel. It is the standard module of EIKTO 8-cell lithium iron phosphate battery.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. The box is waterproof IP54, and the structure is firm

2. Reliable electrical performance to meet long-time work

3. Fast charging, safe and reliable;

4. It has remote monitoring and real-time viewing of battery information



Samples Show

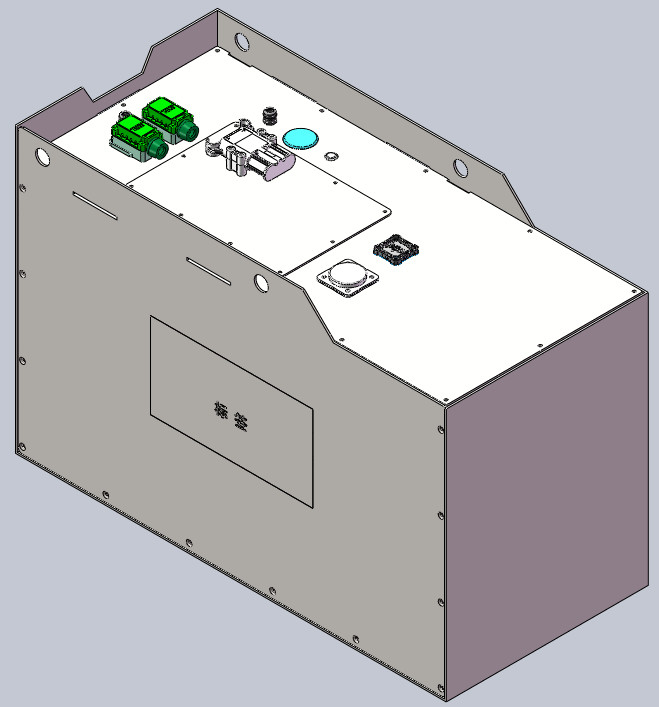

Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.

Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864 1Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864 2Forklift 48V300Ah Lithium Ion Battery System EK-CP-0864 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
