Lithium Iron Phosphate Forklift Lithium Battery 80V 350Ah Customizable

Lithium Iron Phosphate Forklift Lithium Battery 80V 350Ah Customizable

  • Lithium Iron Phosphate Forklift Lithium Battery 80V 350Ah Customizable
Lithium Iron Phosphate Forklift Lithium Battery 80V 350Ah Customizable
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/IEC
Model Number: EK-BZ-P022
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Forklift Lithium Battery Product Model: EK-BZ-P022
Rated Capacity: 350Ah Rated Voltage: 80V
Product Size: 1017mm * 852mm * 627mm Product Weight: 1458kg
High Light:

lifepo4 Forklift Lithium Battery

,

lithium ion batteries for forklift

,

forklift battery pack 80V

1276 E25S 80V350Ah,Customizable Lithium Iron Phosphate Forklift Lithium Battery

Technical Parameters



NO. Item Specification Remark
1 Size 1017mm*852mm*627mm /
2 Combination mode 2P15S+2P10S /
3 Rated capacity 350Ah 25±2℃,1.0C
4 Nominal voltage 80V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight 1458kg /
7 Total power of module 28kwh /
8 Maximum charging voltage 90V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 67.5V /
11 Maximum continuous discharge current 2C 25±5℃
12 Standard cycle life

≥3000 times

80%Capacity retention

1C/1C 25℃





Product Description

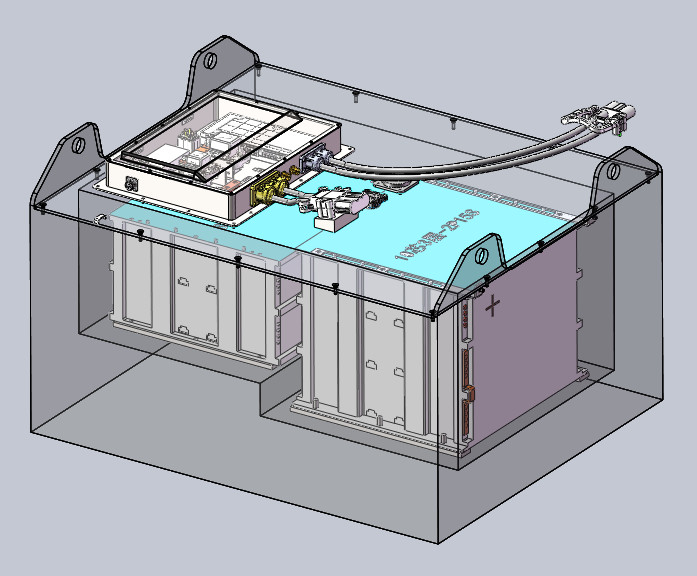

1. This product is an EIKTO lithium iron phosphate battery module, which is made of 175Ah lithium iron phosphate batteries in series and parallel.

2. Laser welding is performed between the batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory material, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. High safety performance: the P-O bond in lithium iron phosphate crystal is stable and difficult to decompose. Even at high temperature or overcharge, it will not collapse and generate heat or form strong oxidizing substances like lithium cobaltate, so it has good safety;

2. Long service life: lithium iron phosphate battery refers to a lithium-ion battery using lithium iron phosphate as the cathode material. The cycle life of long-life lead-acid battery is about 300 times, and the maximum is 500 times. The cycle life of lithium iron phosphate power battery can reach more than 2000 times, and the standard charging (5-hour rate) can reach 2000 times;

3. Good high temperature performance: the electric heating peak of lithium iron phosphate can reach 350 ℃ - 500 ℃, while lithium manganate and lithium cobaltate are only around 200 ℃. The working temperature range is wide (- 20c-75c), with high temperature resistance. The electric heating peak of lithium iron phosphate can reach 350 ℃ - 500 ℃, while that of lithium manganate and lithium cobaltate is only about 200 ℃;

4. Large capacity: when the battery is always working under the condition of full charge, the capacity will quickly be lower than the rated capacity. This phenomenon is called memory effect. For example, nickel hydrogen and nickel cadmium batteries have memory property, but lithium iron phosphate batteries do not. No matter what state the battery is in, it can be used as soon as it is charged, and there is no need to discharge before charging;

5. Environmental protection: lithium iron phosphate batteries are generally considered to be free of any heavy metals and rare metals (nickel hydrogen batteries need rare metals), non-toxic (SGS certified), non polluting, and in compliance with European ROHS regulations.



Samples Show



Lithium Iron Phosphate Forklift Lithium Battery 80V 350Ah Customizable 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.Lithium Iron Phosphate Forklift Lithium Battery 80V 350Ah Customizable 1Lithium Iron Phosphate Forklift Lithium Battery 80V 350Ah Customizable 2Lithium Iron Phosphate Forklift Lithium Battery 80V 350Ah Customizable 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
