51.2V 200Ah Lithium Ion Phosphate Battery Forklift Battery System

51.2V 200Ah Lithium Ion Phosphate Battery Forklift Battery System

  • 51.2V 200Ah Lithium Ion Phosphate Battery Forklift Battery System
51.2V 200Ah Lithium Ion Phosphate Battery Forklift Battery System
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/IEC
Model Number: EK-CP-0886
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Forklift Lithium Battery Product Model: EK-CP-0886
Rated Capacity: 200Ah Rated Voltage: 51.2V
Battery Pack Size: 956mm * 375mm * 570mm Battery Pack Weight: 430kg
High Light:

200Ah lithium ion phosphate battery

,

forklift battery system CE

,

lithium ion phosphate battery

43A00-115RRA01,51.2V200Ah Lithium Iron Phosphate Forklift Battery System

Technical Parameters



NO. Item Specification Remark
1 Size 956mm*375mm*570mm /
2 Combination mode 7P16S /
3 Rated capacity 200Ah 25±2℃,1.0C
4 Nominal voltage 51.2 /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈430kg /
7 Total power of module 10.24kwh /
8 Maximum charging voltage 57.6V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 43.2V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥3000 times 80%Capacity retention 1C/1C 25℃





Product Description



1. This product is the battery system of EIKTO 43a00-115rra01 common vehicle model, which is made of 28Ah lithium iron phosphate batteries in series and parallel.

2. The module is laser welded between the batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module. The module has high structural strength, and the module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

4. The structure of the battery module inside the vehicle is made of refractory materials, which greatly reduces the risk caused by heating.

5. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength;

2. Controllable process: no over welding, false welding, cracks, to ensure the perfect appearance of the battery pack;

3. Safety design: the module adopts high safety lithium iron phosphate material system;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.

6. Environmental protection: the battery is green and environmentally friendly. It does not contain or appear any toxic and harmful heavy metal elements and substances such as lead, mercury, cadmium, etc. no matter whether it is produced, used or scrapped.



Samples Show

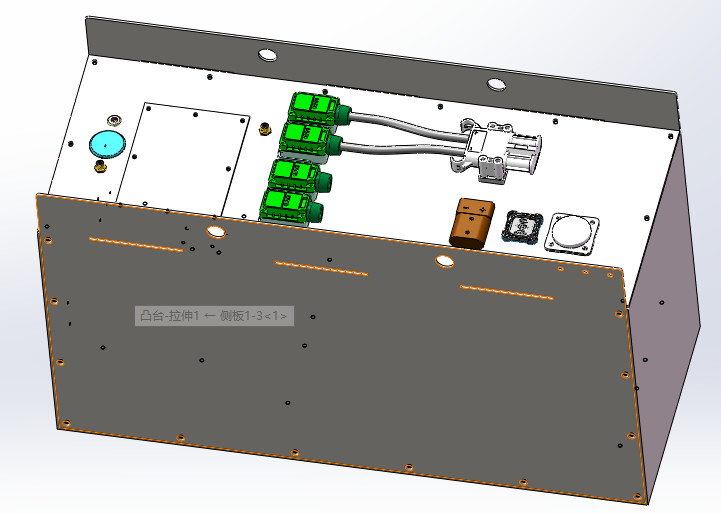

51.2V 200Ah Lithium Ion Phosphate Battery Forklift Battery System 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.51.2V 200Ah Lithium Ion Phosphate Battery Forklift Battery System 151.2V 200Ah Lithium Ion Phosphate Battery Forklift Battery System 251.2V 200Ah Lithium Ion Phosphate Battery Forklift Battery System 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
