21.6wh Forklift Lithium Ion Battery 48Volt 450Ah With Heating Function System

21.6wh Forklift Lithium Ion Battery 48Volt 450Ah With Heating Function System

  • 21.6wh Forklift Lithium Ion Battery 48Volt 450Ah With Heating Function System
21.6wh Forklift Lithium Ion Battery 48Volt 450Ah With Heating Function System
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/IEC
Model Number: EK-CP-0840
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Forklift Lithium Battery Product Model: EK-CP-0840
Rated Capacity: 450Ah Rated Voltage: 48V
Battery Pack Size: 835mm * 634mm * 784mm Battery Pack Weight: 1070Kg
High Light:

21.6wh Forklift Lithium Ion Battery

,

450Ah lithium forklift battery

,

Forklift Lithium Ion Battery 48Volt

Forklift Lithium Ion Battery 48V450Ah, With Heating Function System

Technical Parameters



NO. Item Specification Remark
1 Size 835mm*634mm*784mm /
2 Combination mode 3P15S /
3 Rated capacity 450Ah 25±2℃,1.0C
4 Nominal voltage 48V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈1070kg /
7 Total power of module 21.6wh /
8 Maximum charging voltage 54V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 40.5V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥3000 times

80%Capacity retention

1C/1C 25℃





Product Description



1. This product is EIKTO lithium iron phosphate battery, which is made of 150Ah lithium iron phosphate batteries in series and parallel.

2. Laser welding is performed between the batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory material, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength, waterproof and dustproof grade IP54;

2. Controllable process: no over welding and false welding, ensuring 100% battery damage;

3. Safety design: the lithium iron phosphate material system with high safety is adopted, and the charging is fast and safe;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.

6. Remote monitoring, real-time view of battery information, remote upgrade of battery

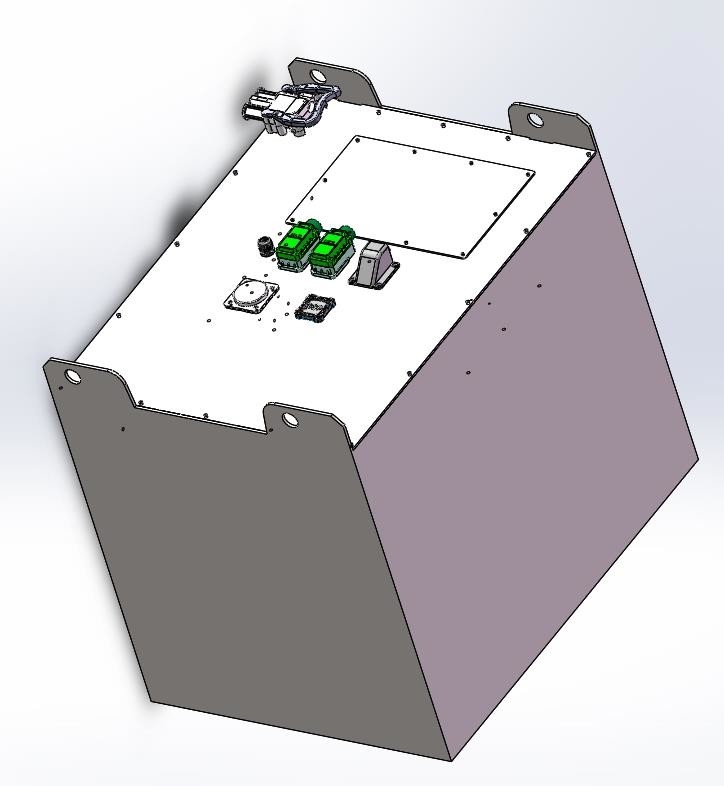

Samples Show



21.6wh Forklift Lithium Ion Battery 48Volt 450Ah With Heating Function System 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.21.6wh Forklift Lithium Ion Battery 48Volt 450Ah With Heating Function System 121.6wh Forklift Lithium Ion Battery 48Volt 450Ah With Heating Function System 221.6wh Forklift Lithium Ion Battery 48Volt 450Ah With Heating Function System 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
