EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/IEC |
| Model Number: | EK-CP-0957 |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated. |
| Payment Terms: | EFT |
| Supply Ability: | +9999 |
| Product Name: | Lithium Iron Phosphate Forklift Lithium Battery | Product Model: | EK-CP-0957 |
|---|---|---|---|
| Rated Capacity: | 405Ah | Rated Voltage: | 48V |
| Battery Pack Size: | 1030mm * 500mm * 792mm | Battery Pack Weight: | 1070kg |
| High Light: | 405Ah industrial lithium ion battery,lithium battery replacement for lead acid,industrial lithium ion battery 405Ah |
||
| NO. | Item | Specification | Remark |
| 1 | Size | 1030mm*500mm*792mm | / |
| 2 | Combination mode | 3P15S | / |
| 3 | Rated capacity | 405Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 48V | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈1070kg | / |
| 7 | Total power of module | 19.44wh | / |
| 8 | Maximum charging voltage | 54V | / |
| 9 | Maximum continuous charging current | 0.5C | 25±5℃ |
| 10 | Discharge cut-off voltage | 40.5V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life | ≥4000 times 80%Capacity retention | 1C/1C 25℃ |

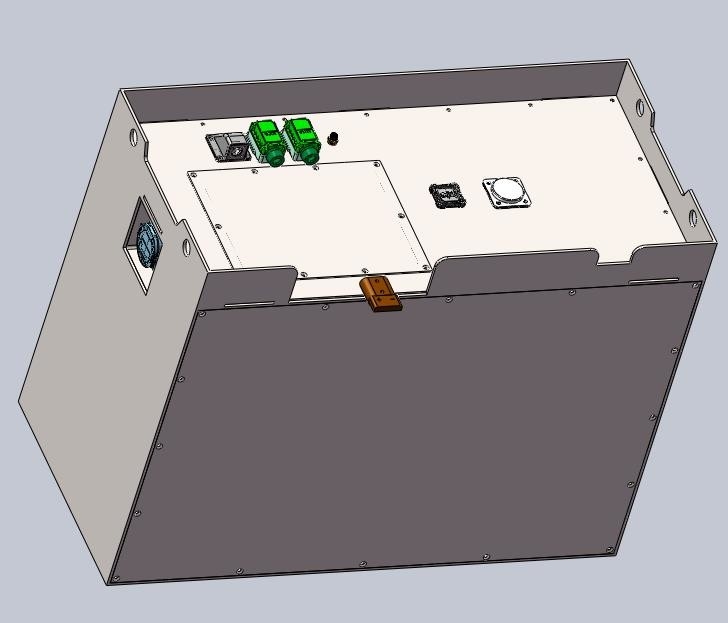

1. This product is EIKTO lithium iron phosphate battery FCTP, which is made of 135Ah lithium iron phosphate batteries in series and parallel.
2. Laser welding is performed between the batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory material, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. Reliable structure: high anti vibration structure strength, waterproof and dustproof grade IP54;
2. Controllable process: no over welding and false welding, ensuring 100% battery damage;
3. Safety design: the lithium iron phosphate material system with high safety is adopted, and the charging is fast and safe;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.
6. Remote monitoring, real-time view of battery information, remote upgrade of battery
The products are widely used in industrial vehicles, engineering vehicles and other fields.
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
