EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/IEC |
| Model Number: | EK-CP-0850 |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated. |
| Payment Terms: | EFT |
| Supply Ability: | +9999 |
| Product Name: | Lithium Iron Phosphate Forklift Lithium Battery | Product Model: | EK-CP-0850 |
|---|---|---|---|
| Rated Capacity: | 225Ah | Rated Voltage: | 25.6V |
| Model Size: | 621mm * 209mm * 625mm | Model Weight: | 180kg |
| High Light: | 25.6V 225Ah Forklift Lithium Battery,225Ah Lithium Iron Phosphate Battery,Forklift Lithium Battery UL |
||
| NO. | Item | Specification | Remark |
| 1 | Size | 621mm*209mm*625mm | / |
| 2 | Combination mode | 1P8S | / |
| 3 | Rated capacity | 225Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 25.6 | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈180kg | / |
| 7 | Total power of module | 5.76kwh | / |
| 8 | Maximum charging voltage | 28.8V | / |
| 9 | Maximum continuous charging current | 1C | 25±5℃ |
| 10 | Discharge cut-off voltage | 21.6V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life |
≥3000 times 80%Capacity retention |
1C/1C 25℃ |

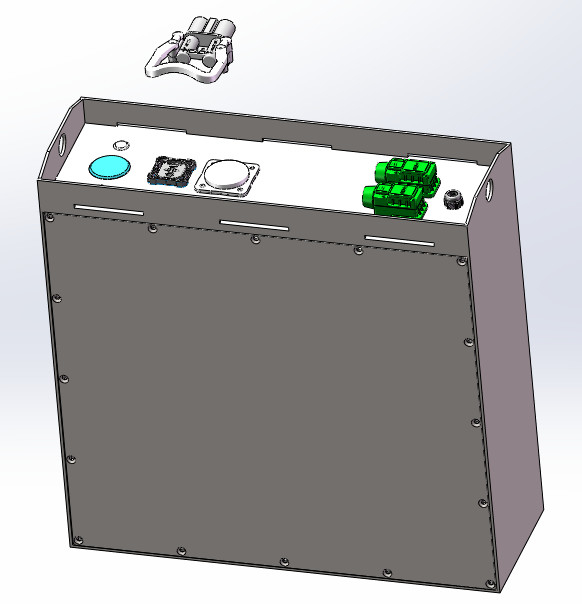

1. This product is an EIKTO forklift lithium battery, applicable to the model ejc216, which is made of - 225Ah lithium iron phosphate batteries in series and parallel.
2. The module is laser welded between the batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module. The module has high structural strength, and the module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
4. The structure of the battery module inside the vehicle is made of refractory materials, which greatly reduces the risk caused by heating.
5. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. Reliable structure: high anti vibration structure strength;
2. Controllable process: no over welding, false welding, cracks, to ensure the perfect appearance of the battery pack;
3. Safety design: the module adopts high safety lithium iron phosphate material system;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.
6. Environmental protection: the battery is green and environmentally friendly. It does not contain or appear any toxic and harmful heavy metal elements and substances such as lead, mercury, cadmium, etc. no matter whether it is produced, used or scrapped.
The products are widely used in industrial vehicles, engineering vehicles and other fields.
