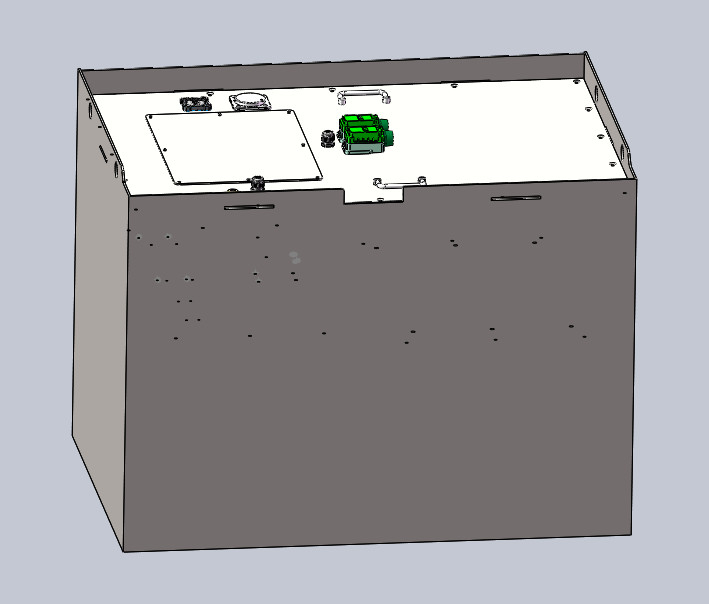

76.8v600ah Lithium Tractor Battery Lead Acid Battery Replacement

76.8v600ah Lithium Tractor Battery Lead Acid Battery Replacement

  • 76.8v600ah Lithium Tractor Battery Lead Acid Battery Replacement
76.8v600ah Lithium Tractor Battery Lead Acid Battery Replacement
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0685
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Forklift Lithium Battery Product Model: EK-CP-0685
Rated Capacity: 600Ah Rated Voltage: 76.8V
Size Of Battery Pack: 1028mm*710mm*780mm Weight Of Battery Pack: 550Kg
High Resistance: ≧50MΩ(DC500V) Total Power Of Module: 46.08kwh
High Light:

600ah Lithium Tractor Battery

,

600Ah Lithium Battery

,

76.8v Lithium Tractor Battery

76.8v600ah tractor lithium battery, mature lead-acid battery replacement scheme.

Technical Parameters



NO. Item Specification Remark
1 Size

1028mm*710mm*780mm



/
2 Combination mode 4P24S /
3 Rated capacity 600Ah 25±2℃,1.0C
4 Nominal voltage 76.8V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈550kg /
7 Total power of module 46.08kwh /
8 Maximum charging voltage 86.4V /
9 Maximum continuous charging current 0.5C 25±5℃
10 Discharge cut-off voltage 64.8V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥3000 times

80%Capacity retention

1C/1C 25℃





Product Description



1. This product is an EIKTO lithium iron phosphate battery module, which is made of 150Ah lithium iron phosphate batteries in series and in parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength;

2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;

3. Safety design: adopt high safety lithium iron phosphate material system;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.



Samples Show



76.8v600ah Lithium Tractor Battery Lead Acid Battery Replacement 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.76.8v600ah Lithium Tractor Battery Lead Acid Battery Replacement 176.8v600ah Lithium Tractor Battery Lead Acid Battery Replacement 276.8v600ah Lithium Tractor Battery Lead Acid Battery Replacement 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
