3.84kwh Lithium Tractor Battery 25.6v150ah Fast Installation

3.84kwh Lithium Tractor Battery 25.6v150ah Fast Installation

  • 3.84kwh Lithium Tractor Battery 25.6v150ah Fast Installation
3.84kwh Lithium Tractor Battery 25.6v150ah Fast Installation
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 25.6V150Ah
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: XT03 Lithium Iron Phosphate Forklift Lithium Battery Product Model: 25.6V150Ah
Rated Capacity: 150Ah Rated Voltage: 25.6V
Size Of Battery Pack: 770mm*274mm*610mm Weight Of Battery Pack: 263kg
High Resistance: ≧50MΩ(DC500V) Total Power Of Module: 3.84kwh
High Light:

3.84kwh Lithium Tractor Battery

,

Tractor lithium ion battery system

,

Lithium Tractor Battery 25.6v150ah

Tractor lithium ion battery system, 25.6v150ah, fast installation and simple operation.

Technical Parameters



NO. Item Specification Remark
1 Size 770mm*274mm*610mm /
2 Combination mode 5P8S /
3 Rated capacity 150Ah 25±2℃,1.0C
4 Nominal voltage 25.6V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈263kg /
7 Total power of module 3.84kwh /
8 Maximum charging voltage 28.8 /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 19.2 /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥3000 times

80%Capacity retention

1C/1C 25℃






Product Description

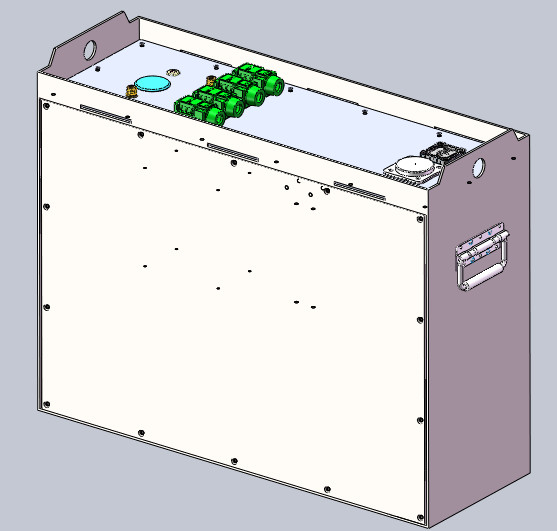

1. This product is an EIKTO lithium iron phosphate battery module, which is made of 30ah lithium iron phosphate batteries in series and in parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. The box is waterproof IP54, and the structure is firm

2. Reliable electrical performance to meet long-time work

3. Fast charging, safe and reliable;

4. It has remote monitoring and real-time viewing of battery information



Samples Show



3.84kwh Lithium Tractor Battery 25.6v150ah Fast Installation 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.3.84kwh Lithium Tractor Battery 25.6v150ah Fast Installation 13.84kwh Lithium Tractor Battery 25.6v150ah Fast Installation 23.84kwh Lithium Tractor Battery 25.6v150ah Fast Installation 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
