Lithium Battery 48V405Ah Forklift Lithium Battery Equipped With Battery Heating System

Lithium Battery 48V405Ah Forklift Lithium Battery Equipped With Battery Heating System

  • Lithium Battery 48V405Ah Forklift Lithium Battery Equipped With Battery Heating System
Lithium Battery 48V405Ah Forklift Lithium Battery Equipped With Battery Heating System
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0841
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: EK-CP-0841
Rated Capacity: 405Ah Rated Voltage: 48V
Size Of Battery Pack: 970mm*520mm*550mm Weight Of Battery Pack: 330kg
High Light:

UN38.3 Forklift Lithium Battery

,

Lithium Battery 405Ah

,

Battery Heating Forklift Lithium Battery

Lithium Battery 48V405Ah Forklift Lithium Battery Can Be Equipped With Battery Heating System

Technical Parameters



NO. Item Specification Remark
1 Size 970mm*520mm*550mm /
2 Combination mode 3P15S /
3 Rated capacity 405Ah 25±2℃,1.0C
4 Nominal voltage 48V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈330kg /
7 Total power of module 19.44kwh /
8 Maximum charging voltage 54V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 40.5V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃



Product Description

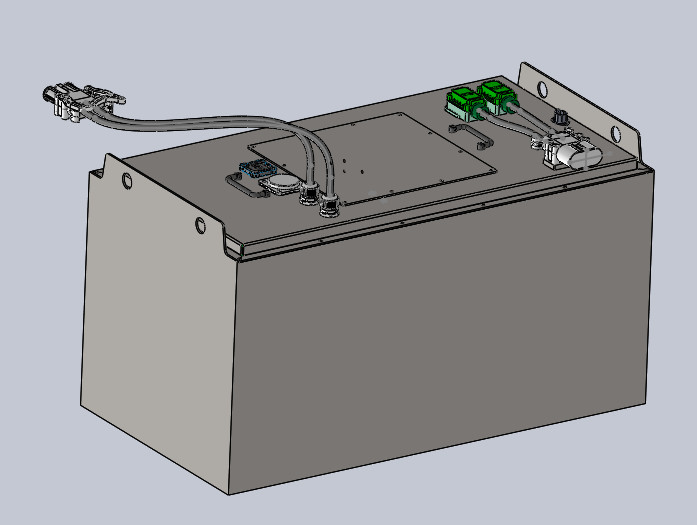

1. This product is made of 135Ah lithium iron phosphate batteries in series and in parallel. Each layer is equipped with 13 135Ah cells, a total of 3 layers of standard modules of lithium iron phosphate batteries.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength;

2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;

3. Safety design: adopt high safety lithium iron phosphate material system;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.



Samples Show



Lithium Battery 48V405Ah Forklift Lithium Battery Equipped With Battery Heating System 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.





Lithium Battery 48V405Ah Forklift Lithium Battery Equipped With Battery Heating System 1Lithium Battery 48V405Ah Forklift Lithium Battery Equipped With Battery Heating System 2Lithium Battery 48V405Ah Forklift Lithium Battery Equipped With Battery Heating System 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
