TEU Forklift Lithium Ion Battery System 76.8V405Ah

TEU Forklift Lithium Ion Battery System 76.8V405Ah

  • TEU Forklift Lithium Ion Battery System 76.8V405Ah
TEU Forklift Lithium Ion Battery System 76.8V405Ah
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 76.8V405Ah
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: 76.8V405Ah
Rated Capacity: 405Ah Rated Voltage: 76.8V
Product Size: 1080mm*990mm*495mm Product Weight: 1130KG

TEU Forklift Lithium Ion Battery System 76.8V405Ah

Technical Parameter



NO. Project Performance Remarks
1 Dimensions 1080mm*990mm*495mm /
2 Serial-parallel Connection 3P24S /
3 Rated Capacity 405Ah 25±2℃,1.0C
4 Nominal Voltage 76.8V /
5 Insulating Resistant ≧50MΩ(DC500V) 25±2℃
6 Weight ≈1130KG /
7 Module Capacity 31.104kWh /
8 Max. Charging Voltage 86.4V /
9 Max. Constant Charging Current 1C 25±5℃
10 Discharge cut-off Voltage 57.6V /
11 Max. Constant Discharging Current 1C 25±5℃
12 Standard Cycle Life ≥4000 times 80%Capacity retention 1C/1C 25℃




Product Description



1. Lithium battery iron phosphate lithium iron module 3.2v135Ah square aluminum shell heating system

2. This product is a standard FCTP module of two EIKTO 12 core 3-layer lithium iron phosphate batteries, and YJT40110413-135Ah lithium iron phosphate batteries are formed in series and parallel.

3. Laser welding is performed between batteries using iron connectors.

4. The iron material is used as the shell to stabilize the module, which has high structural strength.

5. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.



Product Advantage



1. Lithium battery iron phosphate lithium iron module 3.2v135Ah square aluminum shell heating system

2. This product is a standard FCTP module of two EIKTO 12 core 3-layer lithium iron phosphate batteries, and YJT40110413-135Ah lithium iron phosphate batteries are formed in series and parallel.

3. Laser welding is performed between batteries using iron connectors.

4. The iron material is used as the shell to stabilize the module, which has high structural strength.

5. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

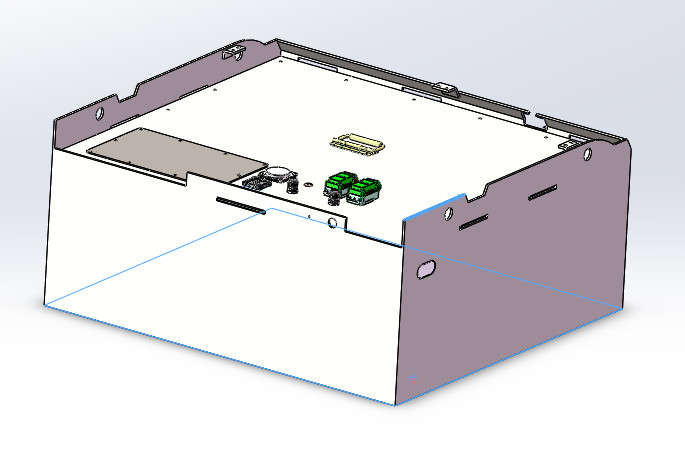

Product Display



TEU Forklift Lithium Ion Battery System 76.8V405Ah 0





Application



The products are widely used in the field of industrial vehicles

TEU Forklift Lithium Ion Battery System 76.8V405Ah 1TEU Forklift Lithium Ion Battery System 76.8V405Ah 2TEU Forklift Lithium Ion Battery System 76.8V405Ah 3



Packaging & Delivery


1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
