EIKTO Standing Forklift Lithium Battery 12.8v 200Ah

EIKTO Standing Forklift Lithium Battery 12.8v 200Ah

  • EIKTO Standing Forklift Lithium Battery 12.8v 200Ah
EIKTO Standing Forklift Lithium Battery 12.8v 200Ah
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 12.8V200Ah
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: 12.8V200Ah
Rated Capacity: 200Ah Rated Voltage: 12.8V
Product Size: 621mm*281mm*625mm Product Weight: 277kg
High Light:

Standing Forklift Lithium Battery 200Ah


12 volt 200ah lithium battery


12.8 volt battery 200Ah

EIKTO T20AP Standing (With Heating Function) 12.8v200Ah

Technical Parameter


NO. Project Performance Remarks
1 Size 621mm*281mm*625mm /
2 Combination mode 7P4S /
3 Rated capacity 200Ah 25±2℃,1.0C
4 Nominal voltage 12.8V /
5 Nominal internal resistance ≧50MΩ(DC1000V) 25±2℃
6 Weight 277kg /
7 Module Power 2.56kwh /
8 Maximum charging voltage 14.4V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 10.8V /
11 Maximum continuous discharge current 2C 25±5℃
12 Standard cycle life ≥3000 times 80%Capacity retention 1C/1C 25℃


Product Description

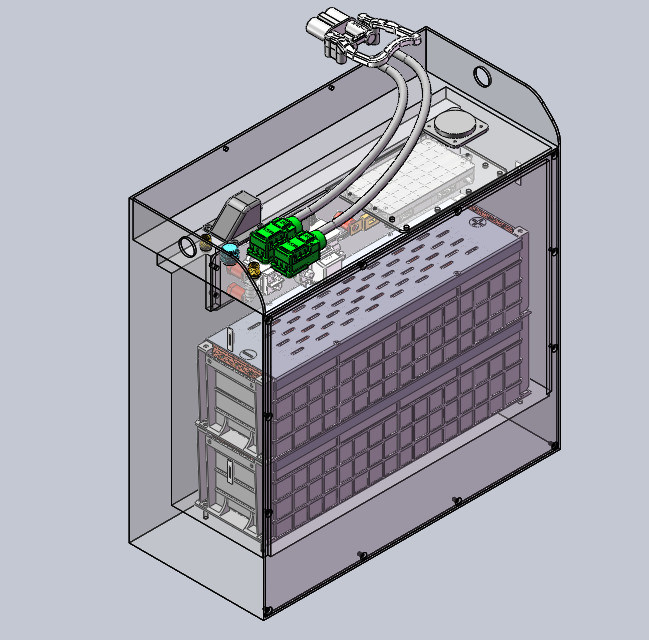

1. Lithium battery iron phosphate lithium iron module 3.2v28Ah square aluminum shell with heating function system

2. This product is a plastic shell standard module of lithium iron phosphate battery composed of EIKTO 7p4s series and parallel connection, which is made of YJT19124133-28ah lithium iron phosphate battery series and parallel connection.

3. Laser welding is performed between batteries using iron connectors.

4. The iron material is used as the shell to stabilize the module, which has high structural strength.

5. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

6. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

7. The module has the advantages of light weight, strong stability, high safety and long cycle life.


Product Advantage


1. High safety performance: the P-O bond in lithium iron phosphate crystal is stable and difficult to decompose. Even at high temperature or overcharge, it will not collapse and heat like lithium cobalt oxide or form strong oxidizing substances, so it has good safety;

2. Long service life: lithium iron phosphate battery refers to a lithium-ion battery using lithium iron phosphate as the cathode material. The cycle life of long-life lead-acid battery is about 300 times, up to 500 times, while the cycle life of lithium iron phosphate power battery is more than 2000 times, and the standard charging (5-hour rate) can be used for 2000 times;

3. Good high temperature performance: the peak electric heating value of lithium iron phosphate can reach 350 ℃ -500 ℃, while that of lithium manganate and lithium cobalt oxide is only about 200 ℃. The working temperature range is wide (-20c--75c) and has high temperature resistance. The peak value of lithium iron phosphate electric heating can reach 350 ℃ -500 ℃, while lithium manganate and lithium cobalt oxide are only about 200 ℃;

4. Large capacity: when the battery works under the condition of full charge, the capacity will quickly fall below the rated capacity. This phenomenon is called memory effect. For example, nickel hydrogen and nickel cadmium batteries have memory, while lithium iron phosphate batteries do not. No matter what state the battery is in, it can be used as soon as it is charged, and there is no need to discharge it before charging;

5. Environmental protection: lithium iron phosphate batteries are generally considered to be free of any heavy metals and rare metals (nickel metal hydride batteries need rare metals), non-toxic (SGS certified), pollution-free, and in line with European ROHS regulations.


Product Display


EIKTO Standing Forklift Lithium Battery 12.8v 200Ah 0




The products are widely used in industrial vehicles, engineering vehicles, electric tools and other fields.

EIKTO Standing Forklift Lithium Battery 12.8v 200Ah 1EIKTO Standing Forklift Lithium Battery 12.8v 200Ah 2EIKTO Standing Forklift Lithium Battery 12.8v 200Ah 3


Packaging & Delivery

1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.


Competitive Advantages

1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
