Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm

Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm

  • Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm
Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 80V525Ah
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Toyota Forklift 3te25 Product Model: YJT40110413-80V-525Ah
Rated Capacity: 525Ah Rated Voltage: 80V
Model Size: 1156mm*659mm*784mm Model Weight: 1480kg

Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm

Technical Parameter



NO. Project Performance Remarks
1 Dimensions 1156mm*659mm*784mm /
2 Serial-parallel Connection 3P25S /
3 Rated Capacity 525Ah 25±2℃,1.0C
4 Nominal Voltage 80V /
5 Insulating Resistant ≧50MΩ(DC1000V) 25±2℃
6 Weight ≈1480kg /
7 Module Capacity 42kwh /
8 Max. Charging Voltage 90V /
9 Max. Constant Charging Current 1C 25±5℃
10 Discharge cut-off Voltage 67.5V /
11 Max. Constant Discharging Current 1C 25±5℃
12 Standard Cycle Life ≥4000 times 80%Capacity retention 1C/1C 25℃




Product Description



Toyota forklift 3te25 80V525Ah battery pack

1. This product EIKTO 3te25 is a common battery pack for Toyota forklift

2. It is serial-parallel connected by YJT40110413-175Ah lithium iron phosphate batteries.The module uses iron connectors to conduct laser welding between batteries.

3. The iron material is used as the shell to stabilize the module, which has high structural strength, and the module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

4. The structure of the battery module inside the forklift is made of refractory materials, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety, long cycle life and so on.



Product Advantage



1. Reliable structure: high anti vibration structure strength;

2. Controllable process: no over welding, false welding, cracks, to ensure the perfect appearance of the battery pack;

3. Safety design: the module adopts high safety lithium iron phosphate material system;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.

6. Environmental protection: the battery is green and environmentally friendly. It does not contain or appear any toxic and harmful heavy metal elements and substances such as lead, mercury, cadmium, etc. regardless of manufacture, usage or scrap.

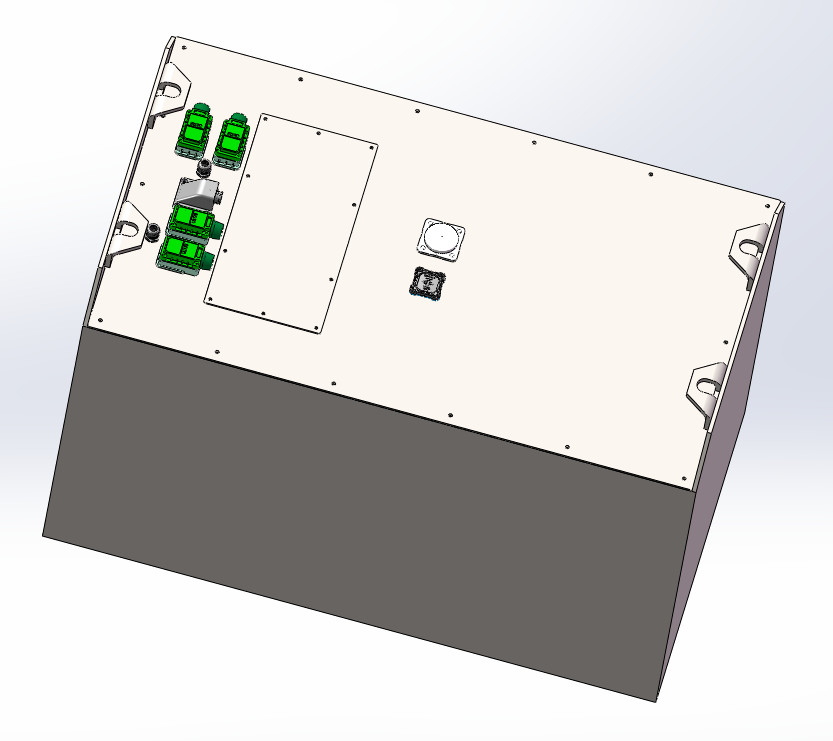

Product Display



Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm 0



Application



The products are widely used in the field of industrial vehicles

Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm 1Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm 2Toyota Forklift 3te25 80V525Ah Battery Pack 1156mm*659mm*784mm 3



Packaging & Delivery


1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
