EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm Energy Storage 75kg

EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm Energy Storage 75kg

  • EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg
  • EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg
  • EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg
  • EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg
EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT40110413-135Ah-M16
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: within 10 days if order under 1000 pieces; negotiation if over
Payment Terms: EFT
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT40110413-135Ah-M16
Rated Capacity: 135Ah Rated Voltage: 51.2/25.6/12.8V
Battery Pack Size: 366.2mm*427.6mm*241.22mm Battery Pack Weight: 75kg
High Light:

EIKTO Lithium Battery Module

,

Powerful Energy Storage 75kg

,

Lithium Battery Module 135Ah

Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO Powerful Energy Storage Iron Module



Technical Parameters





NO. Item Specification Remark
1 Dimension 366.2mm*427.6mm*241.22mm /
2 Combination mode 1P16S 2P8S 4P4S /
3 Rated Capacity 135Ah/270Ah/540Ah 25±2℃,1.0C
4 Nominal Voltage 51.2/25.6/12.8V /
5 insulation resistance ≧50MΩ(DC1000V) 25±2℃
6 Module Weight ≈75kg /
7 Module energy 6.912kwh /
8 Max Charging Voltage 57.6/28.8/14.4V /
9 Maximum Continuous Charging Current 1C 25±5℃
10 Discharge Cut-off Voltage 40/20/10V /
11 Max. Continuous Discharging Current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃





Product Description



Lithium battery Lithium iron phosphate Iron Module 3.2V135AH square aluminum shell Heating system



This product is the standard module of EIKTO 16-core lithium iron phosphate battery, which is formed by series and parallel connection of YJT40110413-135AH lithium iron phosphate battery. Laser welding is carried out between the cells using Iron connecting pieces. The Iron material is used as envelop to stabilize the module, which has high structural strength. The module can be equipped with a battery heating system, so that the battery can work normally in low temperature environment. The internal structure of the module is made of flame resistant material, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti-vibration structure strength;

2. Controllable process: no over welding and false welding to ensure 100% no damage to the cell;

3. Safety design: high safety lithium iron phosphate material system is adopted;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with heating system to make the battery work normally in low temperature environment.

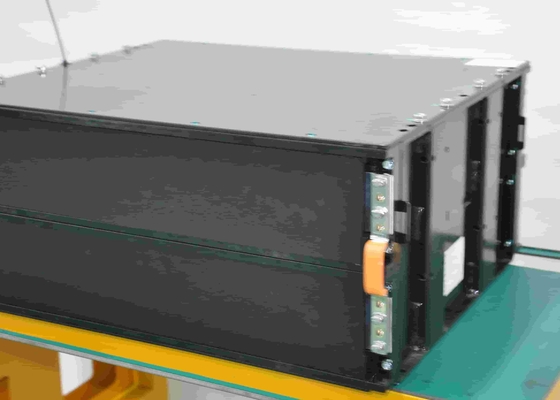

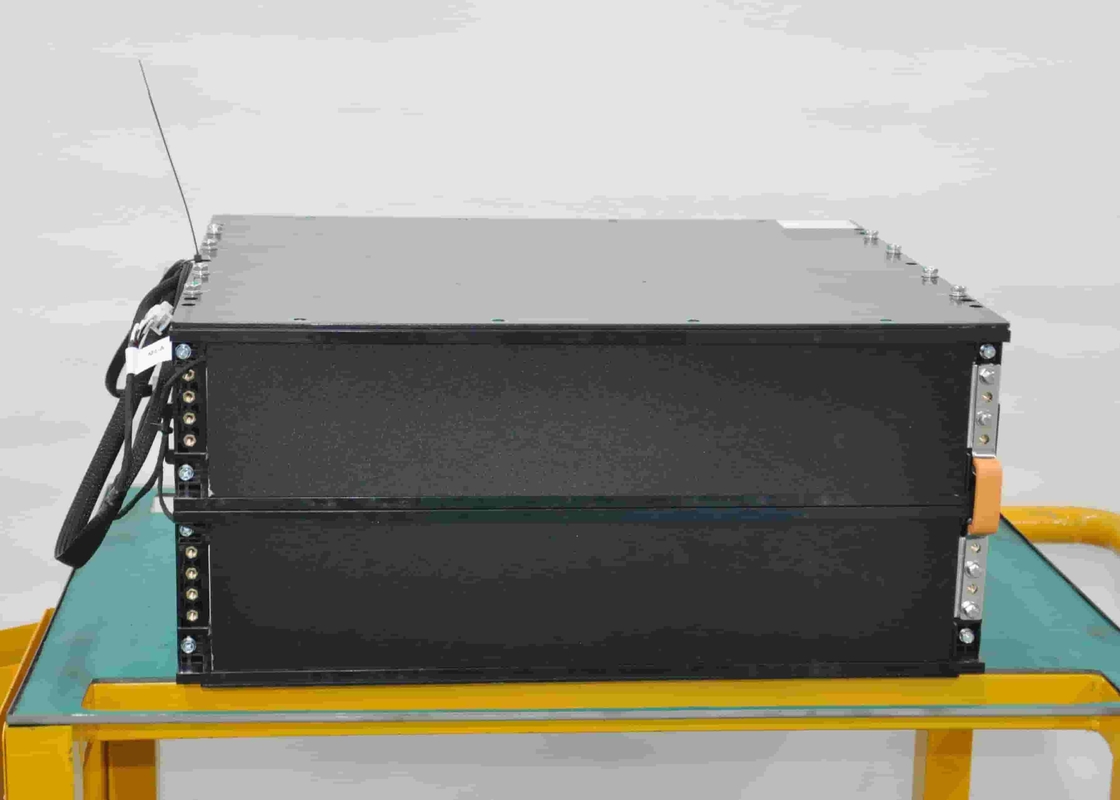

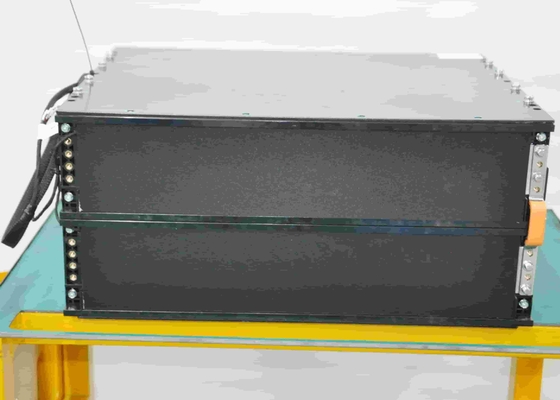

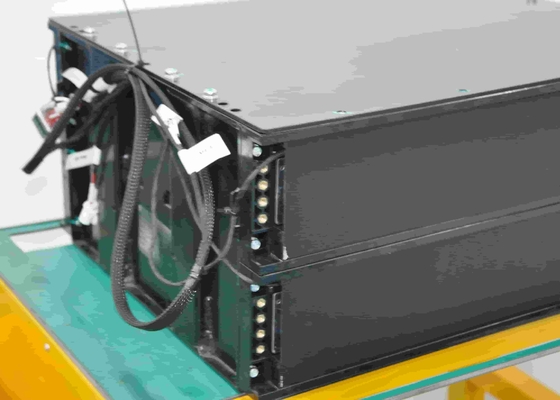

Samples Show



EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg 0EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg 1EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg 2EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg 3EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg 4





Application



EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg 5EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg 6EIKTO Lithium Battery Module 366.2mmx427.6mmx241.22mm  Energy Storage 75kg 7



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
