Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh

Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh

  • Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh
  • Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh
  • Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh
  • Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh
Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT40110413-135Ah-M8
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: within 10 days if order under 1000 pieces; negotiation if over
Payment Terms: EFT
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT40110413-135Ah-M8
Rated Capacity: 135Ah Rated Voltage: 25.6/12.8/6.4V
Battery Pack Size: 360.6mm*427.6mm*119mm Battery Pack Weight: ≈33kg
High Light:

Energy Storage Lithium Iron Phosphate Battery

,

LFP lithium iron lifepo4 battery

,

Lithium Iron Phosphate Battery 3.456kwh

Lithium Battery M8 LFP 3.456kwh EIKTO Powerful Energy Storage Iron Module 33kg





Technical Parameters



NO. Item Specification Remark
1 Dimension 360.6mm*427.6mm*119mm /
2 Combination mode 1P8S 2P4S 4P2S /
3 Rated Capacity 135Ah/270Ah/540Ah 25±2℃,1.0C
4 Nominal Voltage 25.6/12.8/6.4V /
5 insulation resistance ≧50MΩ(DC1000V) 25±2℃
6 Module Weight ≈33kg /
7 Module energy 3.456kwh /
8 Max Charging Voltage 28.8/14.4/7.2V /
9 Maximum Continuous Charging Current 1C 25±5℃
10 Discharge Cut-off Voltage 20/10/5V /
11 Max. Continuous Discharging Current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃



Product Description



Lithium battery Lithium iron phosphate Iron Module 3.2V135AH square aluminum shell Heating system



This product is the standard module of EIKTO 8-core lithium iron phosphate battery, which is formed by series and parallel connection of YJT40110413-135AH lithium iron phosphate battery. Laser welding is carried out between the cells using Iron connecting pieces. The Iron material is used as envelop to stabilize the module, which has high structural strength. The module can be equipped with a battery heating system, so that the battery can work normally in low temperature environment. The internal structure of the module is made of flame resistant material, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti-vibration structure strength;

2. Controllable process: no over welding and false welding to ensure 100% no damage to the cell;

3. Safety design: high safety lithium iron phosphate material system is adopted;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with heating system to make the battery work normally in low temperature environment.

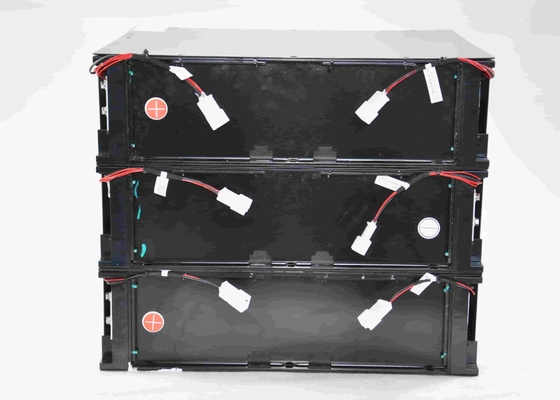

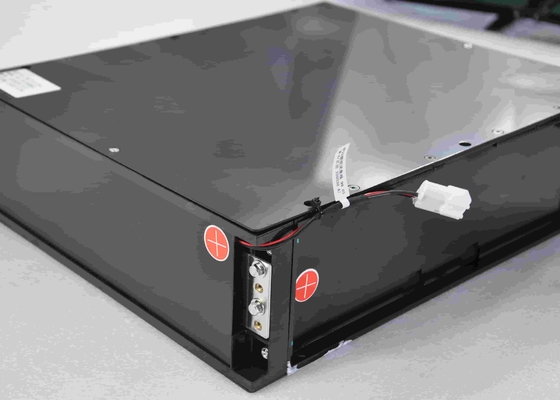

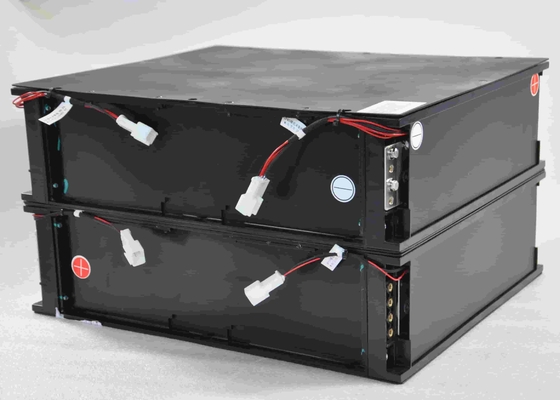

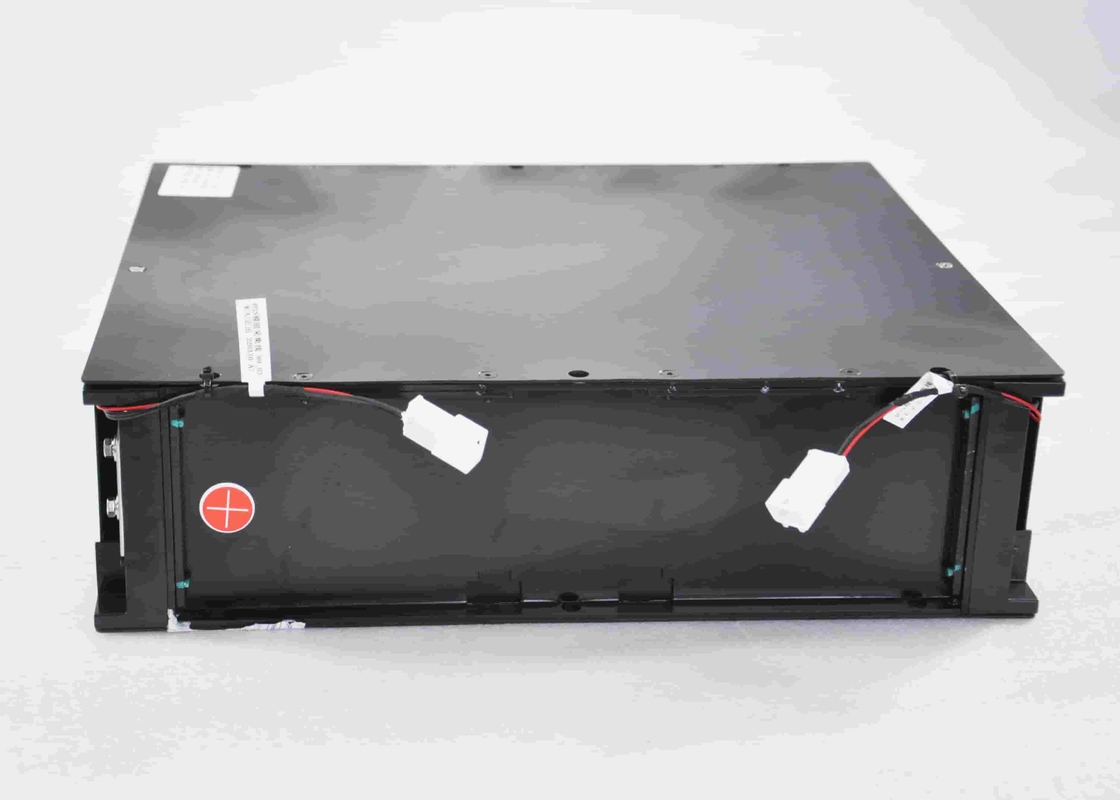

Samples Show



Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh 0Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh 1Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh 2Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh 3Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh 4



Application



Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh 5Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh 6Energy Storage Lithium Iron Phosphate Battery Electric Vehicle 3.456kwh 7





Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
