EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm

EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm

  • EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm
  • EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm
  • EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm
  • EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm
EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT40110413-135Ah-M12
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: within 10 days if order under 1000 pieces; negotiation if over
Payment Terms: EFT
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: YJT40110413-135Ah-M12
Rated Capacity: 135Ah Rated Voltage: 38.4/19.2/12.8/9.6V
Battery Pack Size: 517.8mm*437.2mm*115.5mm Battery Pack Weight: 47.5kg
High Light:

EIKTO Lithium Battery Module

,

12 volt lithium battery pack

,

lithium ion battery pack 38.4V

EIKTO Lithium Battery 47.5kg Aluminum Module 517.8mm*437.2mm*115.5mm M12





Technical Parameters



NO. Item Specification Remark
1 Dimension 517.8mm*437.2mm*115.5mm /
2 Combination mode 1P12S 2P6S 3P4S 4P3S /
3 Rated Capacity 135Ah/270Ah/405/540Ah 25±2℃,1.0C
4 Nominal Voltage 38.4/19.2/12.8/9.6V /
5 insulation resistance ≧50MΩ(DC1000V) 25±2℃
6 Module Weight ≈47.5kg /
7 Module energy 5.184 /
8 Max Charging Voltage 43.2/21.6/14.4/10.8V /
9 Maximum Continuous Charging Current 1C 25±5℃
10 Discharge Cut-off Voltage 30/19.2/10/7.5V /
11 Max. Continuous Discharging Current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃



Product Description



Lithium battery Lithium iron phosphate aluminum module 3.2V135AH square aluminum shell Heating system



This product is the standard module of EIKTO 12-core lithium iron phosphate battery, which is formed by series and parallel connection of YJT40110413-135AH lithium iron phosphate battery. Laser welding is carried out between the cells using aluminum connecting pieces. The aluminum material is used as envelop to stabilize the module, which has high structural strength. The module can be equipped with a battery heating system, so that the battery can work normally in low temperature environment. The internal structure of the module is made of flame resistant material, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety and long cycle life.





Product Advantages



1. Reliable structure: high anti-vibration structure strength;

2. Controllable process: no over welding and false welding to ensure 100% no damage to the cell;

3. Safety design: high safety lithium iron phosphate material system is adopted;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with heating system to make the battery work normally in low temperature environment.



Samples Show

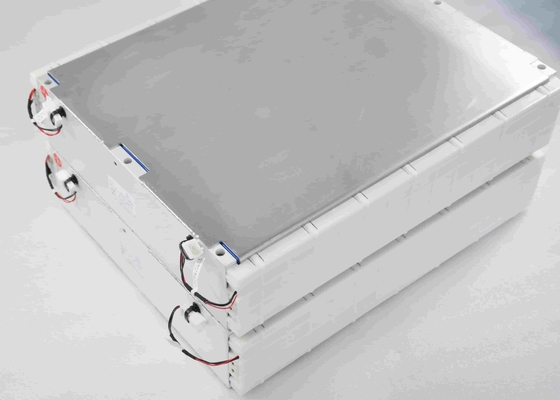

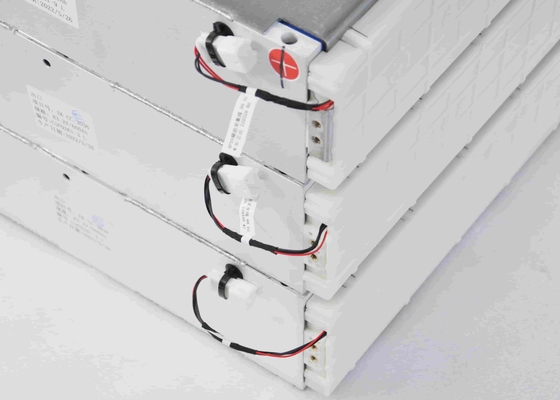

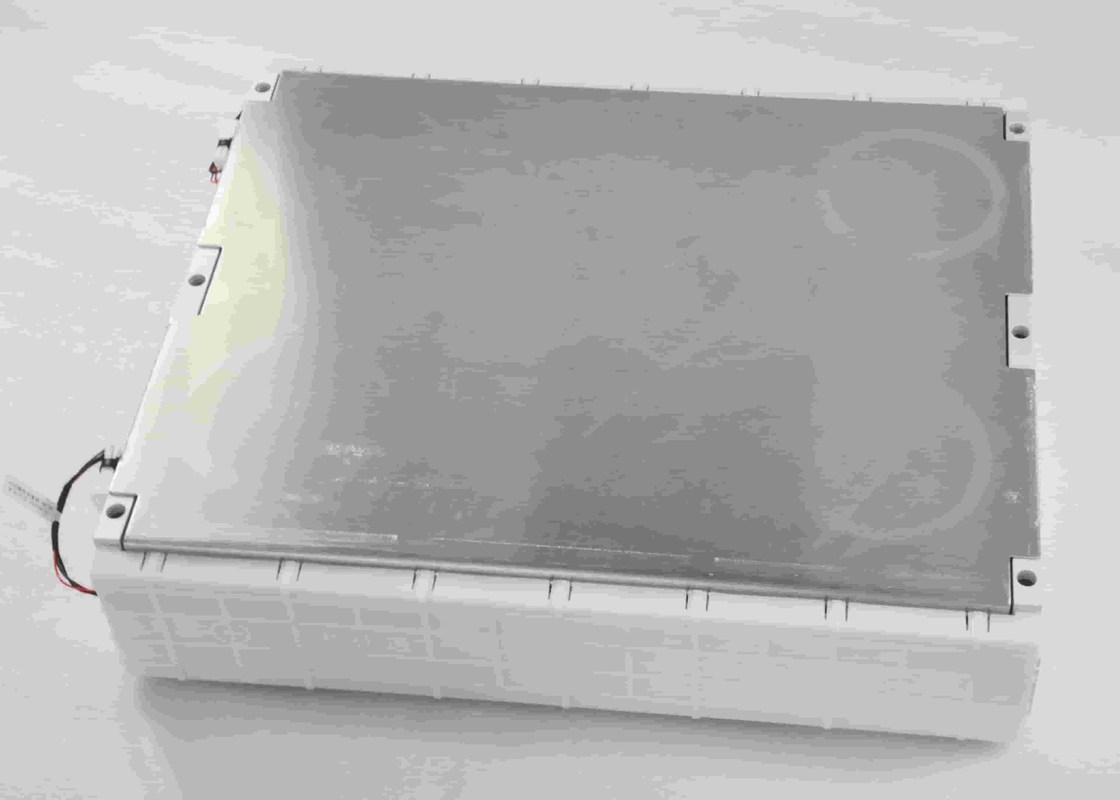

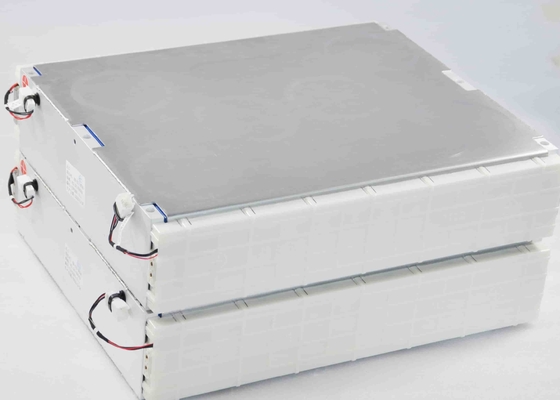

EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm 0EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm 1EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm 2EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm 3EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm 4





Application



EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm 5EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm 6EIKTO Lithium Battery Module 47.5kg Aluminum Module 517.8mmx437.2mmx115.5mm 7





Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
