Place of Origin: | China |
Brand Name: | EIKTO |
Certification: | CE/UL/UN38.3/SDS |
Model Number: | Unicarriers FB30-9 76.8V 600AH |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Negotiable |
Delivery Time: | Negotiable |
Payment Terms: | Negotiable |
Supply Ability: | Negotiable |

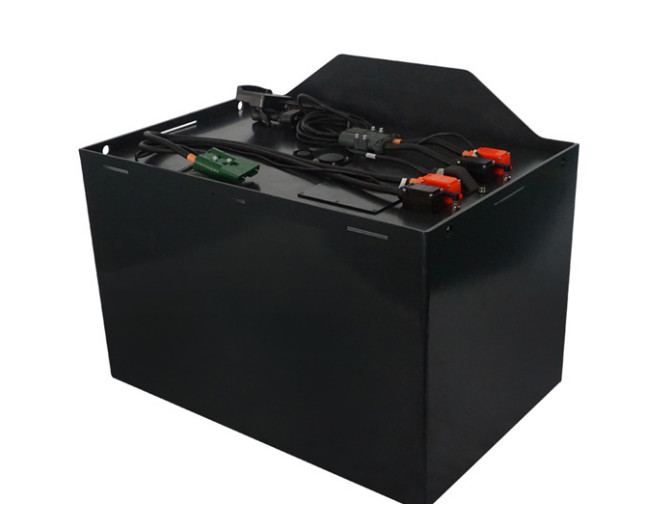

Product Name: | Unicarriers FB30-9 76.8V 600AH Lithium Battery For Electric Forklift | Product Model: | Unicarriers FB30-9 76.8V 600AH |
---|---|---|---|
Rated Capacity: | 600AH | Rated Voltage: | 76.8V |
System Charging Termination Voltage: | 57.6V | System Discharge Termination Voltage: | 41.6V |
Storage Temperature: | -20~60℃ | Working Humidity: | 10%RH~90%RH |
High Light: | Unicarriers Forklift Lithium Battery,Lithium Battery For Electric Forklift,76.8V Forklift Lithium Battery |
EKT Lithium Battery System is available in 24V,36V,48V,72V, and 80V options. Optimized for longer lifetime, safe, fast charging, and lower cost, making them the best choice for forklifts.
The battery management system matched with this product is an integrated battery management system (BMS) for yacht lithium-ion batteries. It has the functions of battery state acquisition, battery state estimation, fault analysis and diagnosis, energy management, information management, collision signal detection, high voltage interlock detection and so on. It has strong applicability and expansibility, and has the characteristics of high integration, high security and high cost performance.
Technical data | |
Rated capacity | 600 Ah |
Rated voltage of battery | 76.8 V |
Rated voltage of truck | 72 V |
Rated energy content | 46080 Wh |
Cell chemistry | Lithium iron phosphate |
Cell temperature range | -20℃ to 60 ℃ |
Working environment temperature | -20℃ to 50 ℃ |
Charging environmental temperature | 0℃ to 55 ℃ |
IP Rating | IP54 |
Weight | 1015 kg |
Dimension | 1007X667X784 mm |
Application areas: The products are mainly used in Unicarriers FB30-9
