64V60Ah 3.84KWh Lightweight Lawn Mower Lithium Iron Phosphate Battery System

64V60Ah 3.84KWh Lightweight Lawn Mower Lithium Iron Phosphate Battery System

  • 64V60Ah 3.84KWh Lightweight Lawn Mower Lithium Iron Phosphate Battery System
64V60Ah 3.84KWh Lightweight Lawn Mower Lithium Iron Phosphate Battery System
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 64V60Ah-DT-0009
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: It can be customized according to user needs, and the delivery time is determined according to the product
Payment Terms: EFT
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery System For Lawn Mowers Product Model: 64V60Ah-DT-0009
Rated Capacity: 60Ah Rated Voltage: 64V
Rated Power: 3.84KWh Battery Pack Size: 470mm*405mm*200mm
Battery Pack Weight: 46Kg
High Light:

3.84KWh lifepo4 lithium ion battery

,

64V riding lawn mower battery

,

60Ah lifepo4 lithium ion battery

64V60Ah 3.84KWh Lithium Iron Phosphate Battery System For Lawn Mowers

Technical Parameters



Product name

Lithium battery system for tractor

Product combination mode

2P20S

(Rated capacity)

60Ah

(Rated voltage)

64V

(Rated power)

3840Wh

System charging termination voltage

72V

System discharge termination voltage

50V

Monomer charging termination voltage

3.6V

Monomer discharge termination voltage

2.5V

Maximum sustainable charging current

30A

Maximum sustainable discharge current

60A

Charging temperature range

Charging temperature: 0~55℃

Discharge temperature range

Discharge temperature: - 20 ~55℃

Storage temperature

-20~60℃

Working humidity

10%RH~90%RH

Battery pack weight

≈46kg

Size

470mm*405mm*200mm

Degree of protection

IP54

Heat dissipation mode

Natural heat dissipation



Product Description



64V60Ah 3.84KWh Lithium iron phosphate battery system for lawn mowers

1. This product is Lithium iron phosphate battery system for golf cart, with good safety performance, high energy density, long cycle life, high reliability characteristics. The product is composed of YJT19124133-30Ahbattery in series and parallel, rated voltage is 51.2V, capacity 150Ah.The product is applied to golf cart.

2. The battery management system matched with this product is an integrated battery management system (BMS) for lithium ion batteries of tractors. The product has battery state acquisition, battery state estimation, fault analysis and diagnosis, energy management, information management and other functions. It has strong applicability and expansibility, with high integration, high security,great value,and other characteristics.





Product Advantages



1 The battery system can match the power display function, the battery can be equipped with a display screen, to display the battery related parameters, including the battery voltage, power and other related parameters. The specific display mode can be customized according to customer requirements.

2. Battery system CAN provide two CAN communication, one 485 communication; Therefore, the external communication of the product can be realized, such as charging machine, motor controller or vehicle controller and other equipment. Specific communication mode can be customized according to vehicle system requirements.

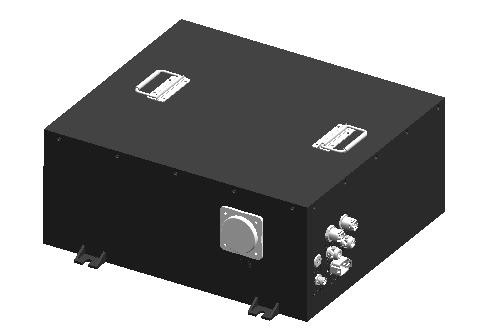

Samples Show



64V60Ah 3.84KWh Lightweight Lawn Mower Lithium Iron Phosphate Battery System 064V60Ah 3.84KWh Lightweight Lawn Mower Lithium Iron Phosphate Battery System 1



Application



The products are mainly used in lawn mower



64V60Ah 3.84KWh Lightweight Lawn Mower Lithium Iron Phosphate Battery System 2

64V60Ah 3.84KWh Lightweight Lawn Mower Lithium Iron Phosphate Battery System 3





Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
