Place of Origin: | Anhui China |
Brand Name: | EIKTO |
Certification: | CE/UL/UN38.3/SDS |
Model Number: | 76.8V350Ah-DT-0001 |
Minimum Order Quantity: | One piece |
---|---|
Price: | negotiable |
Packaging Details: | Standard safety industrial packaging |
Delivery Time: | It can be customized according to user needs, and the delivery time is determined according to the product |
Payment Terms: | EFT |
Supply Ability: | +99999 |
Product Name: | Lithium Iron Phosphate Battery System For Tractors | Product Model: | 76.8V350Ah-DT-0001 |
---|---|---|---|
Rated Capacity: | 350Ah | Rated Voltage: | 76.8V |
Rated Power: | 26.88KWh | Battery Pack Size: | 862mm*554mm*520mm |
Battery Pack Weight: | 230Kg | IP Degree: | IP67 |
High Light: | Lithium Tractor Battery 26.88KWh,lithium iron phosphate batteries IP67,IP67 Lithium Tractor Battery |
Product name | Lithium battery system for tractor |
Product combination mode | 2P24S |
(Rated capacity) | 350Ah |
(Rated voltage) | 76.8V |
(Rated power) | 26880Wh |
System charging termination voltage | 86.4V |
System discharge termination voltage | 60V |
Monomer charging termination voltage | 3.6V |
Monomer discharge termination voltage | 2.5V |
Maximum sustainable charging current | 200A |
Maximum sustainable discharge current | 250A |
Charging temperature range | Charging temperature: 0~55℃ |
Discharge temperature range | Discharge temperature: - 20 ~55℃ |
Storage temperature | -20~60℃ |
Working humidity | 10%RH~90%RH |
Battery pack weight | ≈230kg |
Size | 862mm*554mm*520mm |
Degree of protection | IP67 |
Heat dissipation mode | Natural heat dissipation |

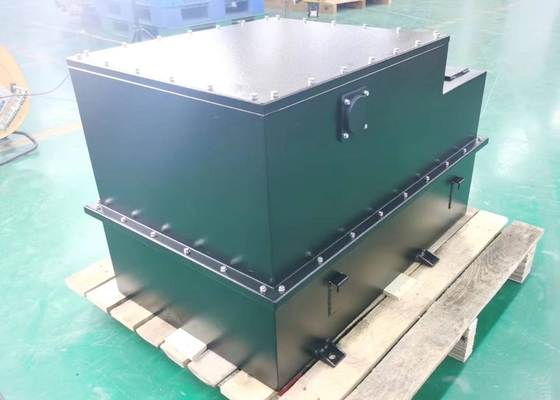

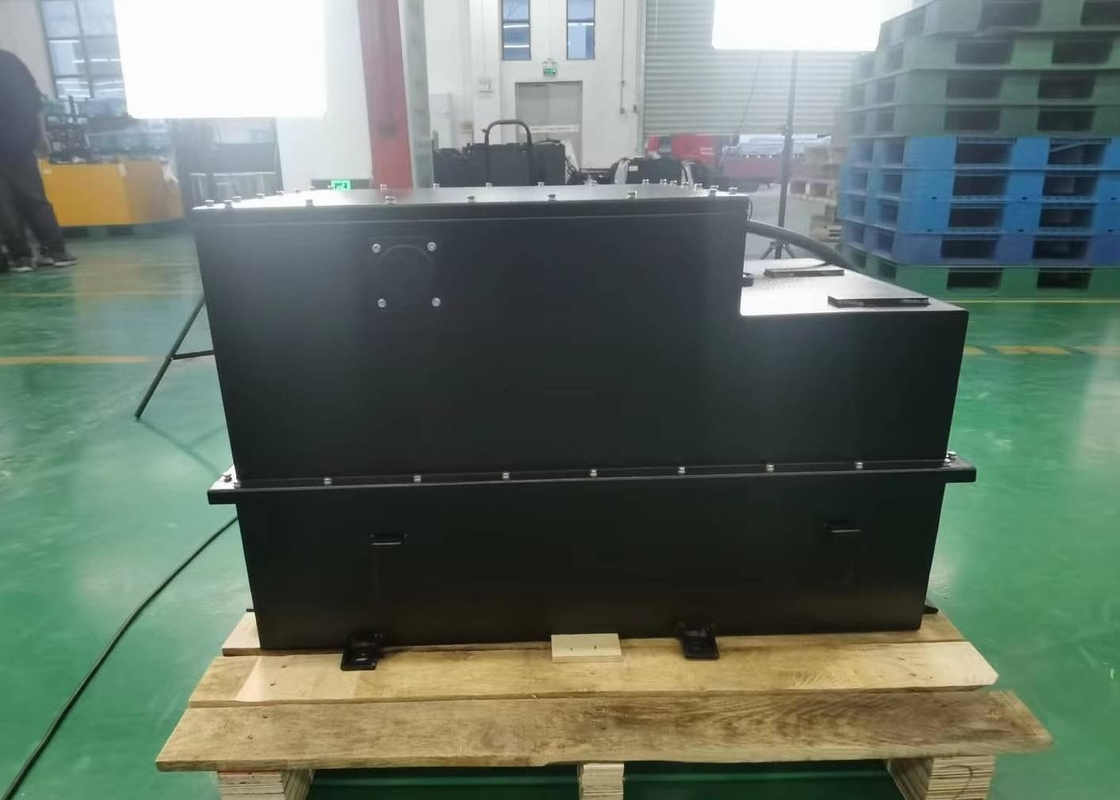

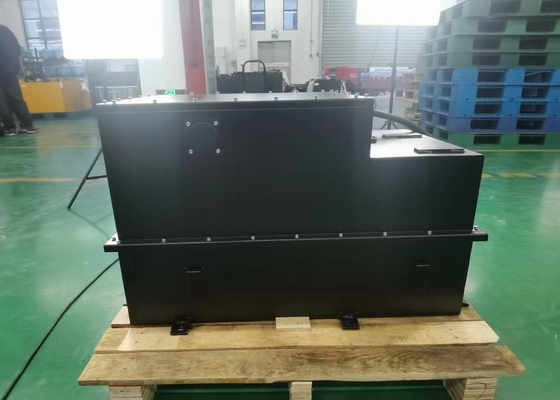

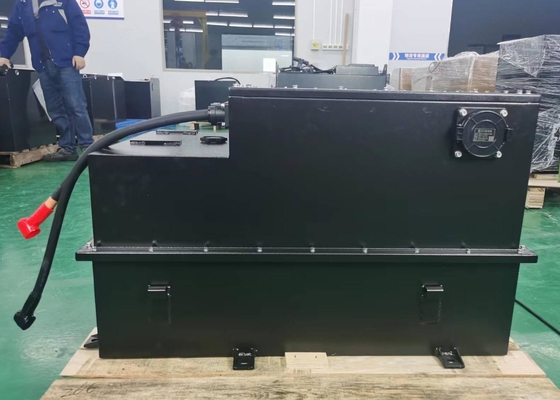

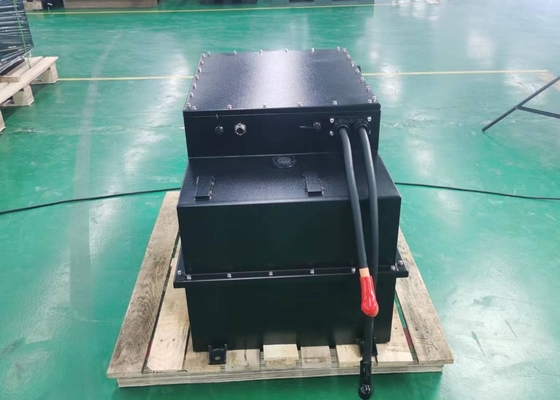

76.8V350Ah 26.88KWh IP67 Lithium battery for tractors BMS Module
1. This product is a lithium iron phosphate tractor power battery system. A 48-core battery module is used in this product, and the battery model is YJT40110413-175AH, which is composed of 2paralell and 24series connection. The rated voltage is 76.8V and the capacity is 350Ah. The product is used in tractor products.
It has the characteristics of good safety, high energy density, long cycle life and high reliability.
2. The battery management system matched with this product is an integrated battery management system (BMS) for lithium ion batteries of tractors. The product has battery state acquisition, battery state estimation, fault analysis and diagnosis, energy management, information management and other functions. It has strong applicability and expansibility, with high integration, high security,great value,and other characteristics.
1.The battery system can match the power display function, the battery can be equipped with a display screen, to display the battery related parameters, including the battery voltage, power and other related parameters. The specific display mode can be customized according to customer requirements.
2.Battery system CAN provide two CAN communication, one 485 communication; Therefore, the external communication of the product can be realized, such as charging machine, motor controller or vehicle controller and other equipment. Specific communication mode can be customized according to vehicle system requirements.
3.standard modular design, 2P24S module is a standard module we developed, the module is installed in the battery pack, with flexible use, replicability and a series of characteristics. This module can be flexibly used in a variety of scenarios.
Applied to electric tractors
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
