EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/UN38.3/SDS |
| Model Number: | 80V525Ah |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated |
| Payment Terms: | EFT |
| Supply Ability: | +9999 |
| Product Name: | Toyota Forklift 3te25 | Product Model: | YJT40110413-80V-525Ah |
|---|---|---|---|
| Rated Capacity: | 525Ah | Rated Voltage: | 80V |
| Model Size: | 1156mm*659mm*784mm | Model Weight: | 1480kg |
| High Light: | 80V525Ah Battery Pack,Forklift 3te25 Battery Pack,80V 525Ah Forklift Lithium Battery |
||
| NO. | Project | Performance | Remarks |
| 1 | Dimensions | 1156mm*659mm*784mm | / |
| 2 | Serial-parallel Connection | 3P25S | / |
| 3 | Rated Capacity | 525Ah | 25±2℃,1.0C |
| 4 | Nominal Voltage | 80V | / |
| 5 | Insulating Resistant | ≧50MΩ(DC1000V) | 25±2℃ |
| 6 | Weight | ≈1480kg | / |
| 7 | Module Capacity | 42kwh | / |
| 8 | Max. Charging Voltage | 90V | / |
| 9 | Max. Constant Charging Current | 1C | 25±5℃ |
| 10 | Discharge cut-off Voltage | 67.5V | / |
| 11 | Max. Constant Discharging Current | 1C | 25±5℃ |
| 12 | Standard Cycle Life | ≥4000 times 80%Capacity retention | 1C/1C 25℃ |

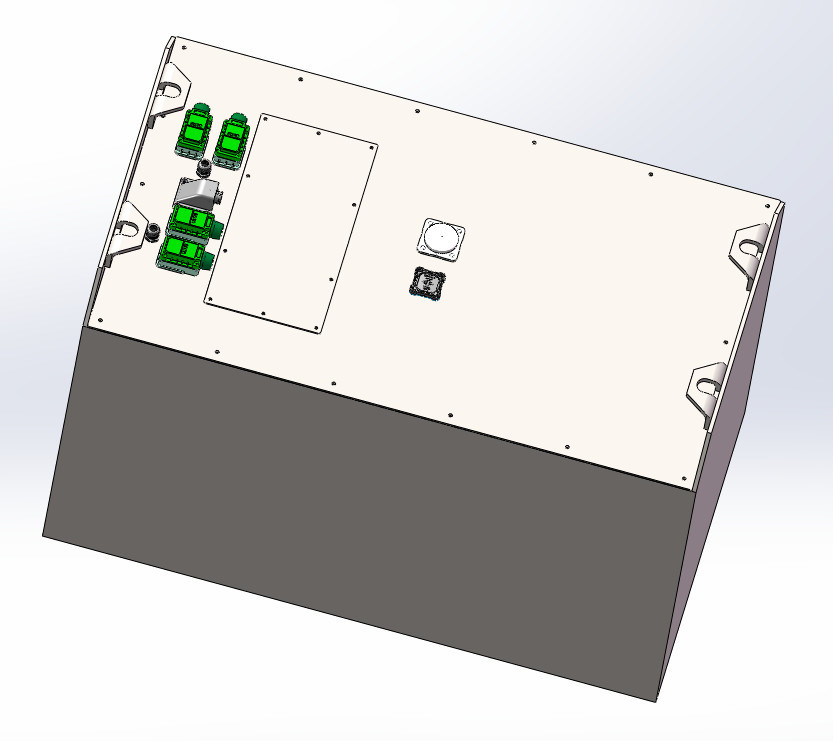

Toyota forklift 3te25 80V525Ah battery pack
1. This product EIKTO 3te25 is a common battery pack for Toyota forklift
2. It is serial-parallel connected by YJT40110413-175Ah lithium iron phosphate batteries.The module uses iron connectors to conduct laser welding between batteries.
3. The iron material is used as the shell to stabilize the module, which has high structural strength, and the module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
4. The structure of the battery module inside the forklift is made of refractory materials, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety, long cycle life and so on.
1. Reliable structure: high anti vibration structure strength;
2. Controllable process: no over welding, false welding, cracks, to ensure the perfect appearance of the battery pack;
3. Safety design: the module adopts high safety lithium iron phosphate material system;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.
6. Environmental protection: the battery is green and environmentally friendly. It does not contain or appear any toxic and harmful heavy metal elements and substances such as lead, mercury, cadmium, etc. regardless of manufacture, usage or scrap.
The products are widely used in the field of industrial vehicles
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
