25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm

25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm

  • 25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm
25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CC-2577
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Msda2 Standard Lithium Iron Phosphate Battery Pack Without Counterweight Product Model: EK-CC-2577
Rated Capacity: 270Ah Rated Voltage: 25.6V
Battery Pack Size: 560mm*263mm*510mm Weight Of Battery Pack: 90kg
High Light:

270Ah electric lift truck batteries


lithium ion forklift 270Ah


25.6V electric lift truck batteries

IP54 MSDA2 25.6V270Ah Standard Battery System Without Counterweight EK-CC-2577~

Technical Parameters


NO. Item Specification Remark
1 Size 560mm*263mm*510mm /
2 Combination mode 2P8S /
3 Rated capacity 270Ah 25±2℃,1.0C
4 Nominal voltage 25.6V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈90kg /
7 Total power of module 6.912kwh /
8 Maximum charging voltage 28.8V /
9 Maximum continuous charging current 0.75C 25±5℃
10 Discharge cut-off voltage 21.6V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥3000 times

80%Capacity retention

1C/1C 25℃

Product Description

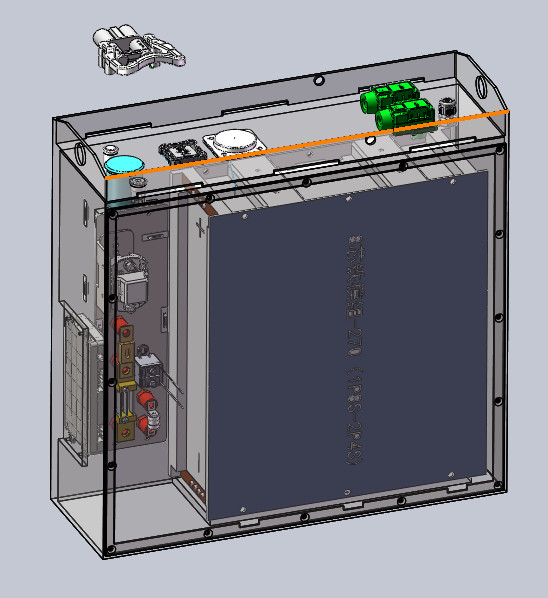

1. The msda2 non counterweight standard battery pack manufactured by EIKTO is the smallest size battery pack under this specification capacity.

2. This battery pack is independently developed by EIKTO. The internal battery pack is realized by our M8 aluminum module through internal series and parallel connection.

3. Battery system management and control is mainly through BMS and other related electrical components to meet the needs of customers on forklifts

4. The battery pack is IP54 waterproof and can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the battery pack is made of many refractory materials, which greatly reduces the risk of battery use.

6. Our battery has the advantages of strong stability, high safety, long cycle life and multiple functions.


Product Advantages


1. Reliable structure: reasonable structural layout makes the overall structure of the battery pack firm and reliable;

2. Electrical reliability: reasonable electrical design layout makes the battery pack function balanced and stable;

3. Safety design: many fire-retardant and other safety layouts are arranged inside the system, and high safety lithium iron phosphate material system is adopted;

4. It can realize multiple functions: various functions can be customized according to customer needs.


Samples Show


25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm 0



The products are widely used in industrial vehicles, engineering vehicles and other fields.25.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm 125.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm 225.6V 270Ah Electric Lift Truck Batteries IP54 560mmx263mmx510mm 3


Packaging & Delivery


1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.


Competitive Advantages

1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
