Custom Lithium Battery System 51.2v350ah Lithium Iron Phosphate Battery

Custom Lithium Battery System 51.2v350ah Lithium Iron Phosphate Battery

  • Custom Lithium Battery System 51.2v350ah Lithium Iron Phosphate Battery
Custom Lithium Battery System 51.2v350ah Lithium Iron Phosphate Battery
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0916
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 350Ah Rated Voltage: 51.2V
Size Of Battery Pack: 1030mm*350mm*780mm Weight Of Battery Pack: 1119kg
Combination Mode: 2P16S High Resistance: ≧50MΩ(DC500V)
Total Power Of Module: 17.92kwh Standard Cycle Life: ≥4000 Times 80%Capacity Retention
High Light:

Custom lithium battery systems

,

350ah Lithium Iron Phosphate Battery

,

lithium battery systems 51.2v350ah

Custom loading vehicle lithium ion battery system 51.2v350ah, lithium iron phosphate battery.

Technical Parameters



NO. Item Specification Remark
1 Size 1030mm*350mm*780mm /
2 Combination mode 2P16S /
3 Rated capacity 350Ah 25±2℃,1.0C
4 Nominal voltage 51.2V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈1119kg /
7 Total power of module 17.92kwh /
8 Maximum charging voltage 57.6V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 43.2V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥4000 times

80%Capacity retention

1C/1C 25℃



Product Description



1. This product is an EIKTO lithium iron phosphate battery module, which is composed of 175Ah lithium iron phosphate batteries in series and in parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength, waterproof and dustproof grade IP54;

2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;

3. Safety design: high safety lithium iron phosphate material system is adopted, which makes charging fast and safe;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. It has remote monitoring, real-time viewing of battery information, and remote upgrading of battery



Samples Show

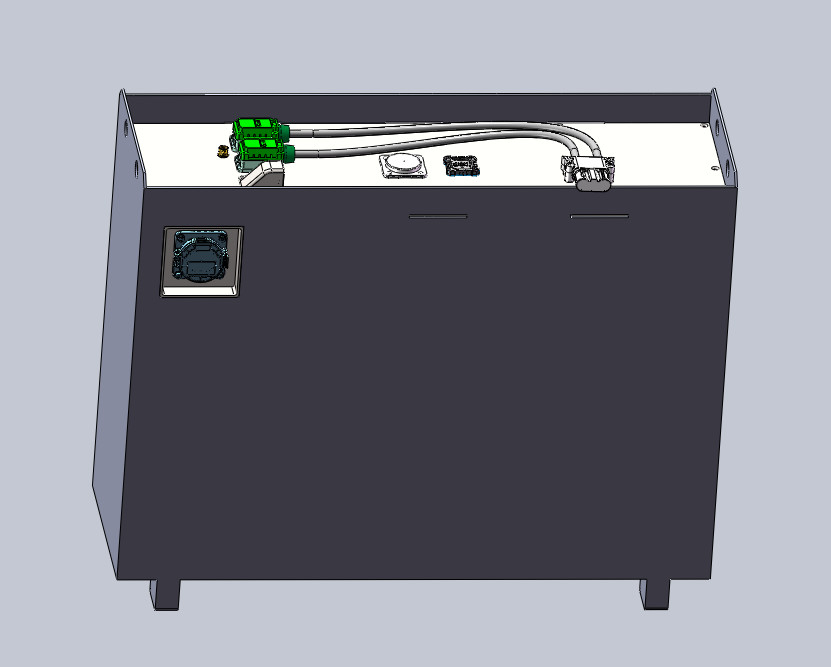

Custom Lithium Battery System 51.2v350ah Lithium Iron Phosphate Battery 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.Custom Lithium Battery System 51.2v350ah Lithium Iron Phosphate Battery 1Custom Lithium Battery System 51.2v350ah Lithium Iron Phosphate Battery 2Custom Lithium Battery System 51.2v350ah Lithium Iron Phosphate Battery 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
