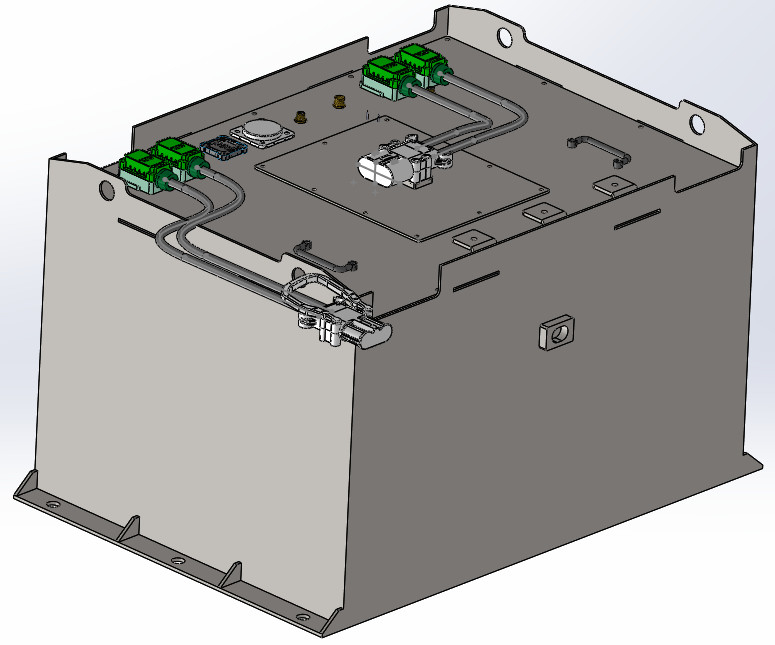

Customized 48v450ah Loader Battery 970mmx673mmx566mm

Customized 48v450ah Loader Battery 970mmx673mmx566mm

  • Customized 48v450ah Loader Battery 970mmx673mmx566mm
Customized 48v450ah Loader Battery 970mmx673mmx566mm
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 48V450Ah
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Rated Capacity: 450Ah Rated Voltage: 48V
Size Of Battery Pack: 970mm*673mm*566mm Weight Of Battery Pack: 330kg
Combination Mode: 3P15S High Resistance: ≧50MΩ(DC1000V)
Total Power Of Module: 21.6kwh Standard Cycle Life: ≥4000 Times 80%Capacity Retention
High Light:

48v450ah Loader Battery

,

48v lithium ion battery

,

Loader Battery 970mmx673mmx566mm

Customized 48v450ah loading vehicle lithium battery can replace diesel and lead-acid high-power lithium battery.

Technical Parameters



NO. Item Specification Remark
1 Size

970mm*673mm*566mm



/
2 Combination mode 3P15S /
3 Rated capacity 450Ah 25±2℃,1.0C
4 Nominal voltage 48V /
5 High resistance ≧50MΩ(DC1000V) 25±2℃
6 Weight ≈330kg /
7 Total power of module 21.6kwh /
8 Maximum charging voltage 54V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 40.5V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life

≥4000 times

80%Capacity retention

1C/1C 25℃




Product Description



1. This product is an EIKTO lithium iron phosphate battery module, which is made of 150Ah lithium iron phosphate batteries in series and in parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength;

2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;

3. Safety design: adopt high safety lithium iron phosphate material system;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.



Samples Show

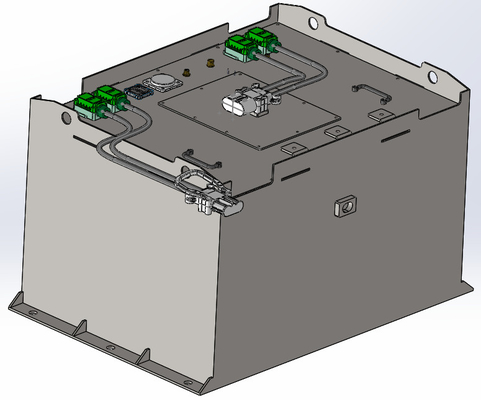

Customized 48v450ah Loader Battery 970mmx673mmx566mm 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.Customized 48v450ah Loader Battery 970mmx673mmx566mm 1Customized 48v450ah Loader Battery 970mmx673mmx566mm 2Customized 48v450ah Loader Battery 970mmx673mmx566mm 3
