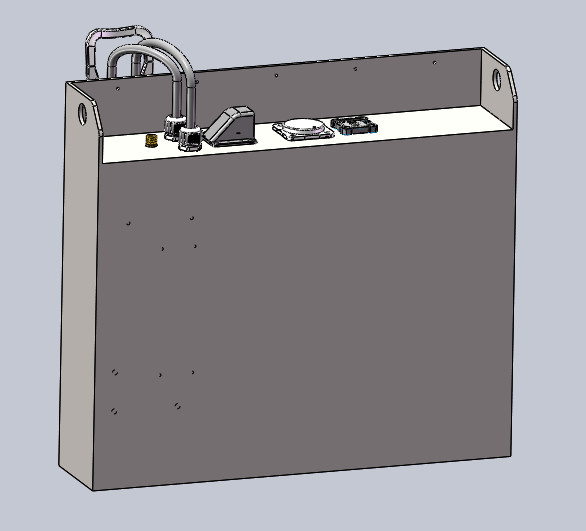

EIKTO Hob Machine Lithium Li-Ion Battery Pack 25.6v 150ah

EIKTO Hob Machine Lithium Li-Ion Battery Pack 25.6v 150ah

  • EIKTO Hob Machine Lithium Li-Ion Battery Pack 25.6v 150ah
EIKTO Hob Machine Lithium Li-Ion Battery Pack 25.6v 150ah
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CC-781
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: 25.6V150Ah
Rated Capacity: 150Ah Rated Voltage: 25.6V
Size Of Battery Pack: 660mm*145mm*590mm Weight Of Battery Pack: 139kg
High Light:

lithium li-ion battery pack

,

lithium lifepo4 battery 150ah

,

lithium li-ion battery pack 25.6v

25.6v150ah hob machine lithium battery, lithium iron phosphate battery

Technical Parameters



NO. Item Specification Remark
1 Size 660mm*145mm*590mm /
2 Combination mode 1P8S /
3 Rated capacity 150Ah 25±2℃,1.0C
4 Nominal voltage 25.6V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈139kg /
7 Total power of module 3.84kwh /
8 Maximum charging voltage 28.8V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 21.6V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃




Product Description



1. This product is the standard module of EIKTO 1p8s lithium iron phosphate battery, which is made of 150Ah lithium iron phosphate battery in series.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength, waterproof and dustproof grade IP54;

2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;

3. Safety design: high safety lithium iron phosphate material system is adopted, which makes charging fast and safe;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.

6. It has remote monitoring, real-time viewing of battery information, and remote upgrading of battery



Samples Show



EIKTO Hob Machine Lithium Li-Ion Battery Pack 25.6v 150ah 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.EIKTO Hob Machine Lithium Li-Ion Battery Pack 25.6v 150ah 1EIKTO Hob Machine Lithium Li-Ion Battery Pack 25.6v 150ah 2EIKTO Hob Machine Lithium Li-Ion Battery Pack 25.6v 150ah 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
