80v220ah Hob Battery Lithium Iron Phosphate Battery Li Ion Rechargeable Batteries

80v220ah Hob Battery Lithium Iron Phosphate Battery Li Ion Rechargeable Batteries

  • 80v220ah Hob Battery Lithium Iron Phosphate Battery Li Ion Rechargeable Batteries
80v220ah Hob Battery Lithium Iron Phosphate Battery Li Ion Rechargeable Batteries
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: EK-CP-0862
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated.
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: EK-CP-0862
Rated Capacity: 220Ah Rated Voltage: 80V
Size Of Battery Pack: 990mm*529mm*802mm Weight Of Battery Pack: 386kg
High Light:

220ah Hob Battery

,

220ah Li Ion Rechargeable Batteries

,

80v Hob Battery

80v220ah hob machine lithium ion battery pack, lithium iron phosphate battery.

Technical Parameters



NO. Item Specification Remark
1 Size 990mm*529mm*802mm /
2 Combination mode 2P25S /
3 Rated capacity 220Ah 25±2℃,1.0C
4 Nominal voltage 80V /
5 High resistance ≧50MΩ(DC500V) 25±2℃
6 Weight ≈386kg /
7 Total power of module 17.6kwh /
8 Maximum charging voltage 90V /
9 Maximum continuous charging current 1C 25±5℃
10 Discharge cut-off voltage 60V /
11 Maximum continuous discharge current 1C 25±5℃
12 Standard cycle life ≥4000 times 80%Capacity retention 1C/1C 25℃

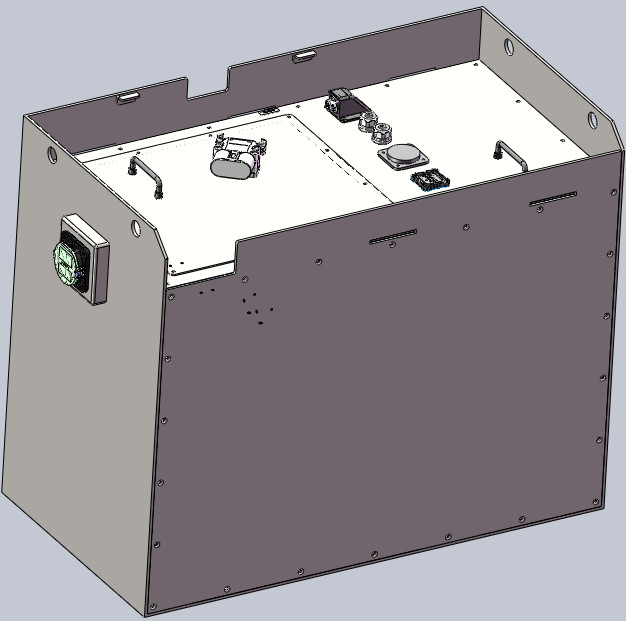

Product Description



1. This product is a standard module consisting of a 10 core 3-layer FCTP plus a 10 core 2-layer FCTP lithium iron phosphate battery, which is made of YJT40110413-110Ah lithium iron phosphate battery in series and parallel.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.

5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

6. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantages



1. Reliable structure: high anti vibration structure strength, waterproof and dustproof grade IP54;

2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;

3. Safety design: high safety lithium iron phosphate material system is adopted, which makes charging fast and safe;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.

6. It has remote monitoring, real-time viewing of battery information, and remote upgrading of battery



Samples Show



80v220ah Hob Battery Lithium Iron Phosphate Battery Li Ion Rechargeable Batteries 0



Application



The products are widely used in industrial vehicles, engineering vehicles and other fields.80v220ah Hob Battery Lithium Iron Phosphate Battery Li Ion Rechargeable Batteries 180v220ah Hob Battery Lithium Iron Phosphate Battery Li Ion Rechargeable Batteries 280v220ah Hob Battery Lithium Iron Phosphate Battery Li Ion Rechargeable Batteries 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
