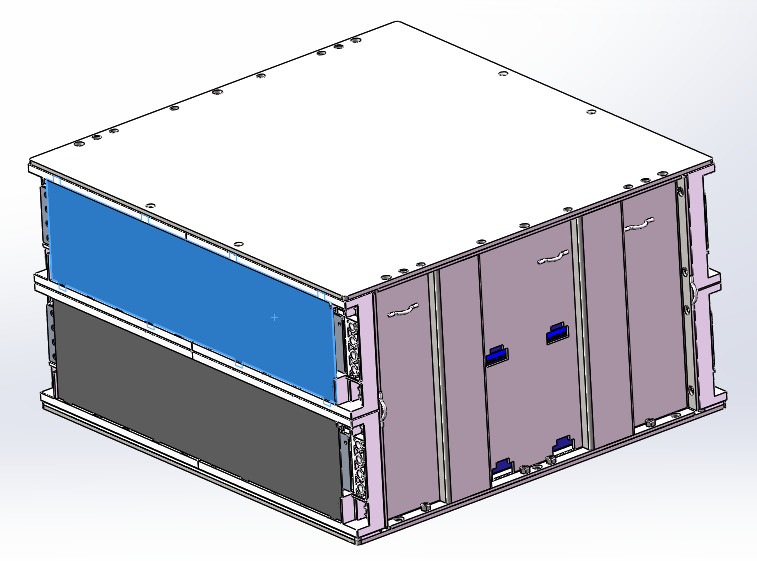

EIKTO Lithium Battery M20 Iron Module

EIKTO Lithium Battery M20 Iron Module

  • EIKTO Lithium Battery M20 Iron Module
EIKTO Lithium Battery M20 Iron Module
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 12.8V/32V64V150Ah
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: 12.8V/32V64V- 150Ah/300Ah/750Ah
Rated Capacity: 150Ah/300Ah/750Ah Rated Voltage: 64/32/12.8V
Battery Pack Size: 442.2mm*427.6mm*241.22mm Weight Of Battery Pack: 91KG

EIKTO Lithium Battery M20 Iron Module

Technical Parameter



NO. Project Performance Remarks
1 Dimensions 442.2mm*427.6mm*241.22mm /
2 Serial-parallel Connection 1P20S 2P10S 5P4S /
3 Rated Capacity 150Ah/300Ah/750Ah 25±2℃,1.0C
4 Nominal Voltage 64/32/12.8V /
5 Insulating Resistant ≧50MΩ(DC1000V) 25±2℃
6 Weight ≈91KG /
7 Module Capacity 9.6kWh /
8 Max. Charging Voltage 72/36/14.4V /
9 Max. Constant Charging Current 1C 25±5℃
10 Discharge cut-off Voltage 54/27/10.8V /
11 Max. Constant Discharging Current 1C 25±5℃
12 Standard Cycle Life ≥4000 times 80%Capacity retention 1C/1C 25℃




Product Description



1. This product is the standard module of EIKTO M20(cells) lithium iron phosphate battery, which is made of YJT40110413-150Ah lithium iron phosphate battery in serial-parallel connection.

2. Laser welding is performed between batteries using iron connectors.

3. The iron material is used as the shell to stabilize the module, which has high structural strength.

4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

5. The module has the advantages of light weight, strong stability, high safety and long cycle life.



Product Advantage



1. Reliable structure: high anti vibration structure strength;

2. Controllable process: no over welding and faulty welding, ensuring 100% battery non-damage;

3. Safety design: adopt safety lithium iron phosphate material system;

4. Good module stability: strict cell matching conditions, good cell consistency;

5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.



Product Display



EIKTO Lithium Battery M20 Iron Module 0EIKTO Lithium Battery M20 Iron Module 1



Application



The products are widely used in the field of industrial vehicles

EIKTO Lithium Battery M20 Iron Module 2EIKTO Lithium Battery M20 Iron Module 3EIKTO Lithium Battery M20 Iron Module 4



Packaging & Delivery


1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
