Place of Origin: | Anhui China |
Brand Name: | EIKTO |
Certification: | CE/UL/UN38.3/SDS |
Model Number: | 83.2V300Ah |
Minimum Order Quantity: | One piece |
---|---|
Price: | Negotiable |
Packaging Details: | Standard safety industrial packaging |
Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated |
Payment Terms: | EFT |
Supply Ability: | +9999 |

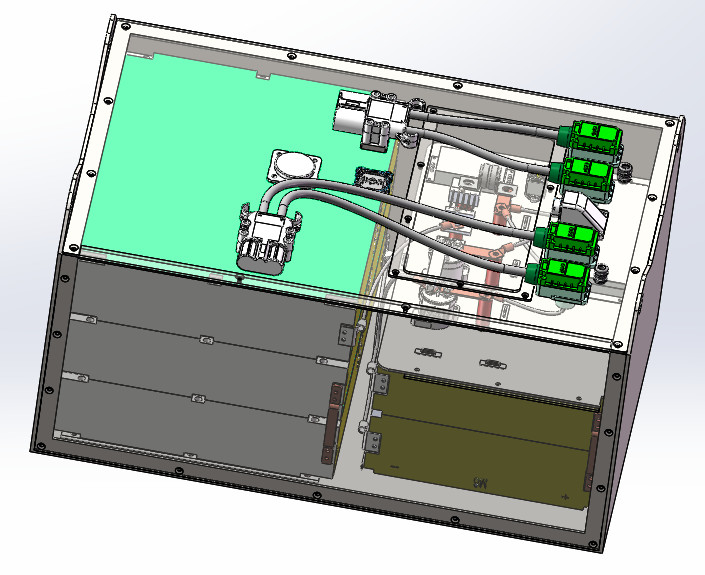

Product Name: | MSDE2 Standard Lithium Iron Phosphate Battery Pack Without Counterweight | Product Model: | EIKTO MSDE2 Standard Battery Pack Without Counterweight |
---|---|---|---|
Rated Capacity: | 300Ah | Rated Voltage: | 83.2V |
Battery Pack Size: | 883mm*580mm*450mm | Weight Of Battery Pack: | 305KG |
High Light: | Standard Forklift Lithium Battery,83.2V 300Ah forklift truck batteries,MSDE2 Forklift Lithium Battery |
NO. | Project | Performance | Remarks |
1 | Dimensions | 883mm*580mm*450mm | / |
2 | Serial-parallel Connection | 2P26S | / |
3 | Rated Capacity | 300Ah | 25±2℃,1.0C |
4 | Nominal Voltage | 83.2V | / |
5 | Insulating Resistant | ≧80mΩ(DC1000V) | 25±2℃ |
6 | Weight | ≈305kg | / |
7 | Module Capacity | 249.6kwh | / |
8 | Max. Charging Voltage | 93.6V | / |
9 | Max. Constant Charging Current | 0.75C | 25±5℃ |
10 | Discharge cut-off Voltage | 70.2V | / |
11 | Max. Constant Discharging Current | 1C | 25±5℃ |
12 | Standard Cycle Life | ≥3000 times 80%Capacity retention | 1C/1C 25℃ |
1. The MSDE2 is a standard battery pack has no counterweight facing export.it is the smallest size battery pack under the capacity of this specification
2. This battery pack is an M12 aluminum module and M8 aluminum module independently developed by EIKTO.It’s serial-parallel connected, Through BMS and other related electrical components to achieve various control needs of customers' forklifts, the battery pack has a certain waterproof performance, and can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
3. The internal structure is made of many refractory materials, which greatly reduces the risk of the battery. The battery pack has the advantages of light weight, strong stability, high safety, long cycle life and multiple functions.
1. Reliable structure: excellent structural layout makes the battery pack structure;
2. Electrical reliability: reasonable electrical layout makes the battery pack function stable;
3. Safety design: many fire-retardant and other safety layouts are arranged inside the system, and high safety lithium iron phosphate material system is adopted;
4. It can realize multiple functions: various functions can be customized according to customer needs.
The products are widely used in the field of industrial vehicles
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
