Toyota Forklift Lithium Iron Battery System 51.2V 300Ah

Toyota Forklift Lithium Iron Battery System 51.2V 300Ah

  • Toyota Forklift Lithium Iron Battery System 51.2V 300Ah
Toyota Forklift Lithium Iron Battery System 51.2V 300Ah
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 51.2V300Ah
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated
Payment Terms: EFT
Supply Ability: +9999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery Product Model: 51.2V300Ah
Rated Capacity: 300Ah Rated Voltage: 51.2V
Dimensions Of Battery Pack: 956mm*372mm*565mm Weight Of Battery Pack: 465kg
High Light:

Toyota Forklift Lithium Iron Battery


300Ah Lithium Battery


Lithium Iron Battery System 51.2V

Toyota Forklift Lithium Iron Battery System 51.2V 300Ah

Technical Parameter


NO. Project Performance Remarks
1 Dimensions 956mm*372mm*565mm /
2 Serial-parallel Connection 2P16S /
3 Rated Capacity 300Ah 25±2℃,1.0C
4 Nominal Voltage 51.2V /
5 Insulating Resistant ≧50MΩ(DC500V) 25±2℃
6 Weight ≈465kg /
7 Module Capacity 15.36kwh /
8 Max. Charging Voltage 57.6 /
9 Max. Constant Charging Current 1C 25±5℃
10 Discharge cut-off Voltage 38.4 /
11 Max. Constant Discharging Current 1C 25±5℃
12 Standard Cycle Life ≥4000 times 80%Capacity retention 1C/1C 25℃

Product Description


1.Lithium iron phosphate battery Lithium iron phosphate module 3.2v150Ah Square aluminum enclosure Heating system

2.This lithium iron phosphate battery is a standard module consists of 8-cells, which is made of YJT40110413-150Ah lithium iron phosphate battery in serial-parallel mode

Laser welding is performed between batteries using iron connectors.

3.The iron material is used as the shell to stabilize the module, which has high structural strength.

4.The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

5.The module has the advantages of light weight, strong stability, high safety and long cycle life.


Product Advantage


1. The box is waterproof IP54, and the structure is firm

2. Reliable electrical performance to meet long-time work

3. Fast charging, safe and reliable;

4. It has remote monitoring and real-time viewing of battery information


Product Display

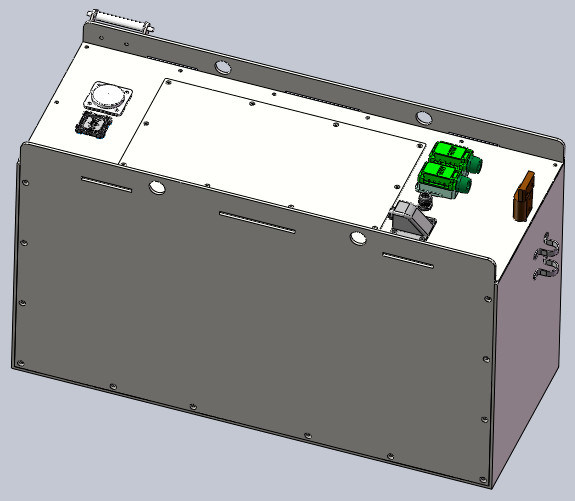

Toyota Forklift Lithium Iron Battery System 51.2V 300Ah 0




The products are widely used in the field of industrial vehicles

Toyota Forklift Lithium Iron Battery System 51.2V 300Ah 1Toyota Forklift Lithium Iron Battery System 51.2V 300Ah 2Toyota Forklift Lithium Iron Battery System 51.2V 300Ah 3
